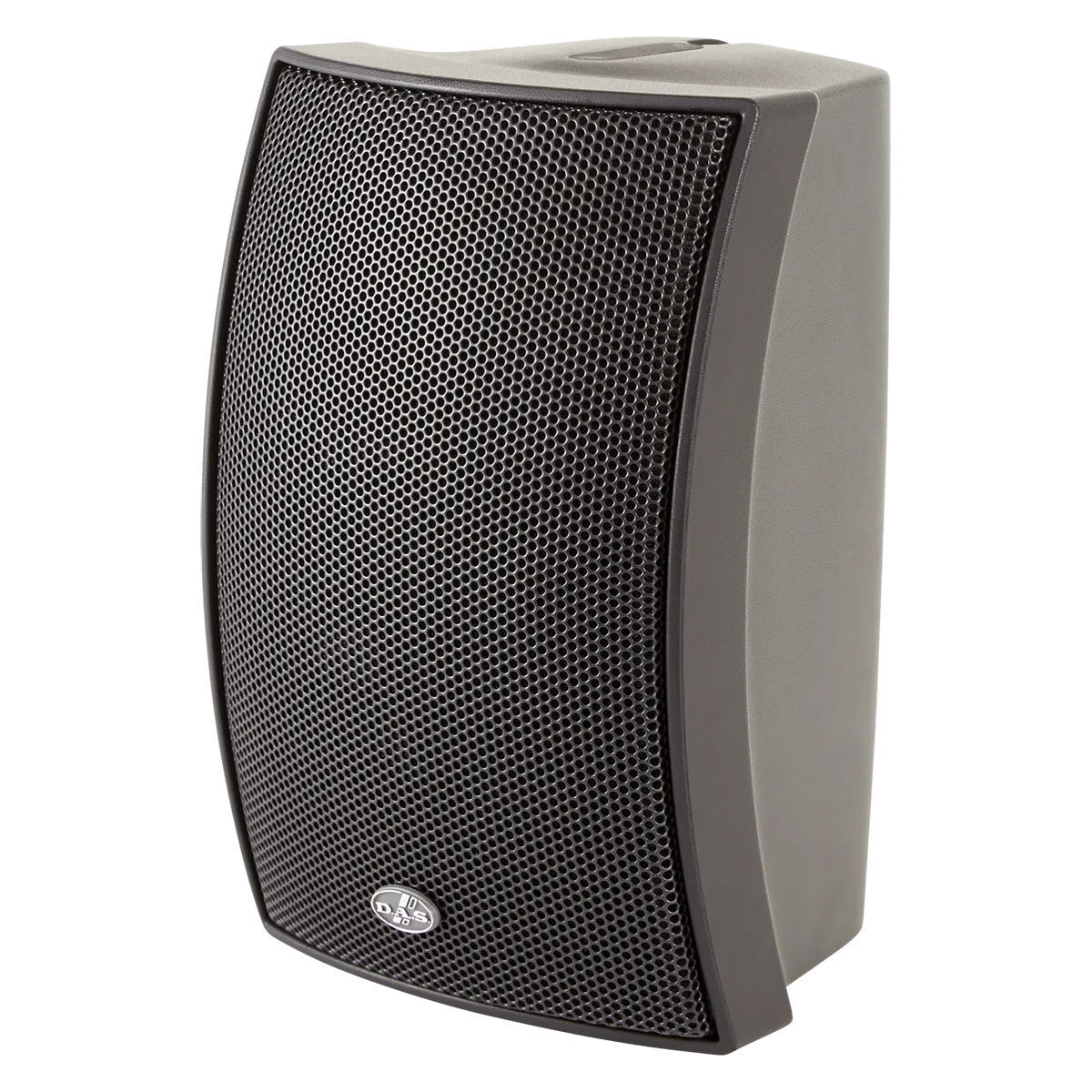

DAS ARCO-4-T Speaker Dinding Pasif 4 Inch 2 Way 8 Ohm 200 Watt (High Impedance, Waterproof)
DAS ARCO-4-T Speaker Dinding Pasif 4 Inch 2 Way 8 Ohm 200 Watt (High Impedance, Waterproof) - Image 2

DAS ARCO-4-T Speaker Dinding Pasif 4 Inch 2 Way 8 Ohm 200 Watt (High Impedance, Waterproof)

Passive, 50 W, 4″, 2 way full-range, ABS enclosure, 70 V/100 V line transformer, black

Chat Penjual
Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:
Das
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

The Arco-4T incorporates a 4″ woofer with weather resistant polypropylene cone. High frequency reproduction is handled by a 19 mm neodymium dome tweeter for brilliant highs. An Overload Safety Circuit protects the speakers from damage in case of overpowering. The “T” versions include a multi tap transformer with variable settings including an 8 ohm bypass position.
IP 54 kits for outdoor use are available.

Performance
Frequency Range (-10 dB) 72 Hz – 22 kHz
Horizontal Coverage (-6 dB) 90º
Vertical Coverage 90º
Nominal Impedance 8 ohms
Transformer Taps 70 V 2.5 W-5 W-7.5 W
Transformer Taps 100 V 5 W-10 W-15 W
RMS Power Handling 50 W
Peak Power Handling 200 W
On-axis Sensitivity 1W/1 m 86 dB SPL
Maximum Peak SPL at 1 m 109 dB
Recommended Amplifier INTEGRAL-A402
INTEGRAL-A404
Recommended Processor INTEGRAL-M88
INTEGRAL-MA1604
INTEGRAL-MA1004

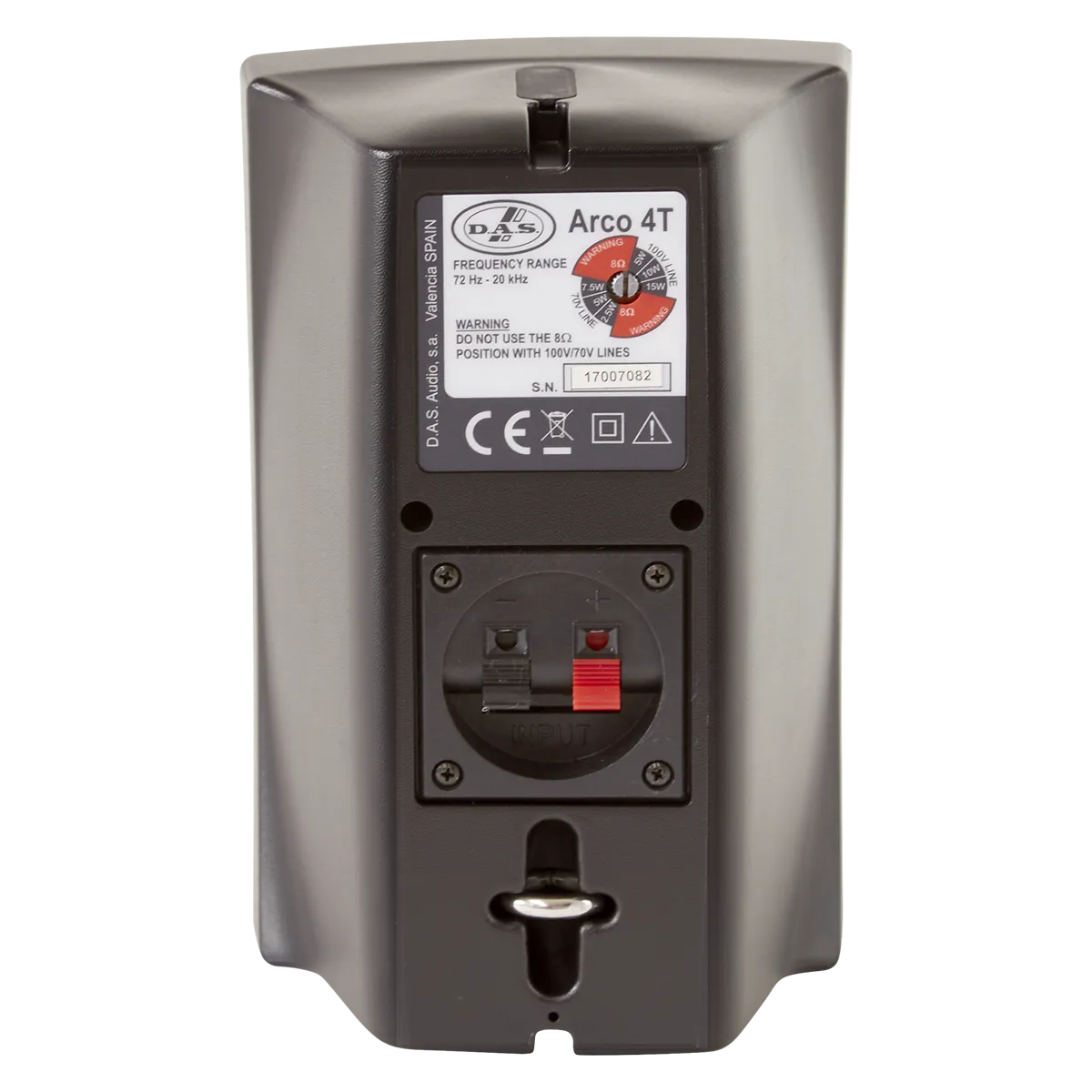

Connectors
Audio Input Connector Spring Terminals
Audio Output Connector Spring Terminals
Enclosure
Enclosure Construction High Impact ABS
Enclosure Geometry Trapezoidal
Color Black
Depth 140 mm (5,5 in)
Dimensions ( H x W x D ) 210 x 135 x 140 mm
8,3 x 5,3 x 5,5 in
Net Weight 1,6 kg ( 3,5 lb )
Components
LF Driver 4G
HF Driver TWT-4
Shipping
Carton Dimensions ( H x W x D ) 325 x 330 x 170 mm
12,8 x 13,0 x 6,7 in
Shipping Weight 2,2 kg ( 4,9 lb )
