DAS AERO-40A Speaker Line Array Aktif 12 Inch 3 Way 4000 Watt

Description

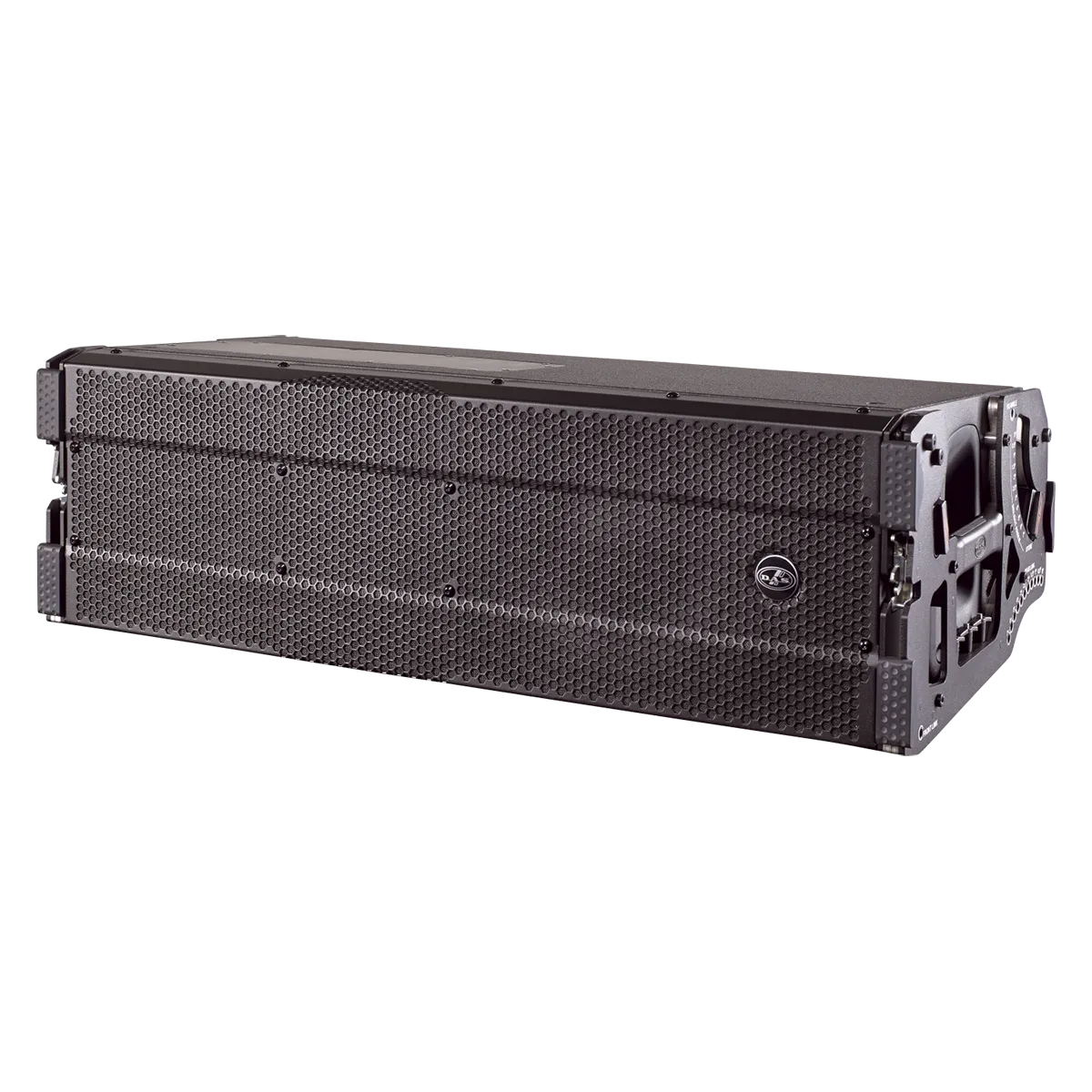

The AERO-40A is a 3-way powered line array system which incorporates connectivity for remote monitoring and control. The unique configuration of the AERO-40A Advanced Line Array System (ALAS™) incorporates a rear-loaded 12” transducer in a bass-horn configuration for low-end reproduction. The mid-range is handled by an new 8” transducer developed specifically for the AERO-40A. High frequency reproduction relies on two DAS M-75N compression drivers attached to a new BPS-2912 waveguide.
The three channel, high efficiency Class D amplifier design is equipped with a switch mode power supply (SMPS) and a comprehensive protection package for both the amplifier as well as the components. Channel one powers the low frequency way, channel two the mid-range with channel three powering the high frequency drivers. The AERO-40A incorporates the latest in digital signal processors. Brick wall FIR filters provide perfect alignment between ways achieving exceptionally uniform coverage all the way down to the crossover point.

Top-of-the-line AD/DA converters have been employed allowing for significant improvements in dynamics, lower distortion and ultra-low noise levels. Remote monitoring and control is provided by way of DASnet™, the audio management application for DAS powered cabinets and processors which offers users instant and intuitive view of the system status as well as control over a range of parameters of a single cabinet or a network of them.

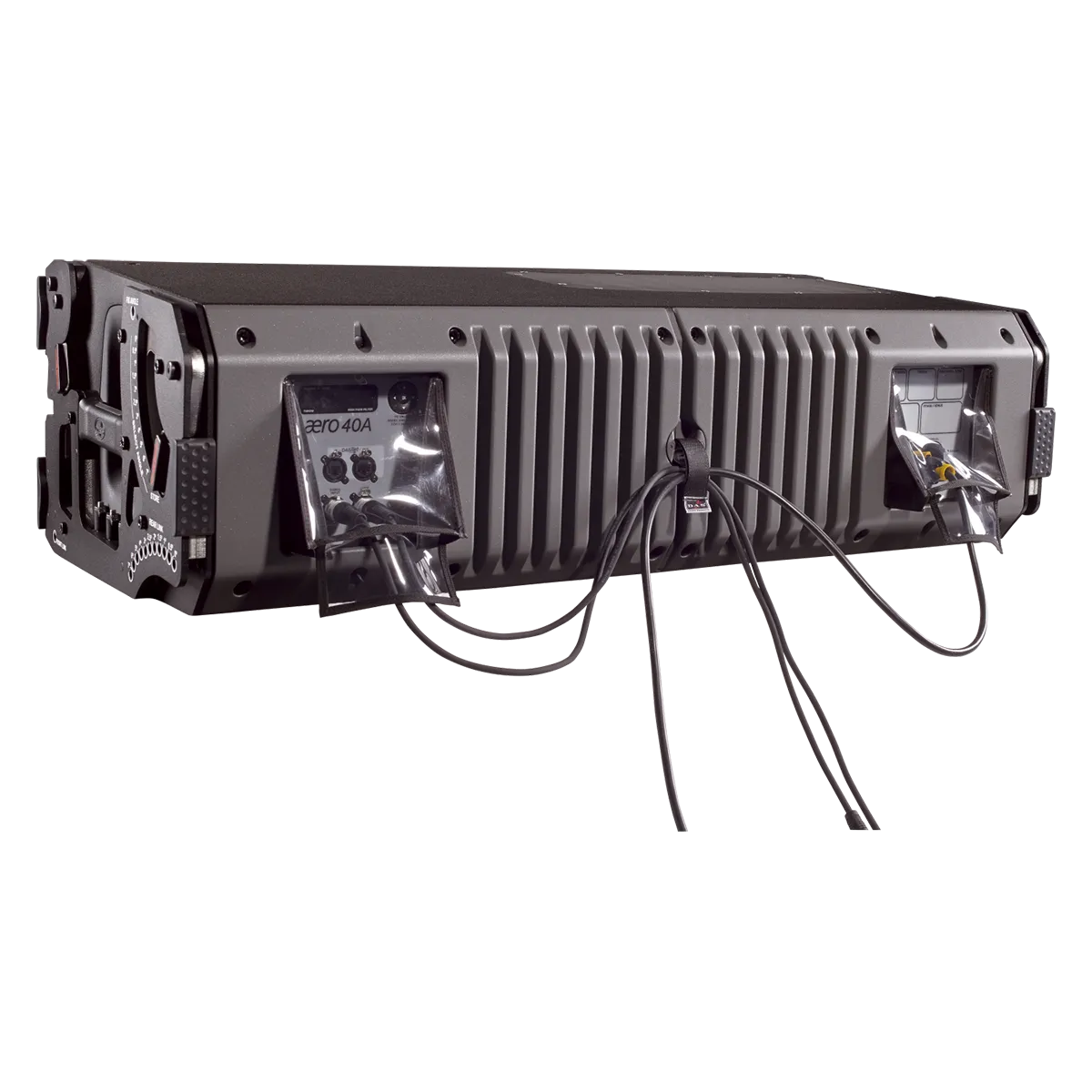

The AERO-40A has been constructed using birch plywood and finished with the ISO-flex black paint it offers excellent protection and durability. Three individual assemblies comprising the high frequency waveguide, the horn device for the 8” mid-range and the carrier for the 12” woofer are made from injection molded aluminum and attached to the front of the cabinet. A two-piece injected aluminum heat sink housing the amplifier and related electronics is attached to the rear of the cabinet. To provide both strength and resistance to corrosion, stainless steel has been used for the fasteners and major parts of the new rigging system.

• SPL Max: 138 db
• Dispersion: 90º
• Weight: 78,0 kg ( 172,0 lb )
