DAS AERO-20A Speaker Line Array Aktif 12 Inch 2 Way 2400 Watt
Powered, 800 W (LF)+400 W (HF), 12″, 2 way full-range, compact Line Array, DASnet, black
100% ORIGINAL
HARGA Kompetitif
GARANSI Resmi
AFTERSALES Service
Description
The AERO-20A is a compact line array system which incorporates the ALAS™ philosophy and draws from the astounding success of the “all purpose” capabilities of the AERO-12A, launched in 2009. The powered AERO-20A incorporates DAS´s latest technical achievements in transducer design, power electronics and system management.
The low-mid range incorporates a DAS 12″ loudspeaker optimized to provide high output and reliability. A light aluminum voice coil bonded to a new fiberglass reinforced cone, an optimized magnet circuit, and a new suspension design have contributed significantly to the exceptional performance of the 12AN4 in terms of distortion, power handling and maximum SPL.
High frequency response relies on a compression driver-waveguide assembly developed for the AERO-20A. The M-75N compression driver employs a powerful neodymium magnet structure, a titanium diaphragm and 75 mm (3″) voice coil. A reengineered mounting system which tightens internal tolerances along with a new shorting ring design have increased the power handling capacity of the driver. The M-75N is attached to a new aluminum waveguide that has been designed to be free of resonances and provide a natural sound.

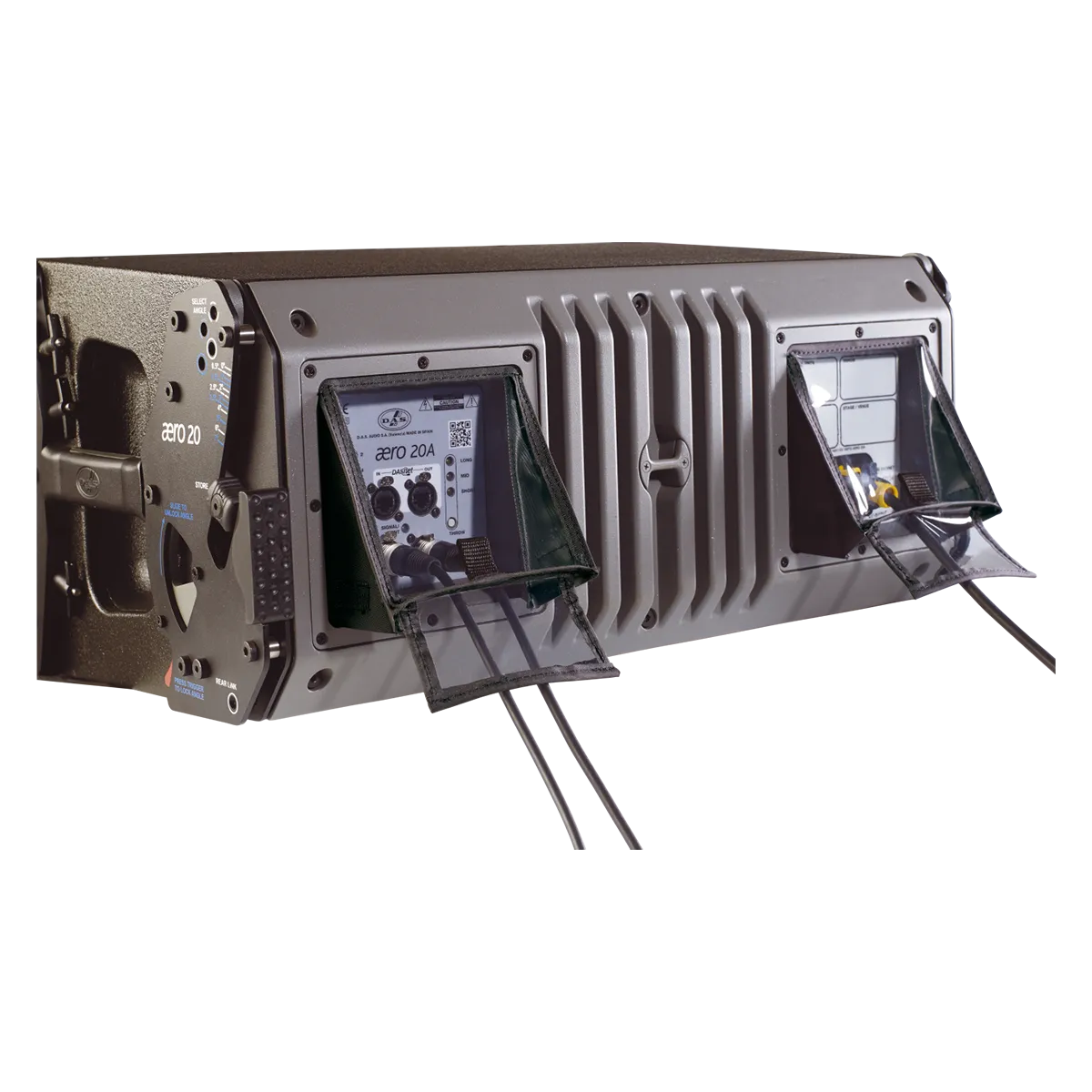

The AERO-20A is constructed using birch plywood and finished with the ISO-flex coating offering excellent protection and durability. Two injected aluminum assemblies attached to the front of the cabinet comprise the high frequency waveguide and the carrier for the 12” woofer. The assemblies also dissipate heat from the components, controlling power compression. An injected aluminum heat sink housing the amplifier and related electronics is attached to the rear of the cabinet.

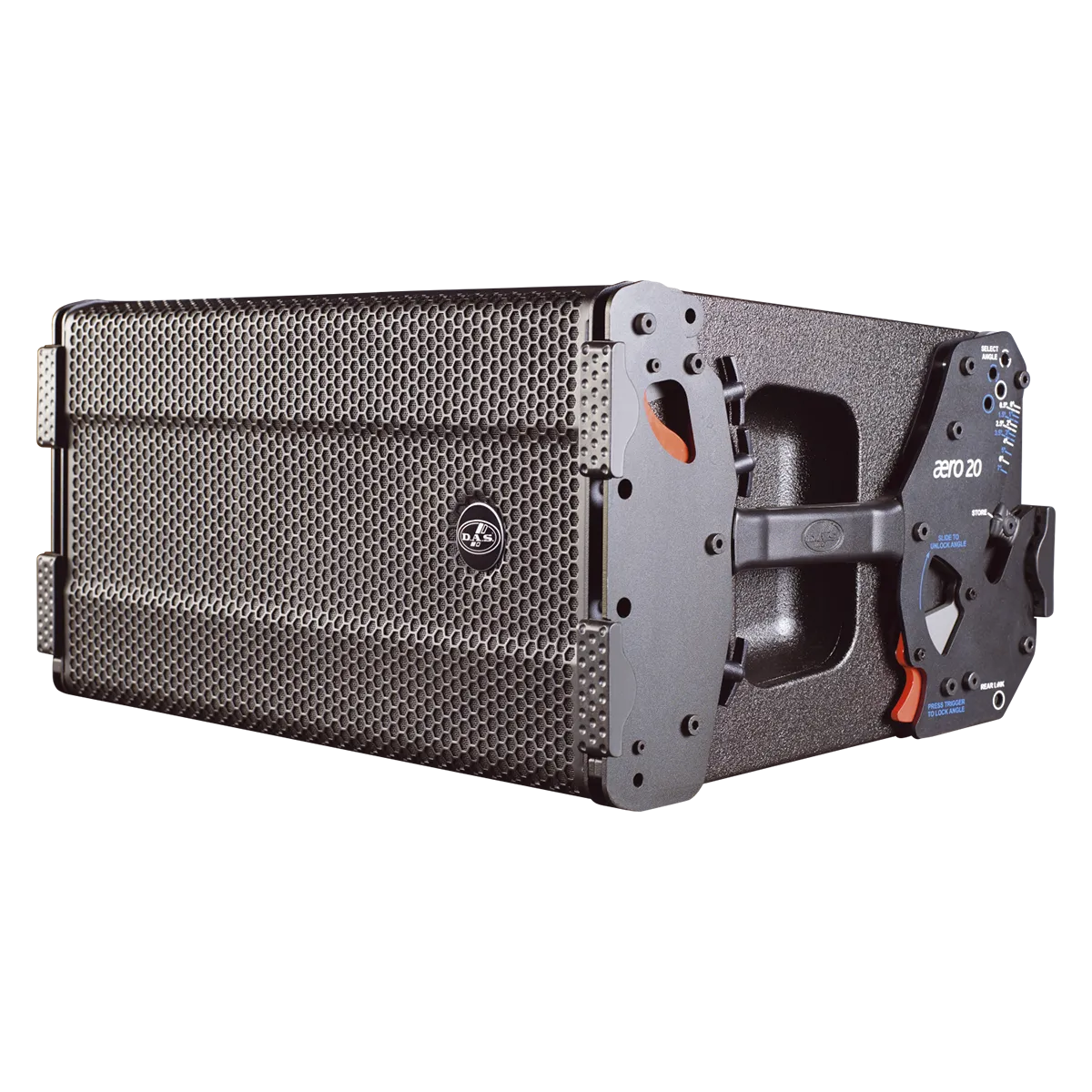

A new captive rigging mechanism enhances ease-of-use by allowing angle selection to be made while stacked on the transport dolly. A locking system can be triggered securing angles between adjacent enclosures during the stacking and lifting procedures.
Features
800 W LF + 400 W HF Class D amplifier
DASnet™ remote monitoring and control capable
Quick rig system for easy rigging/stacking
1 x 12″ 12AN4 neodymium loudspeaker
1 x M75N neodymium compression driver
FEA optimized HF waveguide
Applications
House of worship
Theatres, auditoria and performing arts centers
Live music clubs
Corporate A/V
Live sound touring/Rental services
| Performance | |
| Frequency Range (-10 dB) | 60 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 90º |
| Vertical Coverage | Splay Dependent |
| Maximum Peak SPL at 1 m | 136 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power LF (continuous) | 800 W |
| Nominal Amplifier Power LF (peak) | 1600 W |
| Nominal Amplifier Power HF (continuous) | 400 W |
| Nominal Amplifier Power HF (peak) | 800 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 4.9 V (+16 dBu) |
| Audio Signal Input Connector | 1 x Female XLR |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| Audio/Data Input Connector | etherCON |
| Control | DASnet™ |
| Audio + Data Loop Thru Connector | etherCON |
| AC Output Connector | powerCON TRUE1 |
| Current Draw 230 V / 115 V | 1.8 A/3.6 A |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | Captive Rigging System |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 320 x 650 x 445 mm 12,6 x 25,6 x 17,5 in |
| Net Weight | 33,0 kg ( 72,8 lb ) |
| Components | |
| LF Driver | 12AN4 |
| HF Driver | M-75N |
| Horn/Waveguide | BPS-1912 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 373 x 720 x 495 mm 14,7 x 28,4 x 19,5 in |
| Shipping Weight | 35,0 kg ( 77,2 lb ) |
| Package Includes | TEST package EN |
