Crest Audio Pro 7200 Power Amplifier 2 Channel Class H 590 Watt
Professional Touring Power Amplifier
Description
Crest Audio® Pro™ 200 Series amplifiers are designed to achieve unsurpassed sonic performance and long-term reliability under extreme stress in touring or fixed installation applications.
Absolute sonic accuracy is the hallmark of every Crest amplifier. Bass is solid and defined to the limits of audibility with ample current reserves. Wide-bandwidth output devices ensure detailed, transparent high frequency response. And, thanks to Crest’s exclusive IGM™ circuit, the Pro 200 Series will drive 2 Ω loads safely without compromising performance.
Features Pro 7200
• 1650 Watts @ 2 Ω per channel
• 1000 Watts @ 4 Ω per channel
• 590 Watts @ 8 Ω per channel
• 2000 Watts @ 8 Ω bridged
• 3300 Watts @ 4 Ω bridged
• Dramatically reduced net weight
• Latest generation of high speed, wide-bandwidth output devices
• Dual, variable speed fans

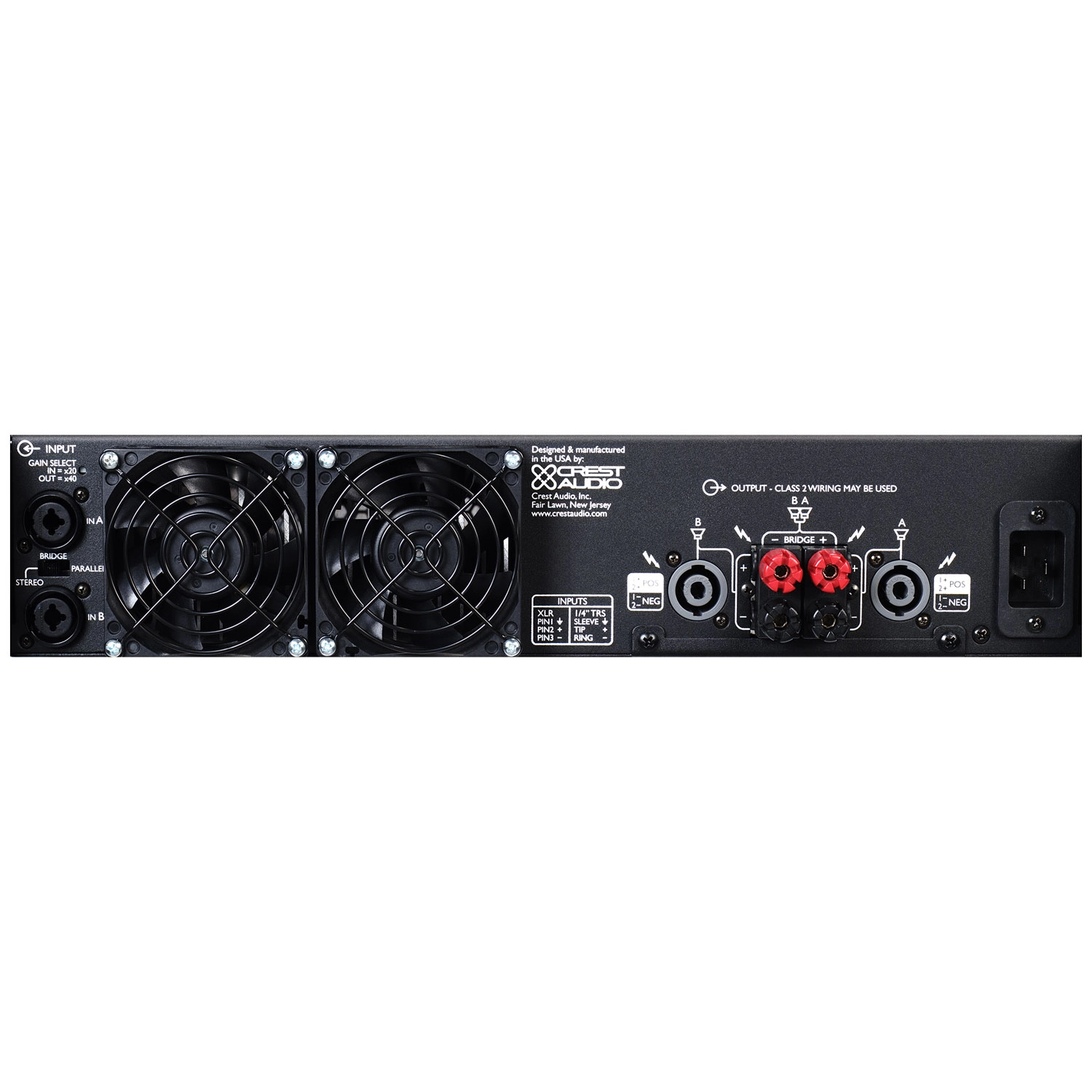

• Balanced XLR inputs
• Neutrik® Speakon® and 5-way binding post speaker outputs
• Mode selector switch for stereo, parallel and bridged-mono operation
• Input sensitivity selection
• Recessed, stepped attenuators
• Front panel circuit – breaker switch
Specification
| Channels (Input) |
2 |
|---|---|
| Channels (Output) |
2 |
| Power per Channel @ 2 Ω |
1,650 W |
| Power per Channel @ 4 Ω |
1,000 W |
| Power per Channel @ 8 Ω |
590 W |
| Power per Channel @ 4 Ω Bridged |
3,300 W |
| Power per Channel @ 8 Ω Bridged |
2,000 W |
| Topology |
Class H |
| Minimum Load Impedance |
2 Ω |
| Frequency Response |
-2 dB, 10 Hz – 100 kHz; +0 |
| Input Connectors |
2 x XLR-1/4″ Combo |
| Output Connectors |
2 x Neutrik® Speakon® NL4 & 2 x Binding Post |
| Color | |
| Rack Mount (19″) |
Yes (2U) |
| Net Weight |
24.0 lbs (10.90 kg) |
| Product Height |
3.50″ (89 mm) |
| Product Width |
19.00″ (483 mm) |
| Product Depth |
13.75″ (349 mm) |
| AC Power Input |
120VAC 60 Hz & 230VAC 50 Hz version available |
| SKU |
01000580 |
