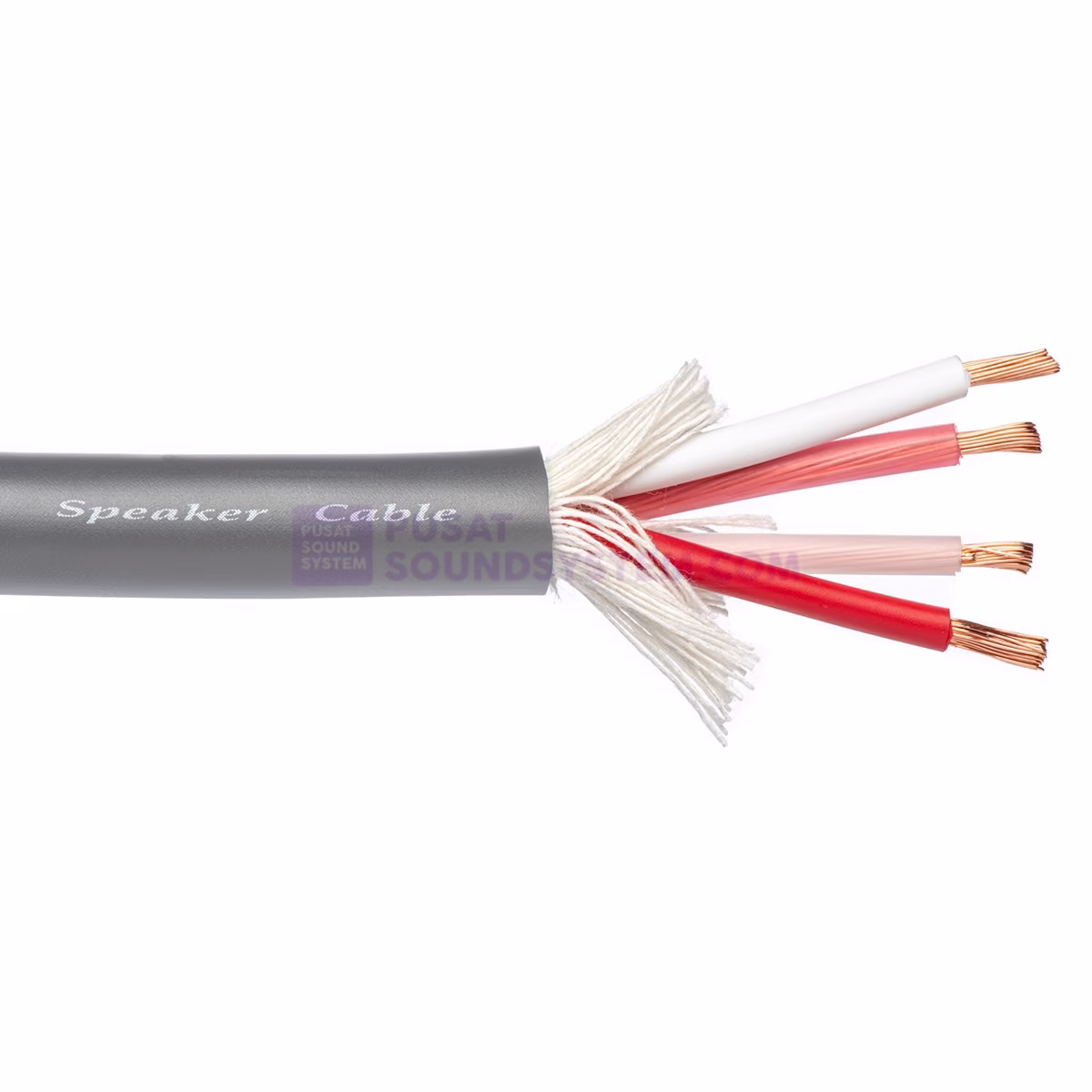

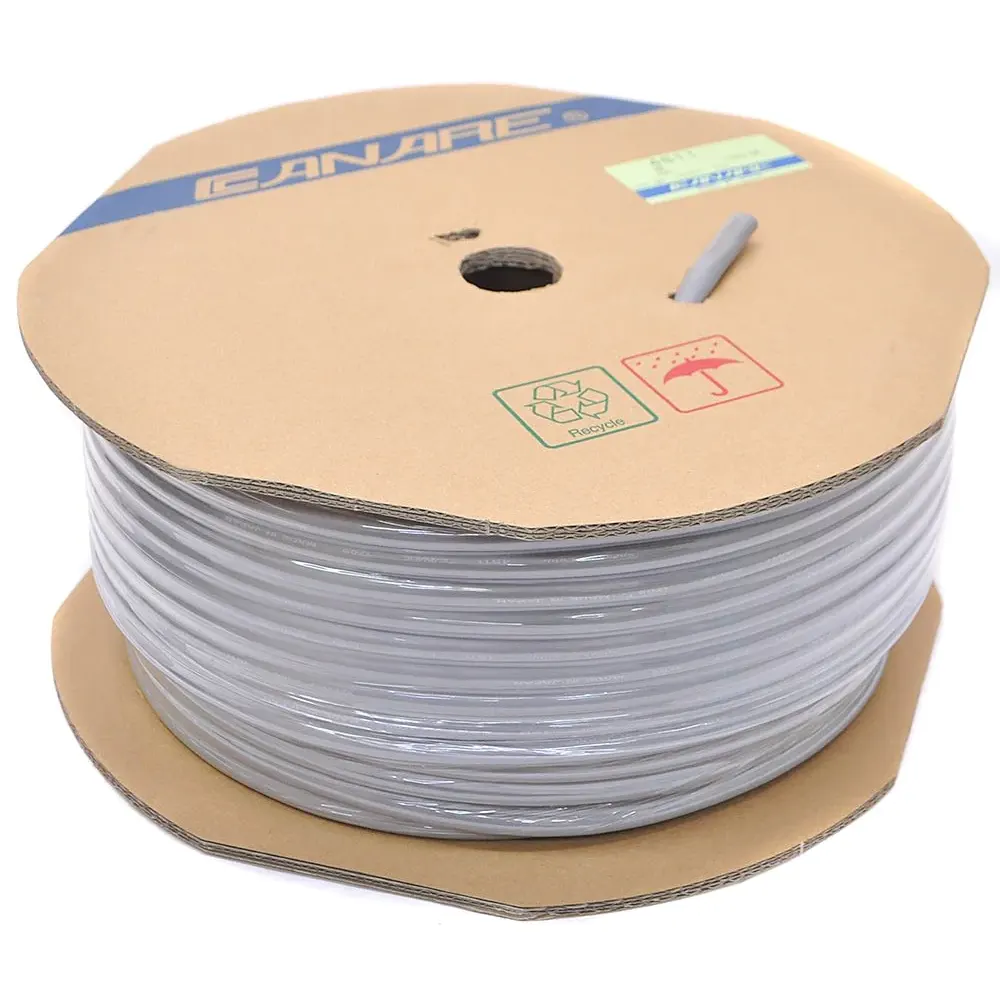

Canare 4S11 Star Quad 14AWG 4-Conductor Speaker Cable
Canare 4S11 Star Quad 14AWG 4-Conductor Speaker Cable - Image 2

Canare 4S11 Star Quad 14AWG 4-Conductor Speaker Cable

Star Quad 14AWG 4-Conductor Speaker Cable

Chat Penjual
Category: Tag: Brand:
CANARE
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

Recommended for long runs and low end Power Amplifier sub-woofer systems. Heavy duty 4 x 14 AWG conductors.

Features

  • Super Flexibility, even in Sub-Zero Weather
  • Star Quad Design Reduces EMI Noise
  • Low Capacitance and Resistance



Specifications

  • Std. Lng. ft. (m): 656 (200)
  • Wt Std. Lng. lbs (kgs): 70 (32)
  • Nom. O.D. in. (mm): .421 (10.7)
  • PVC Jacket Nom. Thick. in. (mm): .047 (1.2)
  • Brittle Point F (C): -56 (-49)
  • No. of Cond.: 4
  • Insul. Type* Thick mil: PE 27.6
  • Cond-AWG (Qty./mil) Cross Sec. Area mil.2 Twin Cond. AWG**: AC-#14 (41/10.24) 3379 #11
  • Pitch of Quad in. (mm):
  • Shield Coverage: –
  • Electrical Performance/Quad Wired:
  • Cond. D.C.R. ohm/1000ft (ohm/100m): 2.6 (0.9)
  • Nom. Cap. *** pF/ft (pF/m): 45 (146)
  • *Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
  • **Effective AWG of combined twin conductors.
  • ***Capacitance between twin Red and twin White conductors.



Applications

  • PA Systems
  • Hi-Fi Speakers
  • DC Power Lines
