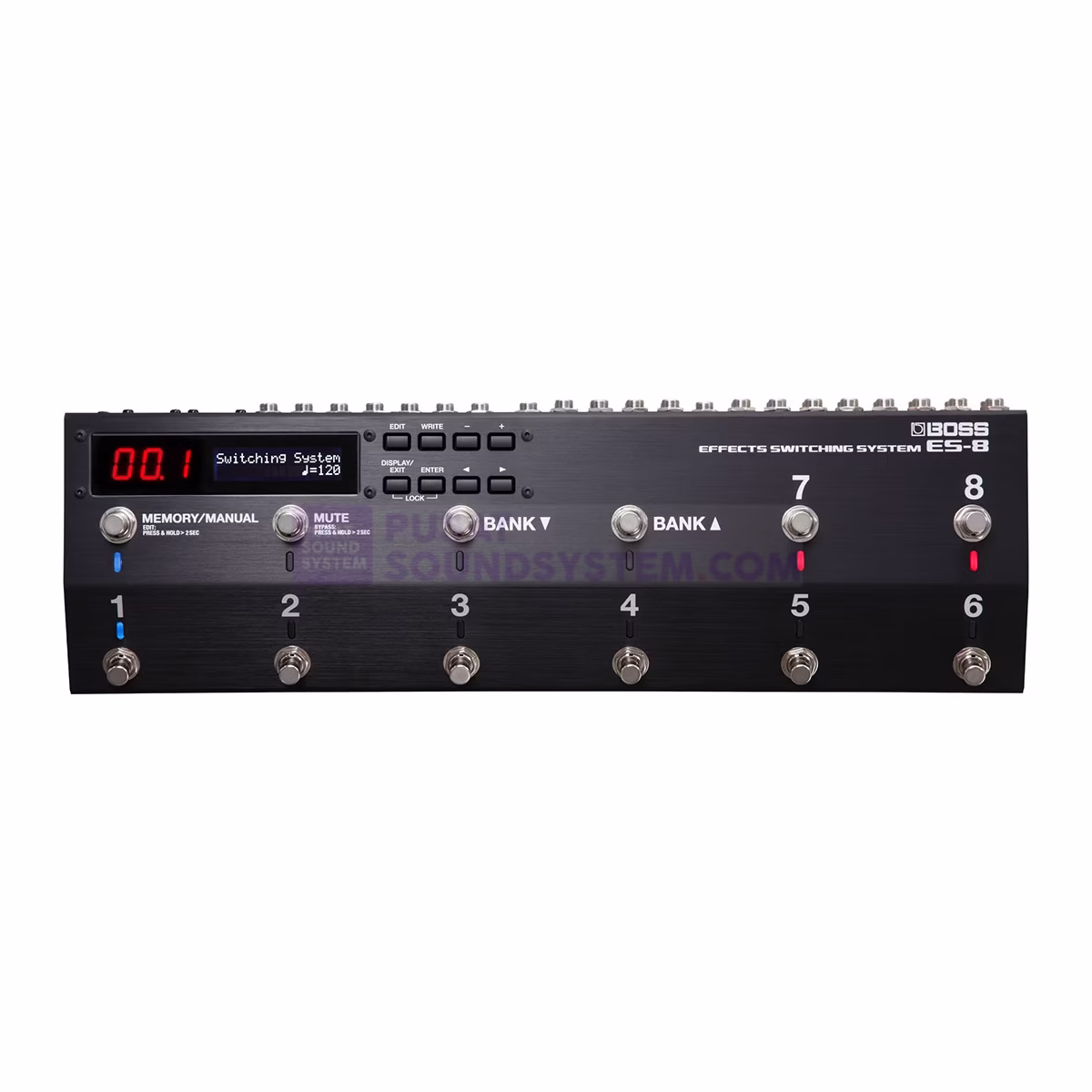

Boss ES-8 Effects Switching System
Programmable Effects Switching System with 8 Loops, 800 Patch Memories, Customizable Functions, Switchable Buffers, LCD/LED Displays, and Analog Circuit Design
Description
The BOSS ES-8 is a revolutionary effects switching system that provides you with a host of often-requested features and functions. You have access to eight loops, allowing you to craft elaborate effects chains with unprecedented routing flexibility. The ES-8’s onboard memory allows you to store 800 patches, along with external control parameters such as delay time for each patch. And best of all, the ES-8 utilizes an analog circuit to keep your tone clean and pure. If that wasn’t enough, you also get switchable buffers, LCD and 7-segment LED displays, and completely customizable pedal function assignments!
Boss ES-8 Features
- Programmable switching system with eight loops (plus an additional loop)
- Analog circuit design to protect your pure tone
- Unprecedented routing flexibility with the ability to change the routing order and create parallel effect chains
- Onboard memory for storing external control parameters such as delay time for each patch
- Buffers can be turned on/off individually each for input and output and stored in each patch; level variability for output buffer
- Highly-reliable footswitches with switch-noise mute capability
- LCD and 7-segment LED display show detailed information at a glance
- 800 patch memories provide unmatched capability for touring musicians
- Completely customizable pedal function assignments
- Scratching the itch of serious working musicians with detailed attention to often-requested features and functions
- Version 2.00 and dedicated editor software available
Spesifikasi
| Connections | In 1&2 Jacks: 1/4″ / 6.35 mm Send 1–7, Send 8L, Send 8R, Send Volume Jacks: 1/4″ / 6.35 mm Return 1–6, Return 7L, Return 7R, Return 8L, Return 8R, Return Volume Jacks: 1/4″ / 6.35 mm Out 1/L, Out 2/R Jacks: 1/4″ / 6.35 mm Tuner Jack: 1/4″ / 6.35 mm External Control – CTL 1/2, CTL 3/4, CTL 5/6 Jacks: 1/4″ / 6.35 mm TRS External Control – EXP 1, EXP 2 Jacks: 1/4″ TRS Control In – EXP 1 CTL 1/2, EXP 2 CTL 3/4 Jacks: 1/4: / 6.35 mm TRS MIDI Connectors: In, Out/Thru DC IN jack |
| Loops | 8 (Effect loop) 1 (Volume loop) |
| Patch Memory | 800 |
| Pedals | 8x Number switch 2x Bank switch Memory/Manual switch Mute switch |
| Nominal Input Level | -10 dBu |
| Input Impedance | Input 1 & 2: 1 Mohms |
| Nominal Output Level | -10 dBu |
| Output Impedance | Out 1/L, Out 2/R, Tuner: 1 kOhms or greater |
| Recommended Load Impedance | 10 kOhms or greater |
| Display | 7 segments, 3 characters (LED) |
| Power Supply | AC adapter |
| Current Draw | 400 mA |
| Dimensions (W x D x H) | 17.3 x 5.4 x 2.6″ / 439.0 x 137.0 x 65.0 mm |
| Weight | 5.5 lb / 2.5 kg |
Packaging Info
| Package Weight | 7.55 lb |
| Box Dimensions (LxWxH) | 21.3 x 9.2 x 6.6″ |
