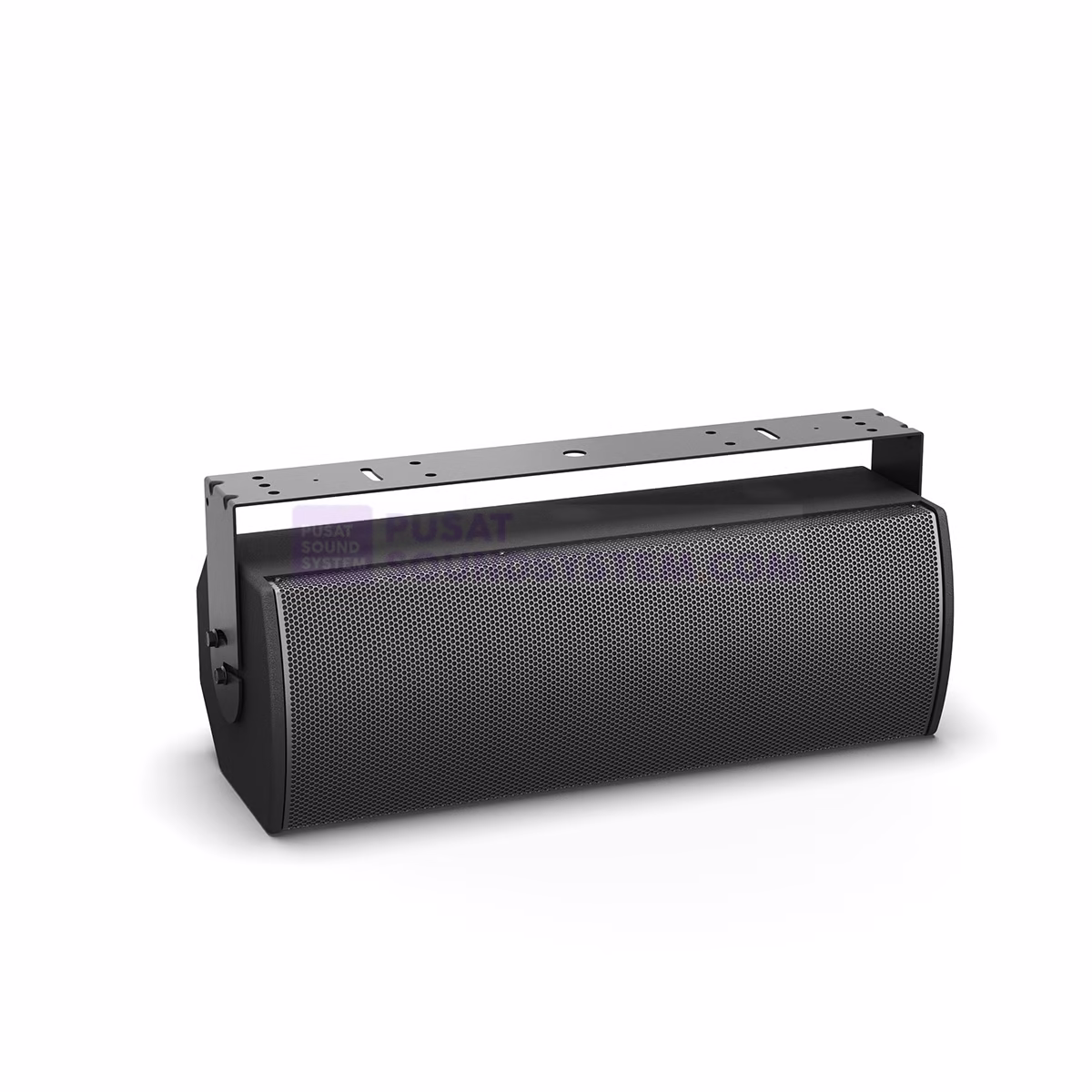

Bose ArenaMatch Utility AMU208 Speaker Pasif 2×8 Inch 2 Way 8 Ohm 1200 Watt (High Impedance, Waterproof, EN-54)
300-watt, 8-ohm Small-format Foreground/Fill Speaker with Two 8″ LF Drivers, 90° x 60° Constant-directivity HF Horn, 70V/100V Transformer Inputs, IP55 Weather Rating, and Mounting Hardware
Description
Built for zone-fill coverage or high-SPL foreground music, Bose Professional ArenaMatch Utility loudspeakers feature similar tonal balance to ArenaMatch array modules but in compact designs. They have the same EMB2S compression driver as ArenaMatch arrays, ensuring consistent sound, and the same IP55 weather rating. Deploy them for zone-fill coverage in sports stadiums, arenas, outdoor entertainment centers, and more. Or use them to provide intelligible, high-level sound in any outdoor area — from niche venues such as breweries and fairgrounds to larger settings like resorts and outdoor shopping centers.
The AMU208 is a small-format ArenaMatch Utility model for outdoor applications that require excellent audio from compact loudspeaker. It provides wide, even coverage with a 90° x 60° constant-directivity high-frequency horn, 70 Hz – 16 kHz frequency response, 126 dB peak SPL, and supports the lowest vocal ranges with two Bose Professional LF8 8-inch woofers.
FEATURES
- Deploy as zone-fill to support ArenaMatch arrays systems, delivering powerful, intelligible sound and ensuring consistent tonal balance with EMB2S compression drivers in every speaker
- Deploy to provide high-level foreground music in any outdoor venue
Install outdoors with an IP55 weather rating, three-layer stainless steel grille, water-resistant woofer cone coating, industrial polyurethane exterior coating, and molded cover to protect inputs - Adapt to a variety of configurations — all models ship standard with 70/100V transformer inputs and passive crossover with optimized filters for each transducer for more consistent frequency and polar response
- Streamline the design process by combining with complementary Bose Professional products, such as PowerMatch amplifiers and ControlSpace DSPs
- Provide wide, even coverage with 90° x 60° constant-directivity high-frequency horn, which can be rotated for horizontal or vertical installation
Perform in the most demanding applications with 70 Hz – 16 kHz frequency response and 126 dB maximum peak SPL
Support lowest vocal range with 2x Bose Professional LF8 8-inch woofers featuring a 2-inch extended-excursion voice coil, which extends response to 70 Hz
Spesifikasi
| Single Module Performance | ||||
| Frequency Response (–3 dB) 1 | 80 Hz to 16 kHz | |||
| Frequency Range (–10 dB) | 70 Hz to 18 kHz | |||
| Nominal Coverage Pattern (H × V) | 90° × 60° (rotatable high-frequency horn) | |||
| Recommended High-pass Filter | 70 Hz with minimum 12-dB / octave filter | |||
| Crossover | passive; separate bandpass filters per transducer (200 Hz and 1.2 kHz) | |||
| 70/100V transformer tap settings | 70V: 5, 10, 20, 40, 80 W; 100V: 10, 20, 40, 80 W | |||
| Bose Extended Lifecycle Test 2 | AES Transducer Test 3 | |||
| Power Handling, long-term continuous | 300 W | 400 W | ||
| Power Handling, peak | 1200 W | 1600 W | ||
| Free field | Wall/Ceiling | Free field | Wall/Ceiling | |
| Sensitivity (SPL / 1W @ 1 m) 4 | 95 dB | 97 dB | 95 dB | 97 dB |
| Calculated Maximum SPL @ 1 m 5 | 120 dB | 122 dB | 121 dB | 123 dB |
| Calculated Maximum SPL @ 1 m, peak | 126 dB | 128 dB | 127 dB | 129 dB |
| Certifications | ||||
| EN 54-24 Certified | EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire AlarmSystems for Buildings, refer to the ArenaMatch Utility small-format foreground/fill loudspeakerinstallation guide for specifications | |||
| Transducers | ||||
| Low Frequency | 2 × Bose LF8 high-excursion 8-inch woofers (2-inch voice coil) | |||
| High Frequency | 1 × Bose EMB2S extended high-frequency compression driver (2-inch voice coil) | |||
| Nominal Impedance | 8 Ω | |||
| Physical | ||||
| Enclosure Material | Exterior-grade plywood | |||
| Finish | Two-part spray polyurea coating, black or white | |||
| Grille | 3-layer: perforated stainless steel, acoustic foam, stainless steel mesh, powder-coat finish | |||
| Environmental 6 | Rated for direct-exposure outdoor installations (IP55 per EN60529; IP33C per EN 54-24) | |||

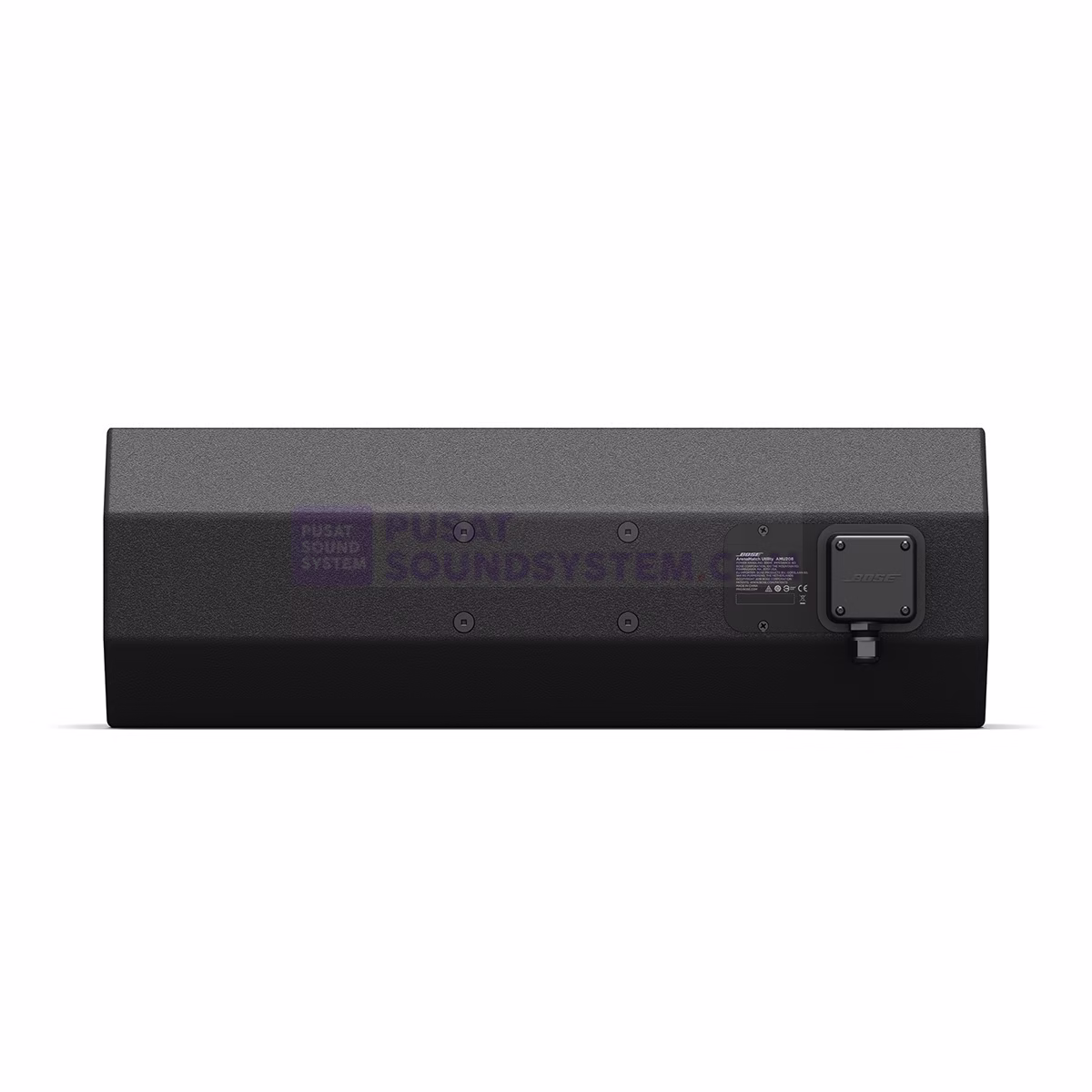

| Connectors | 1 × barrier strip, (accepts 10 to 18 wire gauge) | |||
| Suspension/Mounting | 2 × M8 threaded inserts for U-bracket; 4 × M8 threaded inserts on rear (127 × 70 mm, 4-bolt pattern) |
|||
| Dimensions (H × W × D) | 235 × 686 × 279 mm (9.3 × 27.0 × 11.0 in) with input cover | |||
| Net Weight | 17.0 kg (37.5 lb) / 19.5 kg (43.0 lb) with u-bracket | |||
| Shipping Weight | 23.1 kg (51.0 lb) | |||
| Accessories | optional pan-and-tilt bracket | |||
| Product Code | ||||
| Black | 811436-0110 | |||
| White | 811436-0210 | |||
