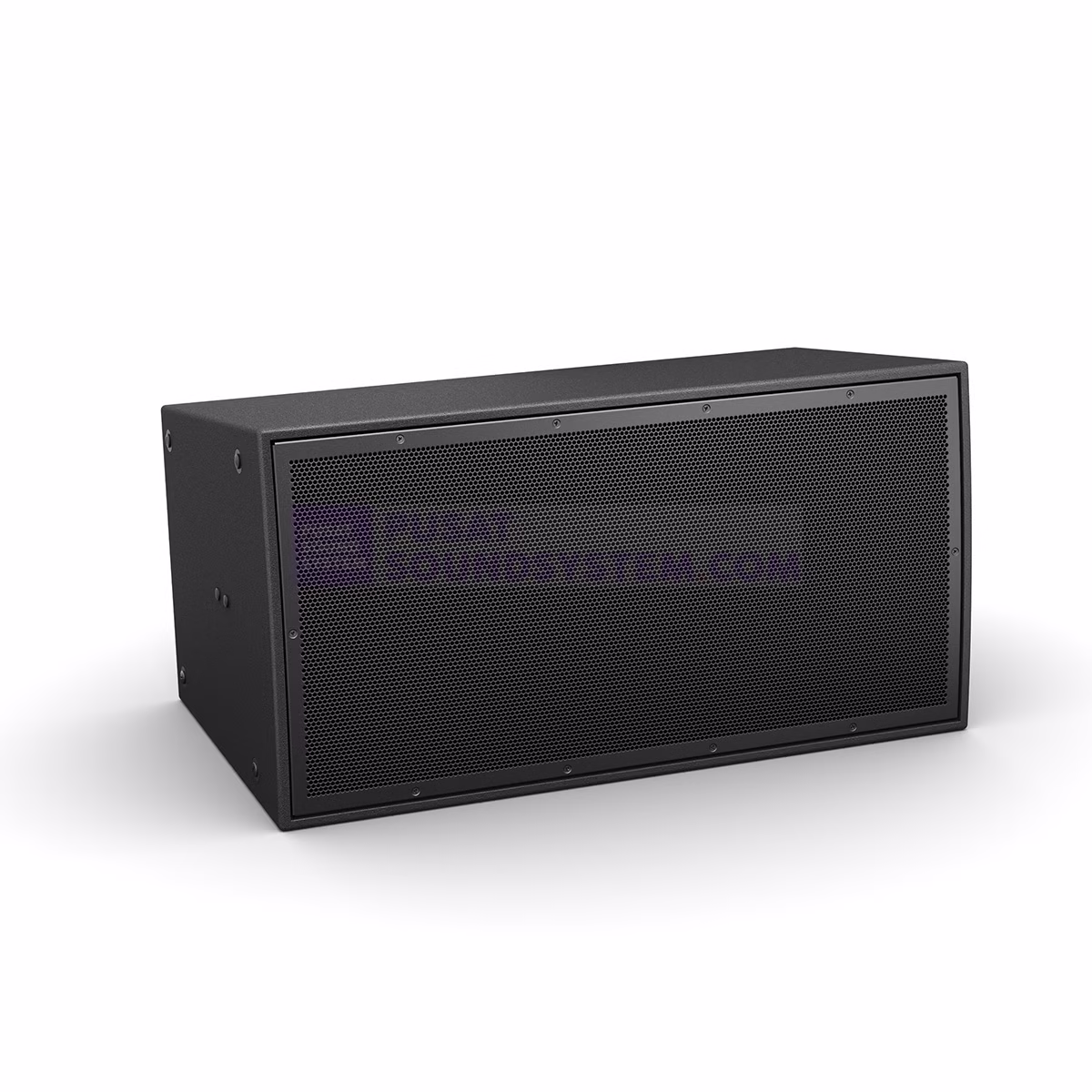

Bose ArenaMatch AM10 Speaker Array Pasif 14″ 3000 Watt
IP55 Rated Outdoor Array Loudspeaker with 80 x 10 coverage
Description
Bose Professional ArenaMatch loudspeakers bring proven DeltaQ sound quality and flexibility to outdoor installations — sports stadiums, arenas, outdoor entertainment centers, and more. Featuring an IP55 weather rating, ArenaMatch DeltaQ modules make it easy to create outdoor loudspeaker arrays that bring consistent, intelligible sound to every listener. Nine coverage patterns are available. Choose from modules with 10°, 20°, or 40° vertical coverage and easily swap between 60°, 80°, or 100° horizontal waveguides to build arrays that are lighter, require less installation time, and can lower overall system costs by delivering full coverage with fewer modules.
Feature
- Improve sound quality, consistency, and vocal clarity with DeltaQ array technology, which allows directivity, or “Q,” to vary in each module to more precisely match coverage to audience area
- Easily customize horizontal coverage with replaceable waveguides that allow you to further customize coverage and even form asymmetrical patterns for improved acoustic performance in left/right arrays

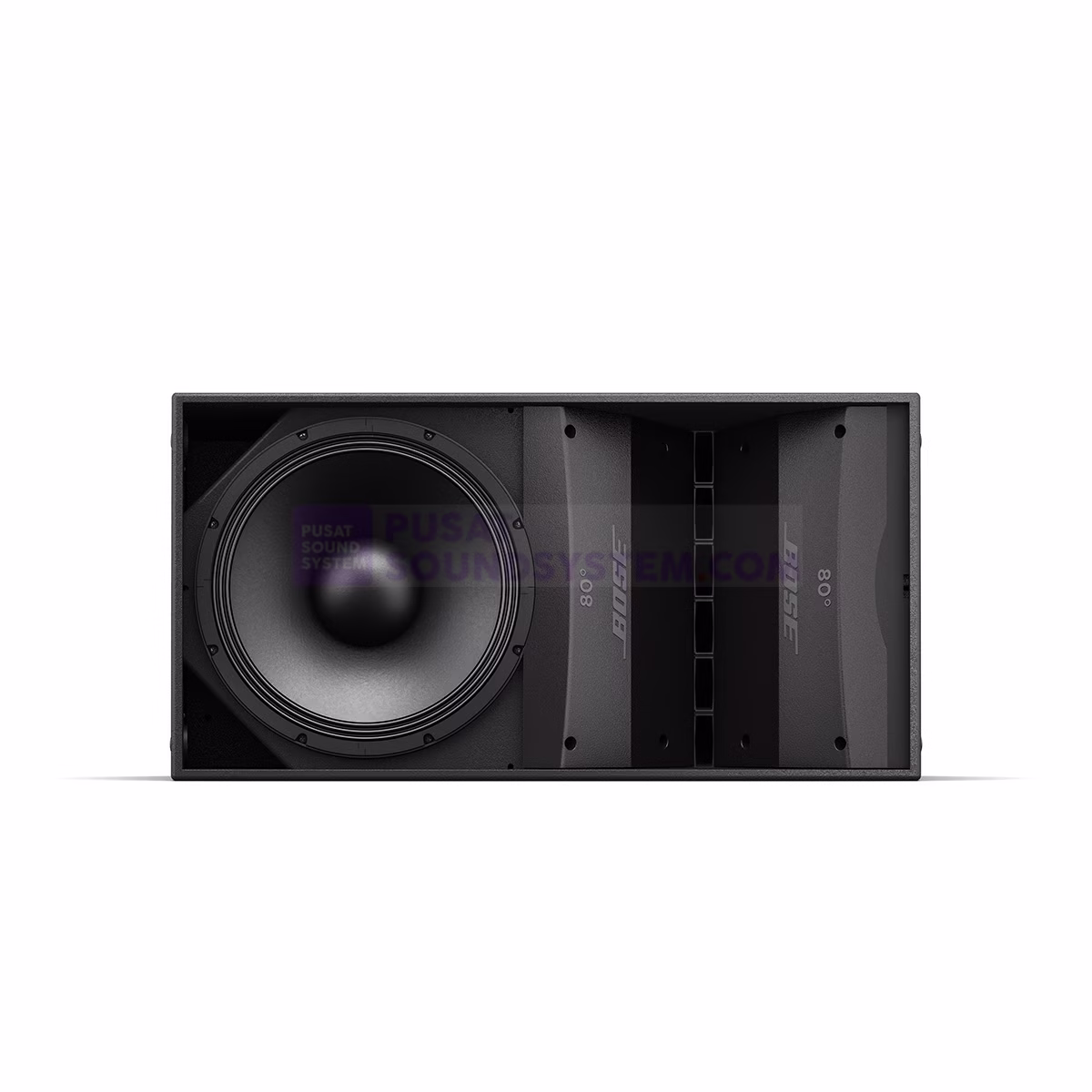

- Deliver high-SPL, long-throw music reproduction and vocal intelligibility with a 14-inch neodymium woofer and six Bose EMB2S titanium-diaphragm neodymium compression drivers
- Install outdoors with an IP55 weather rating, three-layer stainless steel grille, water-resistant woofer cone coating, industrial polyurethane exterior coating, and molded input cover
- Provide full coverage with fewer modules — 10°, 20°, and 40° modules allow you to create arrays that improve sight lines, reduce weight, and lower system costs by requiring fewer modules compared to conventional arrays
- Reduce commissioning time by using 40° modules for point-source applications and 10°, 20° and 40° modules for line arrays — all with the same transducers for consistent tonal balance
- Adapt to a variety of configurations — all models ship standard with bi-amp capability, passive crossover, and 70/100V transformer inputs
- Streamline the design process by combining with complementary Bose Professional products, such as ArenaMatch Utility zone-fill loudspeakers, PowerMatch amplifiers, and ControlSpace DSP
- Save time during installation using Bose accessory mounting hardware or use the standard M12 threaded inserts to interface with custom array frames
Applications
Designed for a wide range of applications, including:
- Professional sports arenas and stadiums
- Educational sports complex
- Outdoor hospitality venues
- Outdoor restaurant and bar areas
- Places of worship
Spesifikasi
Frequency Response (+/-3 dB)
65 Hz to 16 kHz
Nominal Coverage Pattern (H x V)
AM10/60: 60° H x 10° V
AM10/80: 80° H x 10° V
AM10/100: 100° H x 10° V
Sensitivity (SPL/ 1W @ 1m)
AM10/60: 94 dB (LF) / 107 dB (HF) / 100 dB (Passive)
AM10/80: 94 dB (LF) / 106 dB (HF) / 99 dB (Passive)
AM 10/100: 94 dB (LF) / 105 dB (HF)/ 98 dB (Passive)
Nominal Impedance
Passive 8 Ω / Bi-amp: 8 Ω + 8 Ω
Frequency Range (-10 dB)
55 Hz to 18 kHz
Long-term Power Handling
Low Frequency: 600 W (2400 W peak)
High Frequency: 150 W (600 W peak)
Passive 750 W (3000 W peak)
Maximum SPL @ 1m
AM10/60: 122 dB (LF) / 129 dB (HF) / 129 dB (Passive)
AM10/80: 122 dB (LF) / 128 dB (HF) / 128 dB (Passive)
AM10/100: 122 dB (LF) / 127 dB (HF) / 127 dB (Passive)
