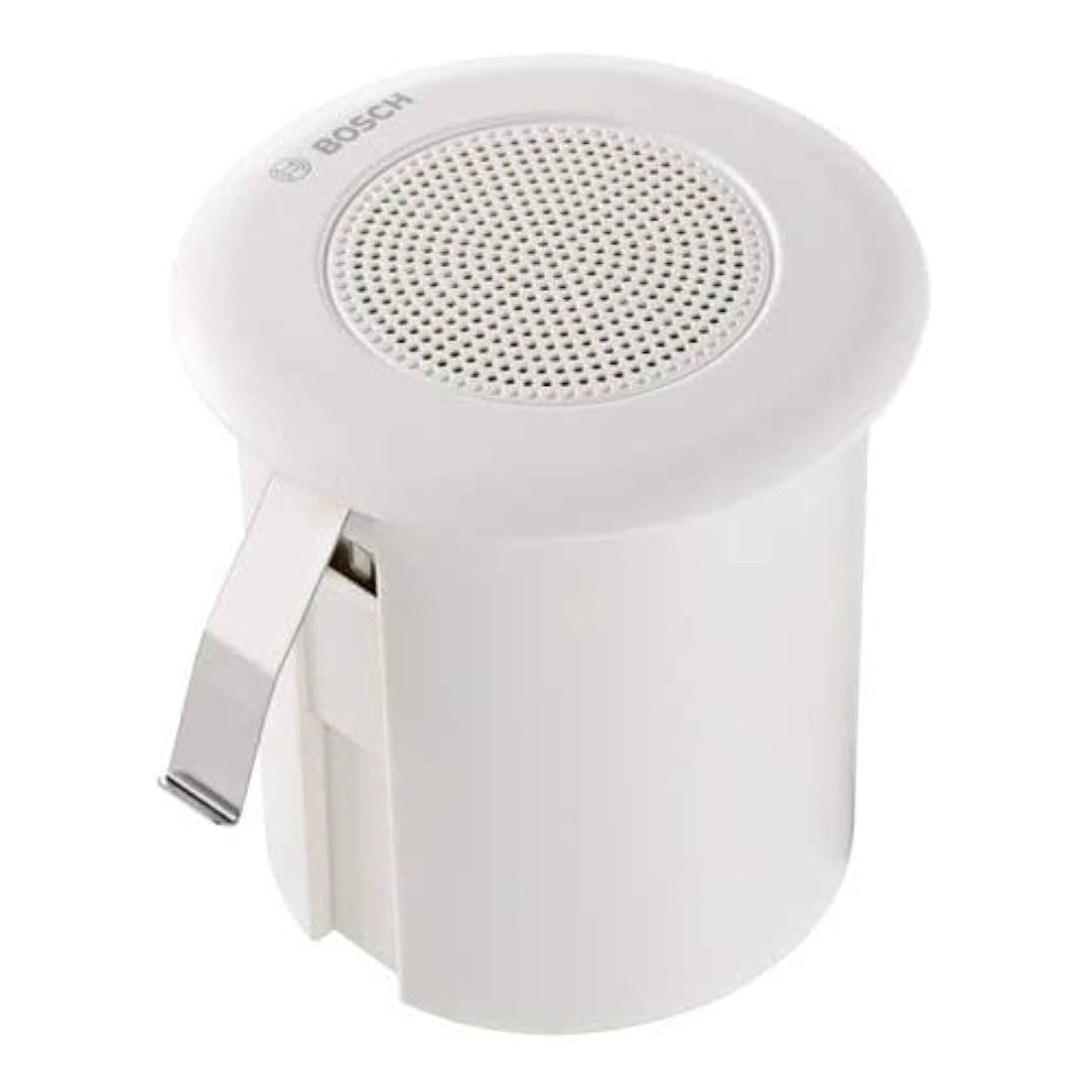

BOSCH LC5-WC06E4 Speaker Ceiling Pasif 2 Inch 9 Watt 8 Ohm (High Impedance, Waterproof, EN-54)
Ceiling loudspeaker 6 W, circular, ABS grille, compact design, ceiling mounted by two leaf springs, white RAL 9003.
100% ORIGINAL
HARGA Kompetitif
GARANSI Resmi
AFTERSALES Service
Description
The LC5‑WC06E4 is an extreme compact ceiling loudspeaker, suitable for speech and background music reproduction. The design of the front grille perfectly matches with current available recessed luminaires, integrating light and sound. The optional back‑box LC5‑CBB fully protects the rear of the loudspeaker from dust and dripping water from above, making the combination IP 44 protected. The loudspeaker frame, grille and back‑box are manufactured from self‑extinguishing ABS according to UL 94 V 0. This ceiling loudspeaker is suitable for use in low ceiling applications with low noise level. The small driver used in the unit stands for delivering good sound quality from a small sized unit and provides a wide opening angle for the important frequency octaves. Fewer loudspeakers are needed to cover a given area, and the noticeable “fading” that occur as a listener walks from one loudspeaker to another area is eliminated. The loudspeaker (with assembled back‑box) is suitable for use in humidity-, chlorine- and salty environments.
Fitur
- Suitable for speech and music reproduction
- Extreme compact size
- Suitable for use in humidity-, chlorine- and salty environments
- Selectable 70 V ,100 V and 8 Ohm input
- EN 54‑24 certified
Spesifikasi
| LC5-WC06E4 Ceiling Loudspeaker | |
|---|---|
| Maximum Power | 9 W |
| Rated Power | 6 W (6/3/1.5/0.75W) |
| Sound Pressure Level (at 6 W power / 1 W) (1 kHz, 1 m) | 90 dB / 82 dB (SPL) |
| Sound Pressure Level (at 6 W power / 1 W) (1 kHz, 4 m) | 76 dB / 68 dB (SPL) |
| Opening Angle (at 1 kHz / 4 kHz) (-6 dB) | 180° / 180° |
| Effective Frequency Range (-10 dB) | 85 Hz to 20 kHz |
| Rated Voltage | 6.93 V |
| Rated Impedance | 6 W: 8 Ohm, 833 Ohm (70V), 1666 Ohm (100V) 3 W: 1666 Ohm (70V), 3333 Ohm (100V) 1.5 W: 3333 Ohm (70V), 6666 Ohm (100V) 0.75 W: 6666 Ohm (70V), 13333 Ohm (100V) |
| Electrical Connection | 2x two-way screw terminal block |
| Acceptable Wire Gauge | 0.5 – 2 mm |
| Physical Specifications | |
| Diameter | 88 mm (3.46 in) |
| Mounting Cut-out | 76 mm (2.99 in) |
| Min./Max. Ceiling Thickness | 5 to 25 mm (0.19 to 0.98 in) |
| Maximum Depth | 78 mm (3.07 in) |
| Material | ABS (V 0) |
| Weight | 395 g (0.87 lb) |
| Color | White (RAL 9003) |
| LC5-CBB Back-Box | |
| Diameter | 75 mm (2.95 in) |
| Maximum Depth | 83.5 mm (3.29 in) |
| Material | ABS (V 0) |
| Weight | 41 g (0.09 lb) |
| Color | White (RAL 9003) |
| Operating Temperature | -25 ºC to +55 ºC (-13 ºF to +131 ºF) |
| Storage and Transport Temperature | -40 ºC to +70 ºC (-40 ºF to +158 ºF) |
| Relative Humidity | < 95% |
