BOSCH LBC3484/00 Horn Loudspeaker | Speaker Corong Pasif 75 Watt (Waterproof, High Impedance)

BOSCH LBC3484/00 Horn Loudspeaker | Speaker Corong Pasif 75 Watt (Waterproof, High Impedance)

Horn loudspeaker 50 W, circular 20″, aluminum/ABS material, U-bracket mounting, water and dust protected IP65, light gray RAL 7035.

Chat Penjual
Category: Tags: , , Brand:
Bosch
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

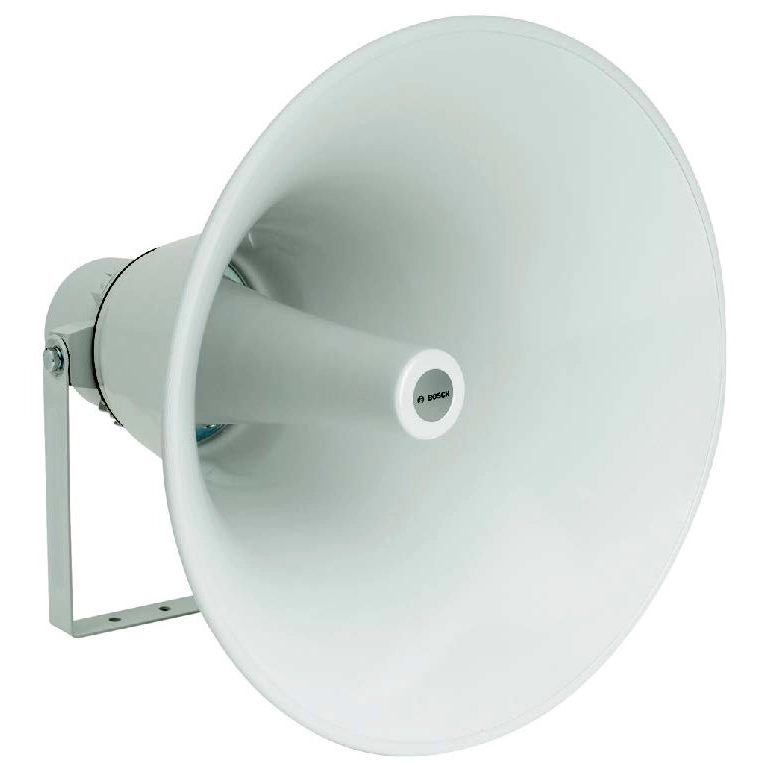

Bosch high-efficiency horn loudspeakers provide excellent speech reproduction and sound distribution for a wide scope of outdoor applications. They are ideal for sports grounds, parks, exhibitions, factories and swimming pools. The LBC 3484/00 is a circular 50 W horn loudspeaker, measuring 490 mm (19.6 in) in diameter. It is made from aluminum. The edges of the horn are covered with a PVC profile for protection against impact damage. It is light gray (RAL 7035), and is water and dust protected. Voice alarm loudspeaker The LBC 3484/00 is designed for use in voice alarm systems and is compliant with emergency standards. The Horn loudspeaker has built-in protection to ensure that, in the event of a fire, damage to the loudspeaker does not result in failure of the circuit to which it is connected. In this way, system integrity is maintained; ensuring loudspeakers in other areas can still be used to inform people of the situation. The Horn loudspeaker has a ceramic terminal block, thermal fuse and heat resistant, high-temperature wiring. They have provision for inside mounting the optional line/loudspeaker supervision boards.

Fitur

  • High efficiency driver
  • Excellent speech reproduction
  • Provision for inside mounting of the optional line/loudspeaker supervision board
  • Water-and dust protected to IP 65
  • BS 5839‑8 and EN 60849 compliant

Spesifikasi

Technical Specifications
Electrical
Maximum power 75 W
Rated power 50 / 25 / 12.5 W
Sound pressure level at 50 W / 1 W (1 kHz, 1 m) – 127 dB / 110 dB (SPL)
Effective frequency range (-10 dB) 350 Hz to 4 kHz
Opening angle at 1 kHz / 4 kHz (-6 dB) 60° / 28°
Rated voltage 100 V
Rated impedance 200 ohm
Connector Screw terminal block
Mechanical
Dimensions (L x Dmax) 499 x 490 mm (20 x 19.6 in)
Weight 6 kg (13.22 lb)
Color Light gray (RAL 7035)
Cable diameter 6 mm to 12 mm (0.24 in to 0.47 in)
Environmental
Operating temperature -25 ºC to +55 ºC (-13 ºF to +131 ºF)
Storage and transport temperature -40 ºC to +70 ºC (-40 ºF to +158 ºF)
Relative humidity <95%
