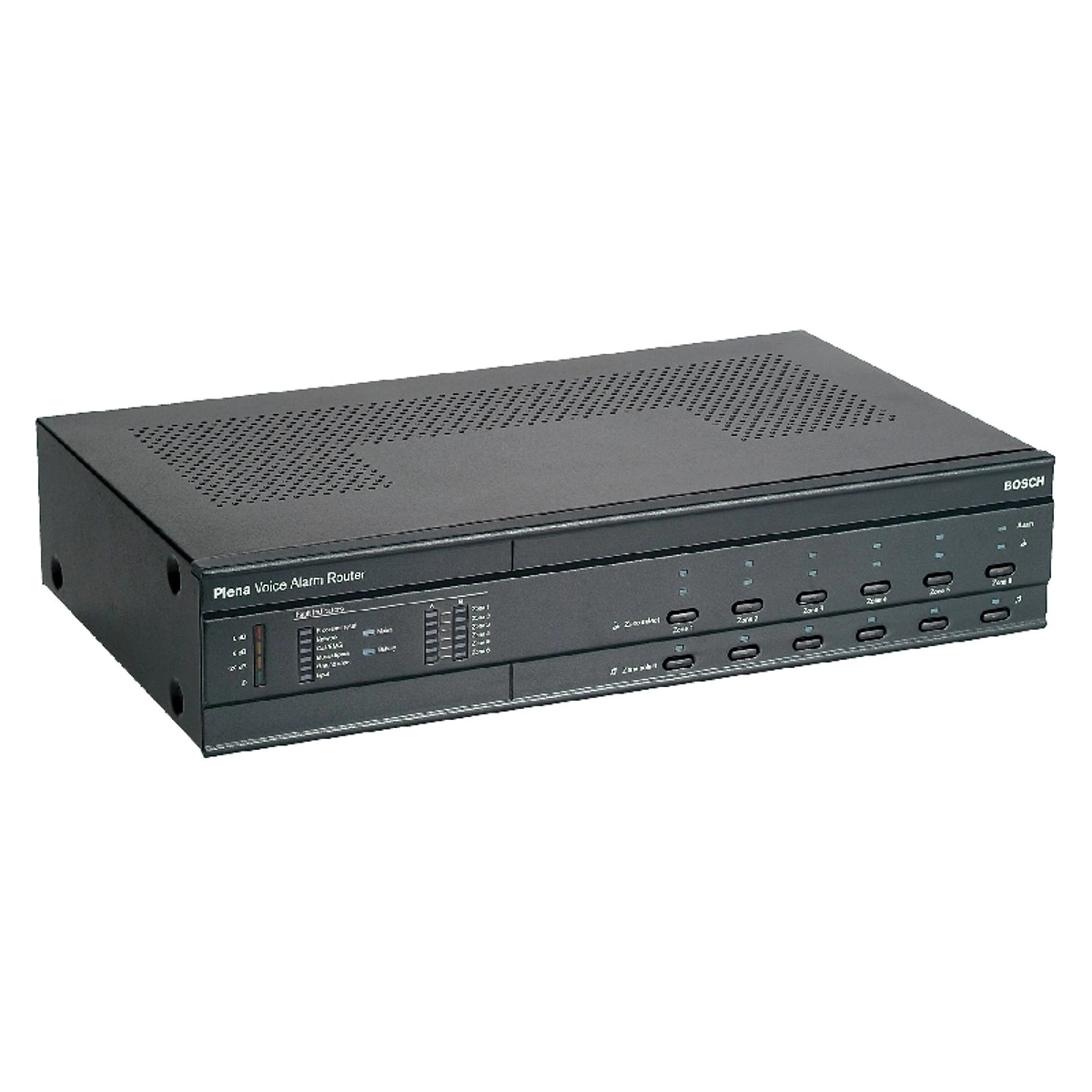

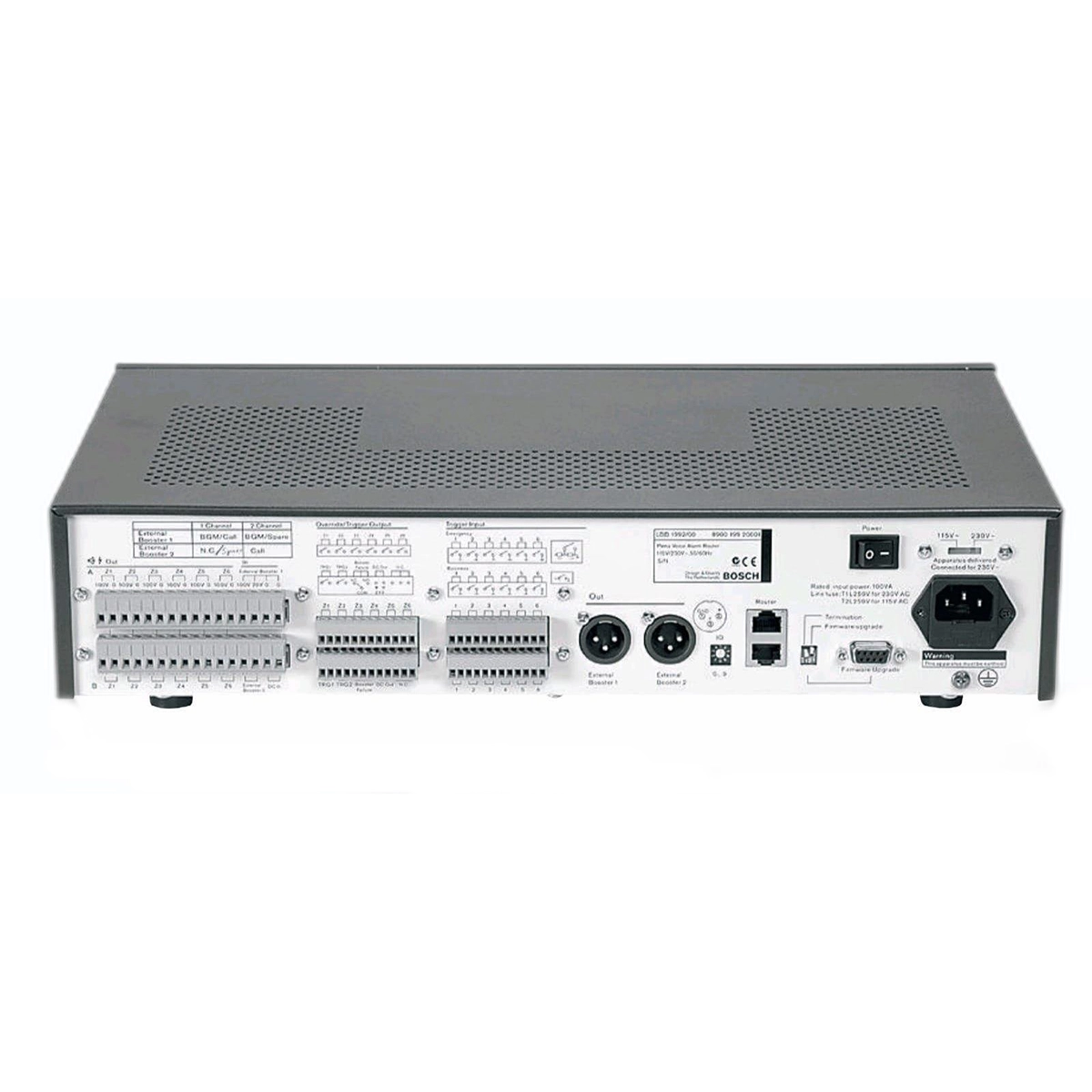

BOSCH LBB1992/00
An expansion unit for adding six zones and 12 input contacts to the Plena Voice Alarm System.
Description
The LBB1992/00 Voice Alarm Router is an expansion unit that can add six zones and 12 input contacts to the Plena Voice Alarm System. It can use the built‑in amplifier on the LBB1990/00 Plena Voice Alarm System Controller, and provides inputs and outputs for one or two amplifiers in a multi‑amplifier one or two‑channel system. It provides dual channel operation for calls and BGM simultaneously to a maximum of six different zones, using two amplifiers. Additionally, single channel operation is possible with only one amplifier. Multiple routers can also share one amplifier, including the internal amplifier on the controller unit. It is possible to use any number of amplifiers from one up to the number of routers used. The controller supports A/B wiring.
Fitur
- Expand the Plena Voice Alarm System with six zones
- EN 54‑16 certified
- 12 additional input contacts
- Six volume override output contacts
- Supervision within the Plena Voice Alarm System
Spesifikasi
| Electrical | |
|---|---|
| Mains power supply | Voltage 230/115 VAC, ±10%, 50/60 Hz |
| Inrush current | 1.5 A @ 230 VAC / 3 A @ 115 VAC |
| Max power consumption | 50 VA |
| Idle / max load current | 0.2 A / 0.3 A |
| Battery power supply | Voltage 24 VDC, +15% / -15% |
| Current max | 1.8 A |
| Typical / max load current | 0.51 A / 1.5 A |
| Trigger Inputs | 12 x (6 EMG, 6 business) |
| Connectors | MC1,5 / 14-ST-3,5 |
| Activation | Programmable |
| Supervision | On EMG inputs, programmable |
| Supervision method | Series / parallel resistor |
| 100 V input | Connector MSTB 2,5 /16-ST |
| Amp 1 | 100 V / 70 V / 0 V |
| Amp 2 | 100 V / 0 V |
| Power handling capacity | 1000 W |
| Loudspeaker outputs | 12 x (2 x 6 zones) |
| Connectors | MSTB 2,5 /16-ST, floating |
| 100 V output | 700 W rated per zone |
| Volume override types | 3-wire, 4-wire (24 V), 4-wire failsafe |
| Output Contacts | Connector MC 1,5/14-ST-3,5 |
| Rating | 100 V, 2A, voltage free |
| General purpose relays (2x) | NO / COM |
| Mechanical | |
| Dimensions (H x W x D) | 88 x 430 x 260 mm (19″ wide, 2U high) |
| Weight | Approx. 3 kg |
| Mounting | Standalone, 19” rack |
| Color | Charcoal |
| Environmental | |
| Operating temperature | -10 ºC to +55 ºC (14 ºF to +131 ºF) |
| Storage and transport temperature | -40 ºC to +70 ºC (-40 ºF to +158 ºF) |
| Relative humidity | <95% |
