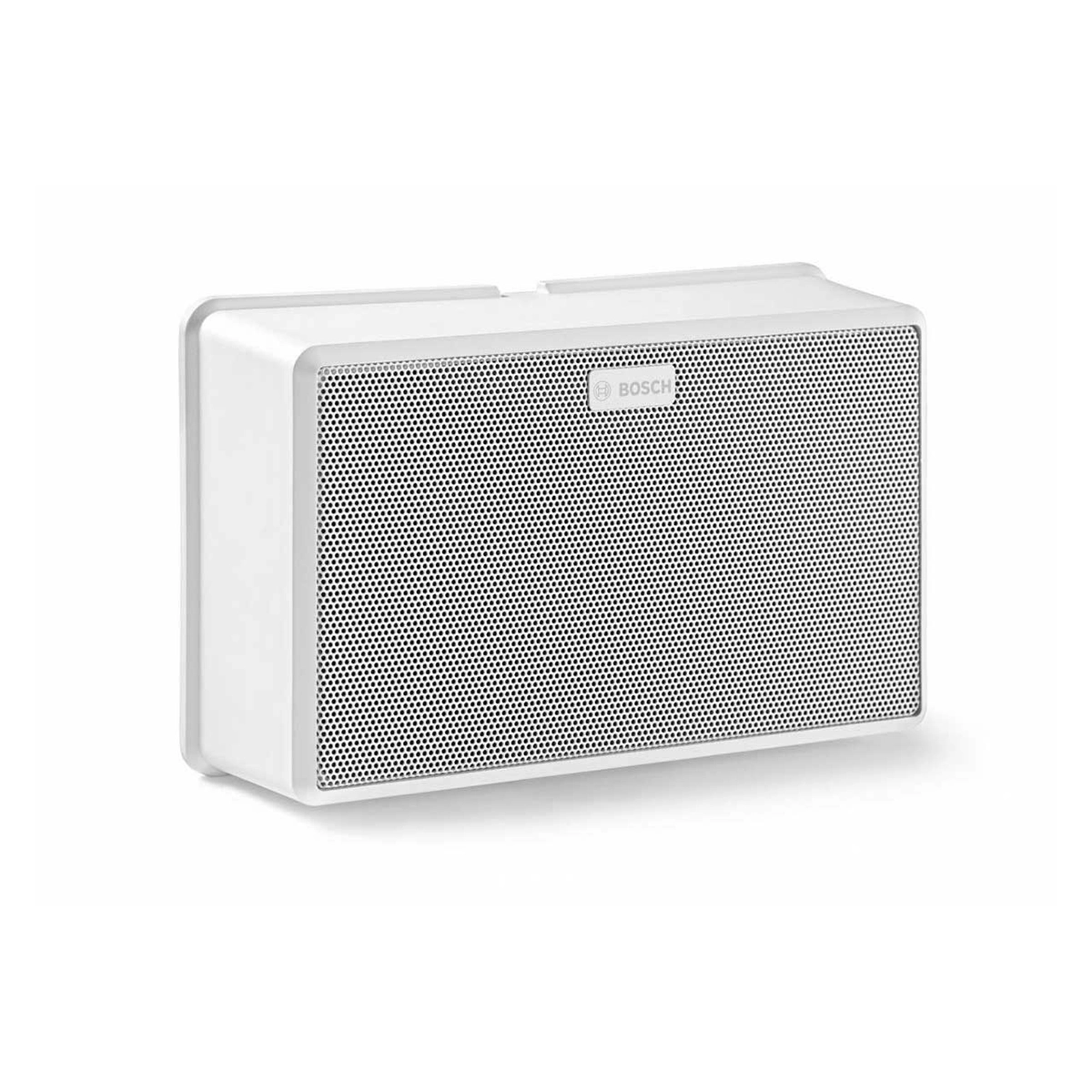

BOSCH LB7-UC06E Speaker Dinding Pasif 6 Inch 18 Watt (High Impedance, EN-54)

BOSCH LB7-UC06E Speaker Dinding Pasif 6 Inch 18 Watt (High Impedance, EN-54)

ABS cabinet loudspeaker 6 W

Chat Penjual
Category: Tag: Brand:
Bosch
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

The ABS Cabinet loudspeaker 6 W is suitable for speech and music reproduction and is applicable for use in voice alarm systems. The ABS rectangular cabinet is made from ABS with a metal grille front.

Fitur

  • Suitable for speech and music reproduction
  • Compact size
  • Knock-out ports for conduit – or cable entries
  • EN 54-24 certified

Spesifikasi

Specification Value
Maximum power (W) 9 W
Rated power (W) 6 W
Transformer taps 70 V line (W) 6 W; 0.75 W; 1.5 W; 3 W; 0.375 W
Transformer taps 100 V line (W) 6 W; 0.75 W; 1.5 W; 3 W
Sensitivity (1 W, 1 m, 1 kHz octave) (dB) 93 dB
Sensitivity (1 W, 4 m, 100 Hz – 10 kHz) (dB), acc. EN 54-24 79 dB
Sound pressure level (rated power, 1 m, 1 kHz octave) (dB) 101 dB
Sound pressure level (rated power, 4 m, 100 Hz – 10 kHz) (dB), acc. EN 54-24 89 dB
Frequency range (-10 dB) (Hz) 170 Hz – 20,000 Hz
Coverage angle HxV (-6 dB, 500 Hz) (°) 180 x 180°
Coverage angle HxV (-6 dB, 1 kHz) (°) 180° x 180°
Coverage angle HxV (-6 dB, 2 kHz) (°) 130 x 110°
Coverage angle HxV (-6 dB, 4 kHz) (°) 85° x 98°
Rated input voltage (V) 70 V; 100 V
Rated impedance 70 V line (Ω) 833 Ω @6 W; 1,667 Ω @3 W; 3,333 Ω @1.5 W; 6,667 Ω @0.75 W; 13,333 Ω @0.375 W
Rated impedance 100 V line (Ω) 1,667 Ω @6 W; 3,333 Ω @3 W; 6,667 Ω @1.5 W; 13,333 Ω @0.75 W
