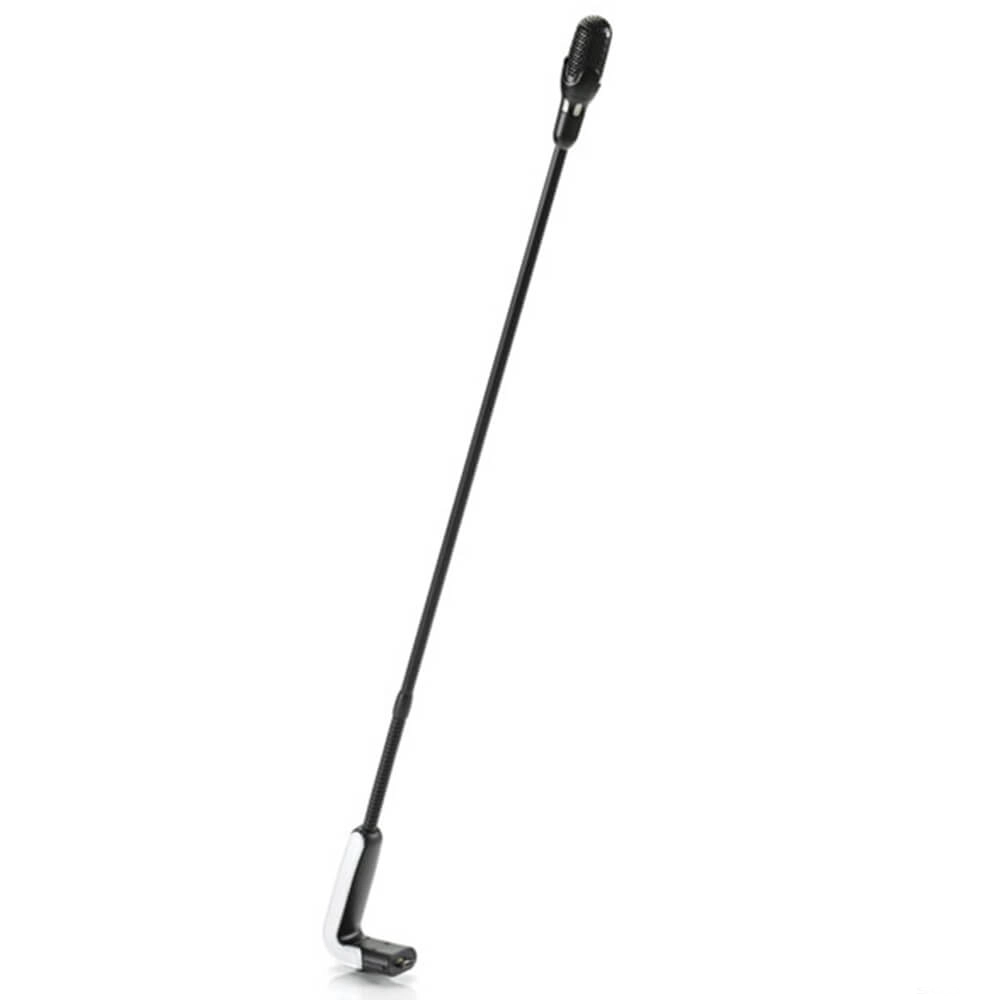

BOSCH DCNM-MICL
DICENTIS long stem microphone for the DICENTIS Conference System or DICENTIS Wireless Conference System.
Description
The innovative, stylish and ergonomically designed microphone with adjustable stem has a uni‑directional response for optimum performance, even in noisy
conditions or acoustical challenging rooms. It has low susceptibility to interference from mobile phones. For ease of use, the stem microphone is available in two lengths.
Fitur
- Uni‑directional microphone on adjustable stem
- Built‑in plop and windshield
- Low susceptible for mobile phones
- For acoustical challenging rooms
- For locations where people want to speak standing upright
| Electrical Specifications | |
|---|---|
| Power Supply | 5 VDC |
| Power Consumption | 0.1 W |
| Bandwidth | 125 Hz – 15 kHz |
| Dynamic Range | >100 dB |
| Nominal Input | 85 dB SPL |
| Maximum Input | 115 dB SPL |
| Equivalent Noise | 15 dB SPL |
| Mechanical Specifications | |
| Mounting | Plug and fasten into DICENTIS device and DICENTIS Wireless Devices |
| Length (DCNM‑MICS without connector) | 310 mm (12.21 in) |
| Length (DCNM‑MICL without connector) | 480 mm (19.90 in) |
| Connector Dimensions | 77.15 x 60.47 mm (3.40 x 2.38 in) |
| Weight (DCNM‑MICS) | 91 g (0.20 lb) |
| Weight (DCNM‑MICL) | 108 g (0.24 lb) |
| Color (DCNM‑MICS / DCNM‑MICL) | Traffic black RAL 9017 / Pearl light grey RAL 9022 |
| Environmental Specifications | |
| Operating Temperature | 0 ºC to +45 ºC (32 ºF to +113 ºF) |
| Storage and Transport Temperature | -20 ºC to +70 ºC (-4 ºF to +158 ºF) |
| Relative Humidity | < 95 %, > 5% |
