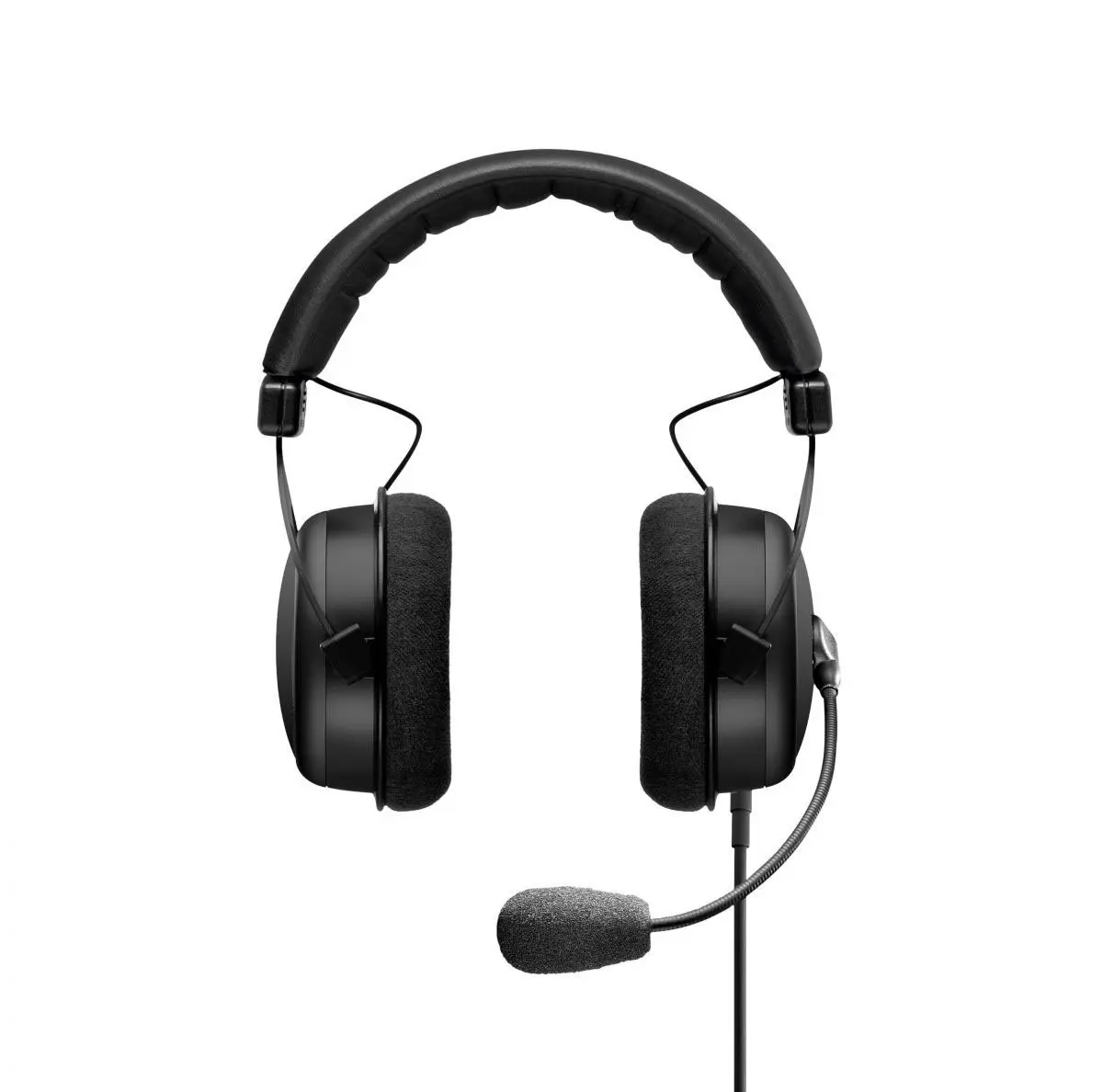

Beyerdynamic MMX 300

Description

The MMX 300 is an ideal headset for all gaming, multimedia and Vocie over IP applications. The technology of the MMX 300 is based on the reliable HS 400 aviation headset suitable for hi-fi applications. The noise-cancelling microphone with a crystal-clear sound ensures a clear and precise voice transmission even in noisy surroundings. The closed design guarantees absolute undisturbed enjoyment of game and sound combined with a high comfort due to soft, replaceable ear and headband pads. The integrated cable remote control with features such as microphone mute, volume control, call acceptance and media control as well as temporary mute button are always within reach. Thanks to the supplied adapter cable the MMX 300 headset is suitable for both the use with a PC and gaming with a notebook or console which have a mini (3.5mm) combination jack.

FEATURES

• Closed stereo headset with cable remote control made in Germany
• Excellent intelligibility of speech due to high-quality microphone capsule
• Silky-soft ear pads made of micro fibre ensure a pleasant comfort of wearing for many hours
• Supplied with transport case for safe storing, 1/4″ jack adapter, 1.2 m [3.9 ft] long cable for the use with consoles and a 2.5 m [8.2 ft] long cable for the use with a PC

TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS
Headphone
Transducer type . . . . . . . . . . . . . . . . Dynamic
Operating principle . . . . . . . . . . . . . Closed
Frequency response . . . . . . . . . . . . . 5 – 35,000 Hz
Nominal impedance . . . . . . . . . . . . . 32 Ω per system
Nominal SPL. . . . . . . . . . . . . . . . . . . 96 dB
T.H.D.. . . . . . . . . . . . . . . . . . . . . . . . < 0.2%
Power handling capacity . . . . . . . . . 100 mW
Sound coupling to the ear . . . . . . . . Circumaural
Ambient noise attenuation. . . . . . . . approx. 18 dBA
Headband pressure . . . . . . . . . . . . . 3.5 N
Weight with microphone and cable . 332 g
Cable length and type . . . . . . . . . . . 1.2 m [3.9 ft] cable with
remote control for the use
with consoles
2.5 m [8.2 ft] cable with
remote control for the use
with a PC
Connection . . . . . . . . . . . . . . . . . . . 1* 3.5 mm for consoles
2* 3.5 mm for PC
1* adapter 6.35 mm
Accessories . . . . . . . . . . . . . . . . . . . 2 x detachable cables
(console & PC)
1 x transport case
Microphone
Transducer type . . . . . . . . . . . . . . . . Condenser (back electret)
Operating principle . . . . . . . . . . . . . Pressure gradient
Polar Pattern . . . . . . . . . . . . . . . . . . Cardioid
Power supply . . . . . . . . . . . . . . . . . . AB powering
Supply voltage . . . . . . . . . . . . . . . . . 1.5 – 9 V
Current consumption . . . . . . . . . . . . < 0.5 mA
Nominal impedance . . . . . . . . . . . . . approx. 1.5 kΩ
Open circuit voltage at f = 1 kHz . . . 20 mV / Pa
Frequency response . . . . . . . . . . . . . 30 – 18,000 Hz
T.H.D.. . . . . . . . . . . . . . . . . . . . . . . . 0.2% at f = 1 kHz
Max. SPL . . . . . . . . . . . . . . . . . . . . . 120 dB
Microphone output . . . . . . . . . . . . . unbalanced
Dimensions
Length mic boom. . . . . . . . . . . . . . . approx. 150 mm
Capsule diameter. . . . . . . . . . . . . . . 13 mm
Connection . . . . . . . . . . . . . . . . . . . Mini stereo jack plug
(3.5 mm)
