Description

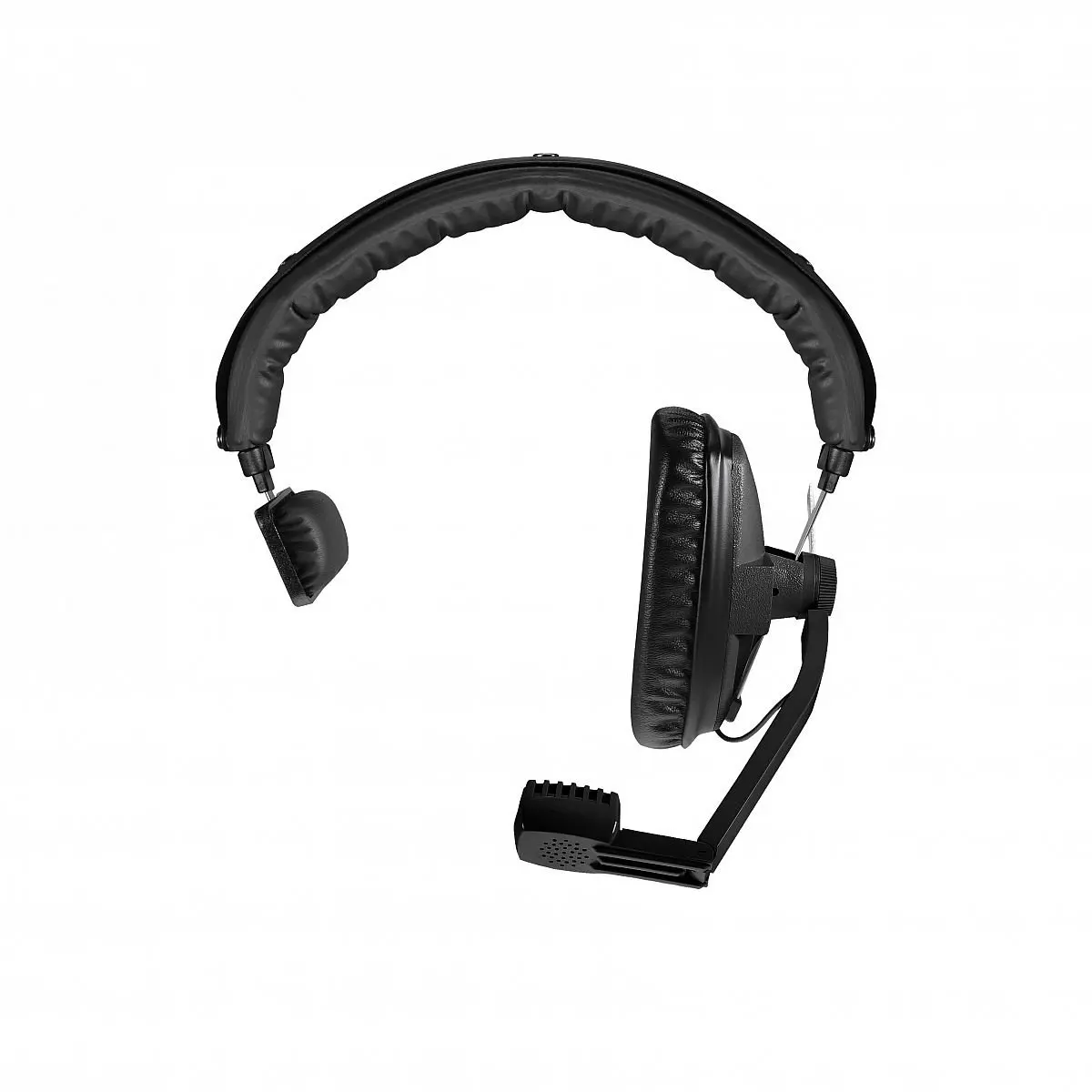

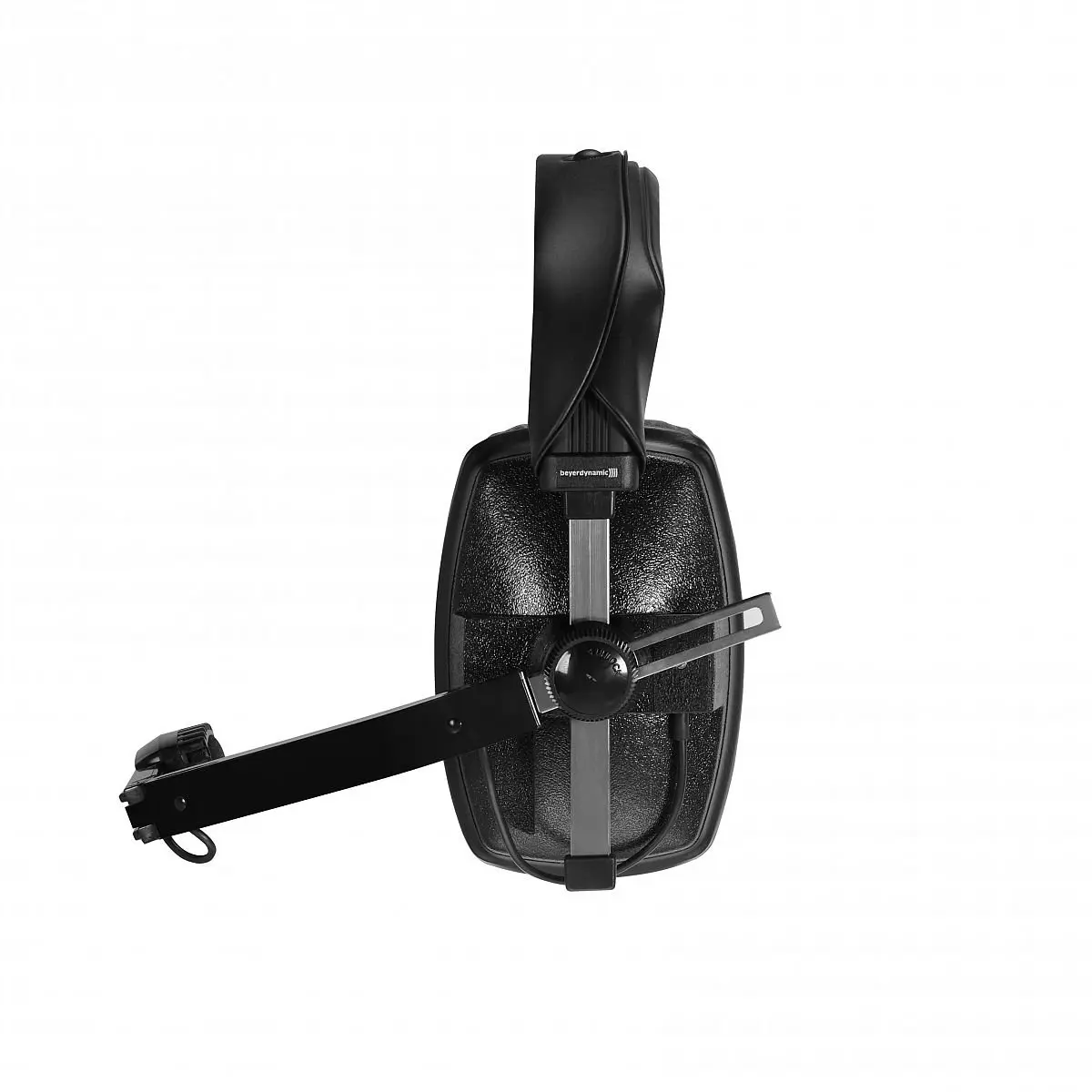

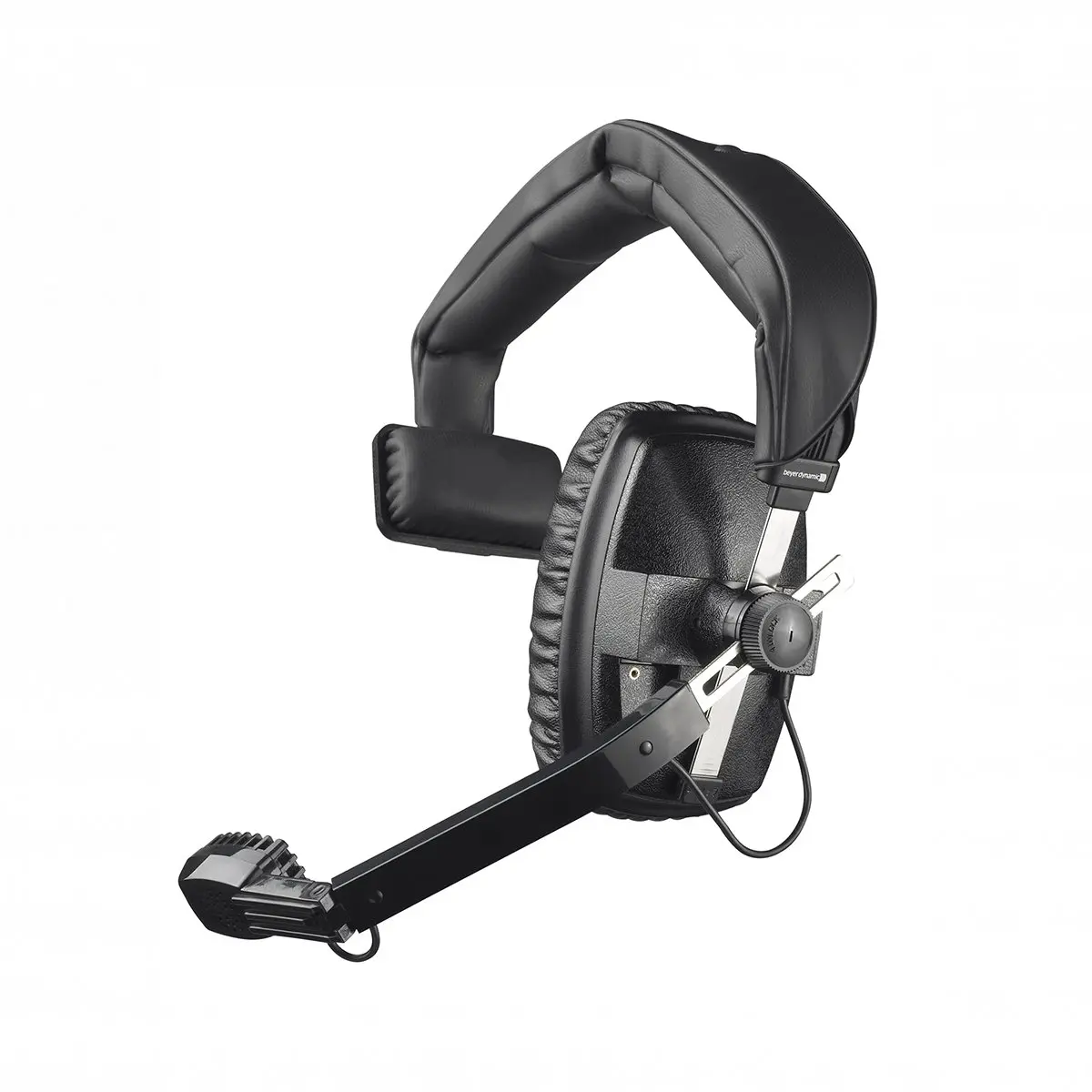

The DT 108 single-muff headset is designed for live, remote broadcasting, for studio, film and TV-applications. One side is open to monitor ambient sound. The protective ear cup attenuates up to 20 dB of ambient noise. The headset features a noise cancelling microphone. Available in different impedances.
Fitur
• Highly sensitive headphone and microphone transducers
• Excellent ambient noise attenuation
• Capable of handling very high SPL
• Rugged construction
• Excellent comfort for long-term wearing
• Modular construction for easy servicing
Spesifikasi
| Headphone | |
| Transducer type | Dynamic |
| Operating principle | Closed |
| Frequency response | 30 – 20,000 Hz |
| Nominal impedance | 400 Ω ± 10% per cartridge* |
| Nominal SPL at 1 kHz | 94 dB |
| T.H.D | < 1% |
| Power handling capacity | 1000 mW 124 dB |
| Ambient noise attenuation | approx. 20 dBA |
| Sound coupling to the ear | Circumaural |
| Headband pressure | approx. 4.5 N |
| Weight (without cable) | 283 g |
| Microphone | |
| Transducer type | Dynamic |
| Operating principle | Pressure gradient |
| Frequency response | 40 – 12,000 Hz |
| Polar pattern | Hypercardioid |
| Output voltage | approx. 2.5 mV at a distance of 5 cm |
| Nominal impedance | 200 Ω |
| Load impedance | ≥ 1000 Ω |
