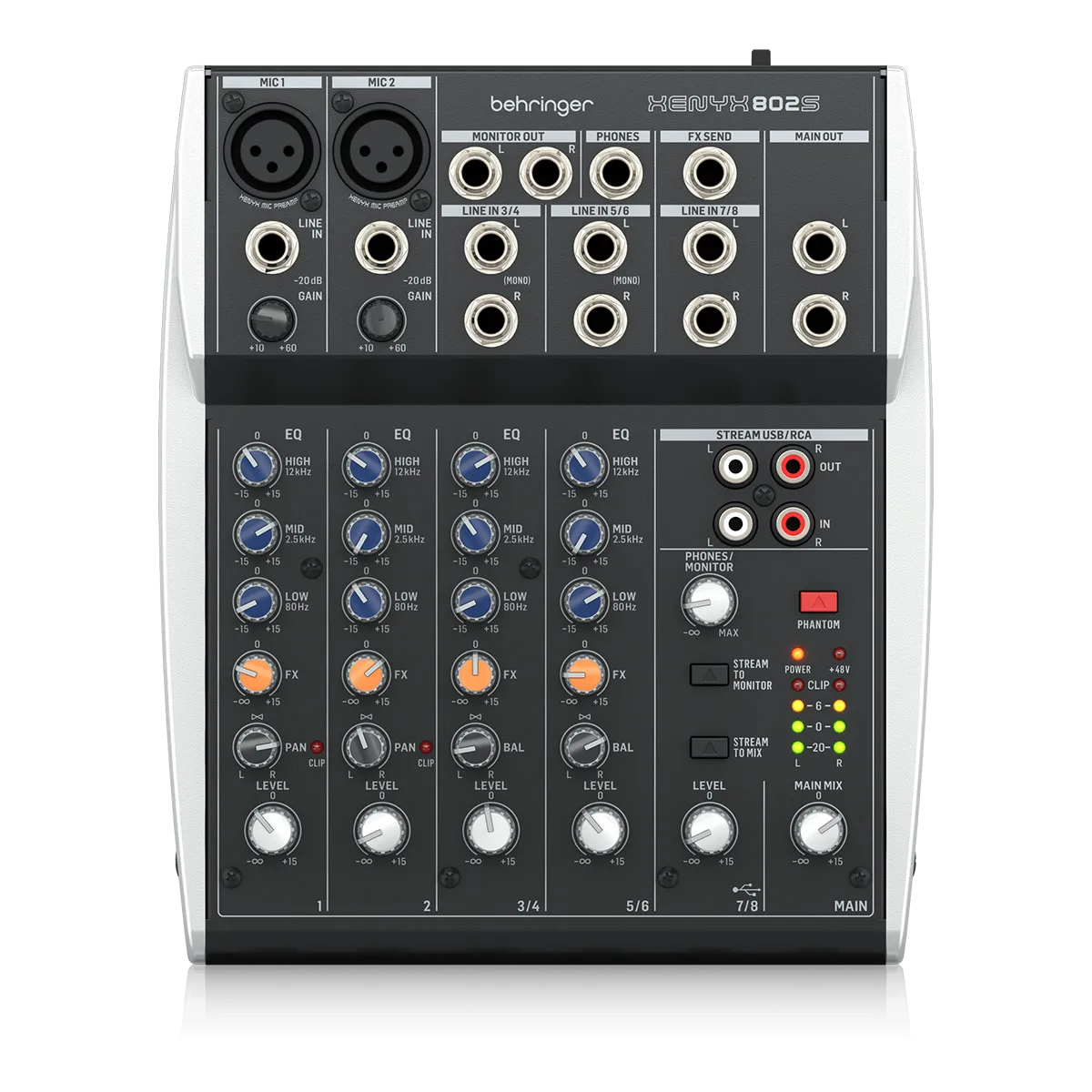

Behringer XENYX 802S Mixer Analog 8 Channel

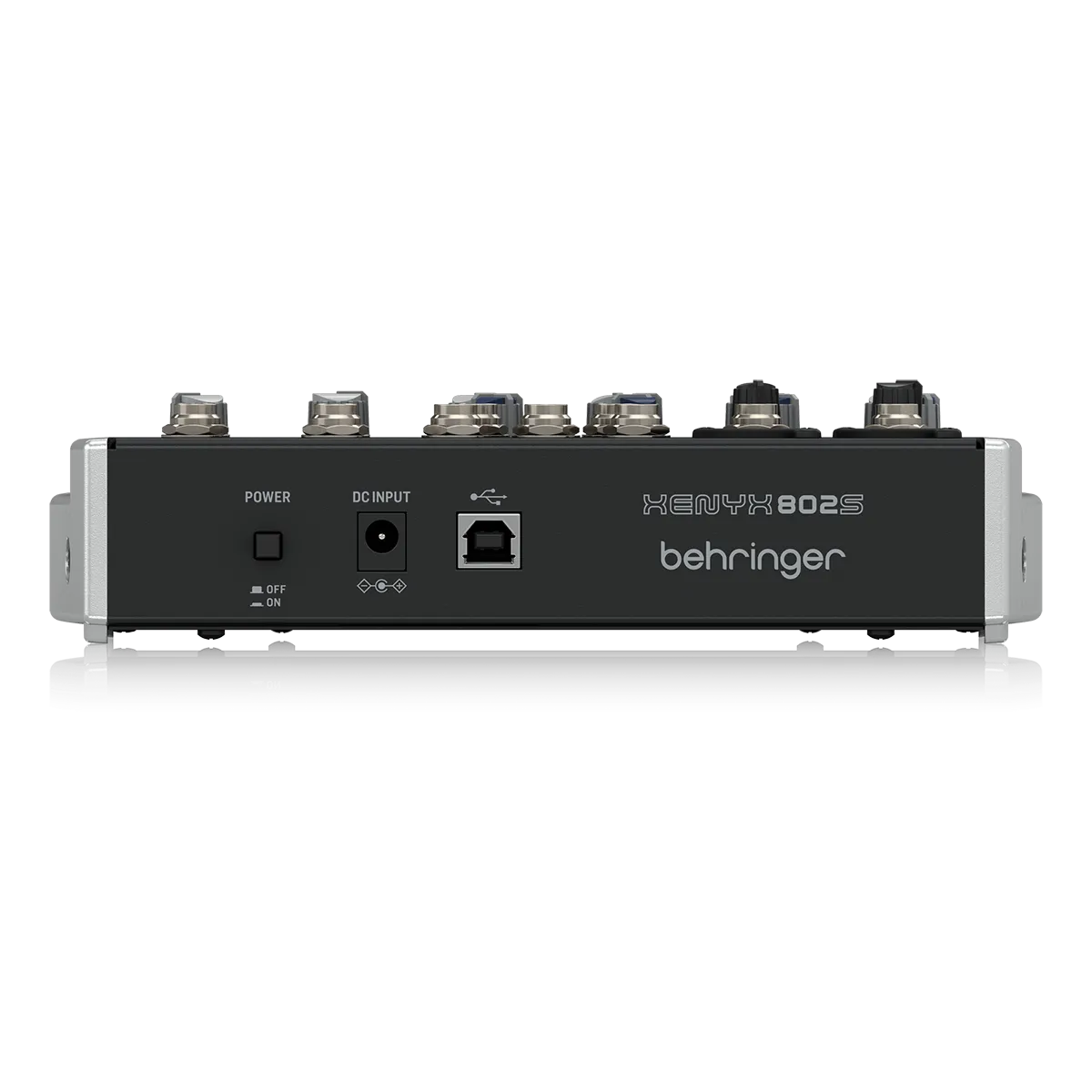

Behringer XENYX 802S Mixer Analog 8 Channel - Image 2

Behringer XENYX 802S Mixer Analog 8 Channel

Premium Analog 8-Input Mixer with USB Streaming Interface

Chat Penjual
Category: Tags: , , , , , , , Brand:
Behringer
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

Features

  • Ultra-low noise analog mixer for streaming, podcasting and recording
  • 2 Award winning XENYX microphone preamps for warm and musical sound
  • Stereo USB audio interface to connect to your computer or mobile device
  • Direct mixing of PC/gaming sounds into the streaming output
  • Analog mixing and equalization for pure sound
  • Versatile sub mixer for network enabled audio devices
  • Stereo channel 7/8 automatically switches between TRS input and USB playback
  • 3-band EQs for warm and musical sound
  • FX send control per channel for external FX processor or monitoring mix
  • High-quality monitoring, phones and streaming outputs
  • Stereo RCA inputs assignable to main mix or monitor/phones outputs

Specification

Mono Inputs

Microphone Input

Balanced XLR, discrete input circuit

Mic EIN (22 Hz-22 kHz) @ 50 Ω: 132 dB, A-weighted

Frequency response Gain +10 dB: 10 Hz to 150 kHz

Frequency response Gain +60 dB: 20 Hz to 70 kHz

Gain range: +10 dB to +60 dB

Max input level @ +10 dB Gain: +12 dBu

Input Impedance: 2 kΩ balanced

Distortion (THD + N) 1 kHz @ +10 dB Gain: 0.005%
Mono Line Inputs

1/4″ TRS connector balanced

Impedance: 22 kΩ balanced, 10 kΩ unbalanced

Gain range: -10 dB to +40 dB

Max input level @ 0 dB Gain: +21 dBu

Stereo Inputs

Stereo Line

1/4″ TRS connector balanced

Frequency response: 20 Hz to 200 kHz

Impedance: 22 kΩ balanced, 10 kΩ unbalanced

Max input level @ 0 dB Gain: +21 dBu
STREAM Inputs (Analog)

RCA connector unbalanced

Impedance: 10 kΩ unbalanced

Max input level: 10 dBu

EQUALIZER

Low

80 Hz/±15 dB
Mid

2.5 kHz/±15 dB
High

12 kHz/±15 dB

Main, Monitor & FX Send Outputs

Type

1/4″ TRS connector impedance-balanced
Impedance

120 Ω
Max output leve

21 dBu

Phones Out

Type

1/4″ TRS connector unbalanced
Impedance

23 Ω
Max output level

19 dBu/150 Ω

STREAM out (Analog)

Type

RCA connector unbalanced
Impedance

1 kΩ unbalanced
Max output level

10 dBu

Main Mix noise

Main Mix @ -∞

-109 dBu A-weighted
Channel @ -∞

-109 dBu A-weighted

USB

Type

Type-B connector
USB Audio Data

48 kHz 16 bit
UAC2 Class Compliant

stereo in/out

Power Supply

Power Consumption

12 W
Adaptor input

100 – 240 V~, 50/60 Hz, 0.5 A
Adaptor output

18 V DC 1.0 A
