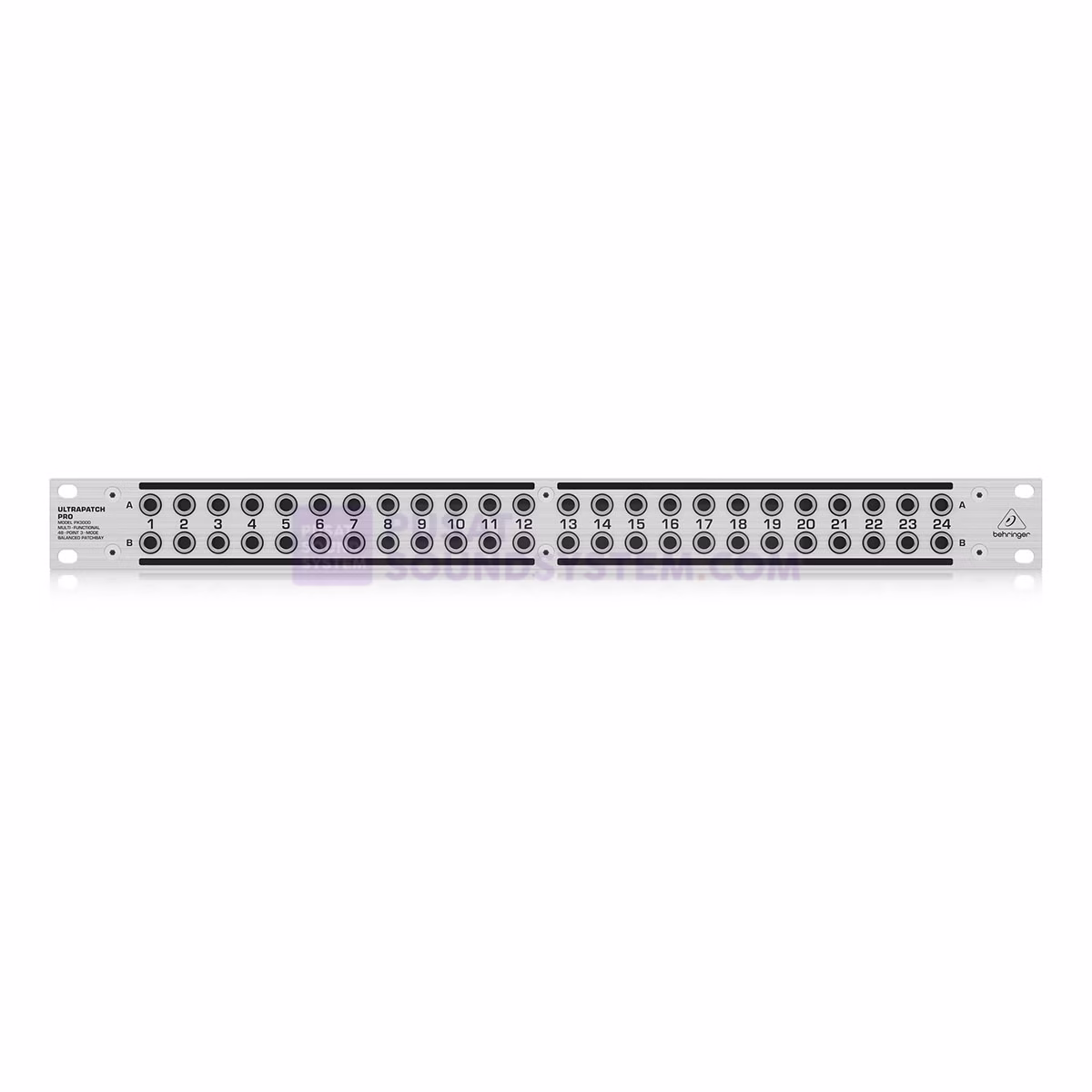

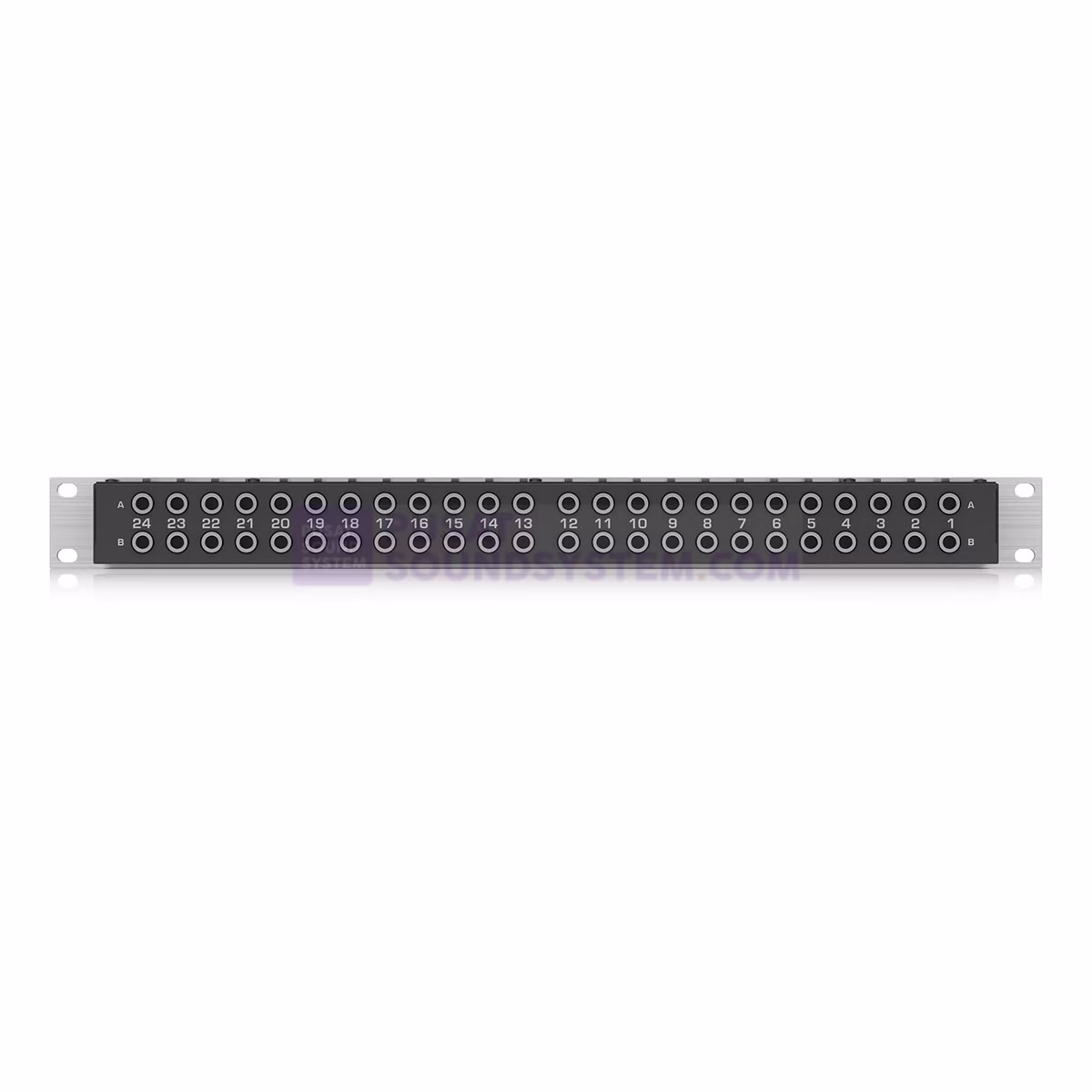

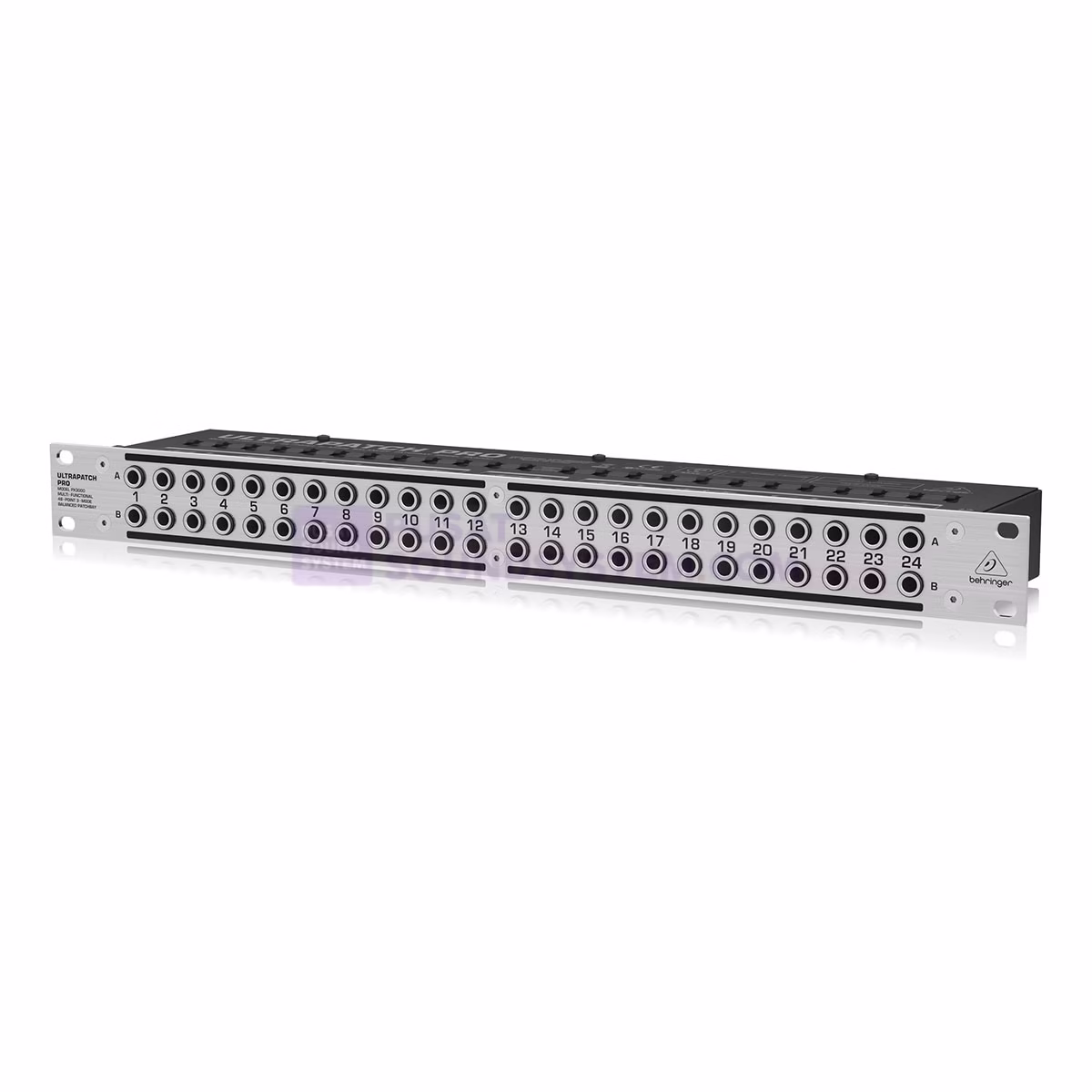

Behringer Ultrapatch Pro PX3000 48-point 1/4″ TRS Balanced Patchbay
Description
The Behringer PX3000 Ultrapatch Pro provides an easy solution to route up to 48 mono/24 stereo units. This 48-point patchbay is fully balanced with high-quality TRS jacks, which keeps your system free of noise and AC hum. It has 3 modes including Normal, Thru, and Half Normal, and the best part is that you can change modes via switches on the top side of the unit — no more removing the patchbay, disconnecting cables, and flipping I/O circuit boards!
Three modes:
Normal interconnects the 2 rear jacks of one channel, and inserting a plug into one of the front jacks interrupts the connection of the rear jacks. THRU interconnects each rear jack with its corresponding front jack. HALF NORMAL interconnects the 2 rear jacks of one channel, and inserting a plug into the lower front jack interrupts the connection of the rear jacks.
- 48-point balanced patchbay
- High-quality TRS jacks
- 3 modes: Normal, Thru, and Half Normal
Additional information
| Channel Input | 48 Channel |
|---|---|
| Channel output | 48 Channel |
