Behringer SYSTEM 35 Complete Eurorack Modular Synthesizer
Complete ”System 35“ Modular Synthesizer with 25 Modules, Midi-to-CV Converter and EURORACK GO case
100% ORIGINAL
HARGA Kompetitif
GARANSI Resmi
AFTERSALES Service
Description

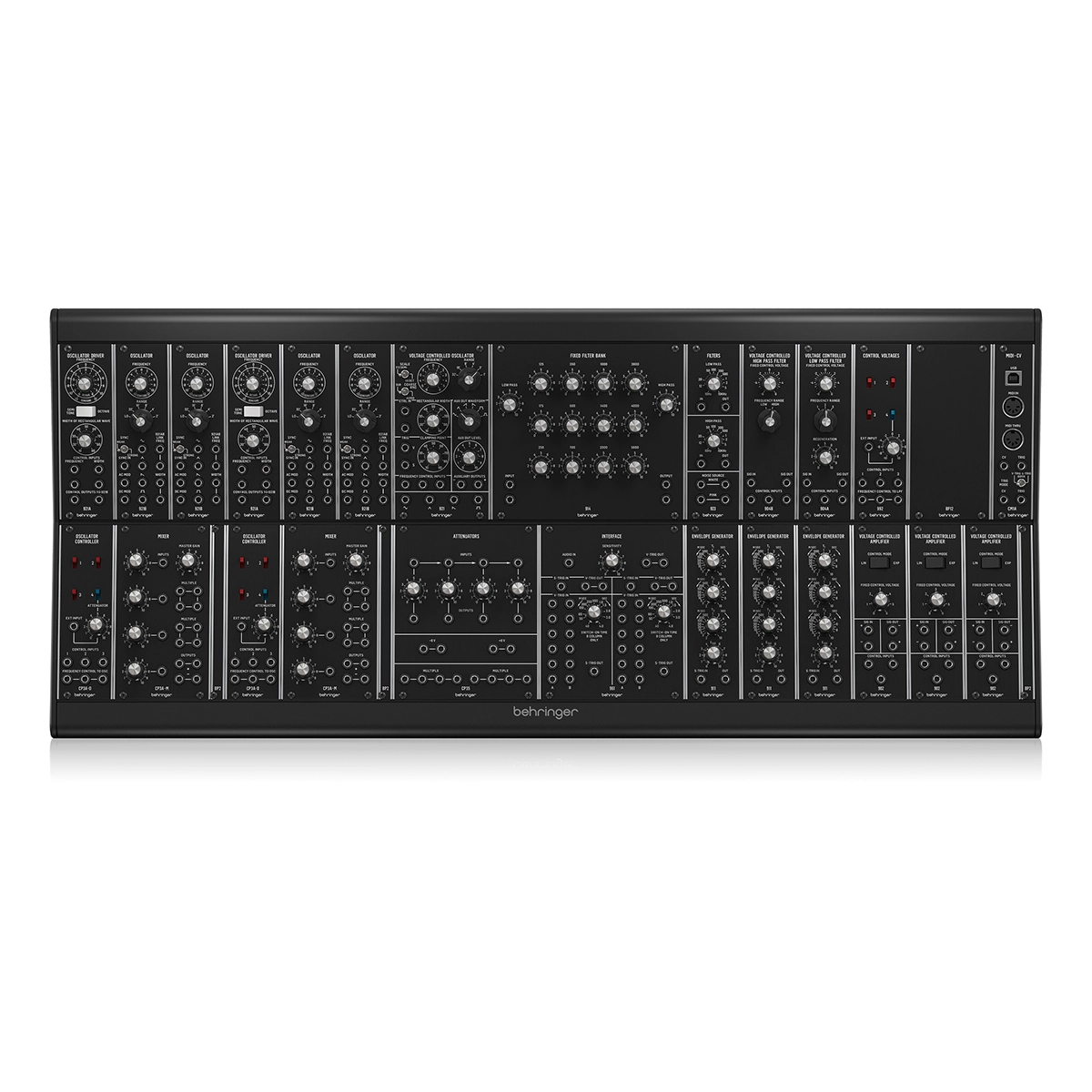

We’re bringing back all those amazing modular synths that you’ve all come to know and love and we’re putting them in one neat package that’ll surely blow you away. Enter the Behringer SYSTEM 35. This is a pre-assembled “System 35” modular synthesizer that comes packed with 25 of our vintage sounding synth modules, mounted and fully powered in the super-sturdy EURORACK GO case. It even comes with some extra space for another one of our favorite things… more modules!
Product Features
- Pre-assembled ”System 35“ modular synthesizer with 25 vintage-sounding modules from the ’70s
- 2x 921A OSCILLATOR DRIVER with 4x 921B VCOs and 1x 921 VCO provide you with 5 fully featured voices
- 1x 914 FIXED FILTER BANK with 12 active bandpass filters ranging from 125 Hz – 5.6 kHz and LP/HP filters
- 1x 923 FILTERS modules with 6 dB low and high pass filters and white/pink noise sources
- 1x 904B VOLTAGE CONTROLLED HIGH PASS FILTER and 1x 904A VOLTAGE CONTROLLED LOW PASS FILTER
- 1x 992 CONTROL VOLTAGES module allows CV mixing and switching with 1 inverting attenuator
- 2x CP3A-module allows CV mixing and switching for the VCOs with 1 attenuator
- 2x CP3A-M 4 input mixer with master level, 4 outputs, and 2 sets of 4 multiples
- 1x CP35 ATTENUATORS module with 4 linked attenuators, 2 sets of 4 multiples, and reference voltages
- 1x 961 INTERFACE module converts multiple V-trig to S-trig for compatibility with other Eurorack modules
- 3x 911 ENVELOPE GENERATORS with S-trig inputs and CV outputs
- 3x 902 VOLTAGE-CONTROLLED AMPLIFIER with 3 summed CV inputs and dual audio inputs and outputs
- 1x BP12 and 3x BP2 blank panels for a total of 18 HP expansion space
- 1x CM1A MIDI-to-CV converter enables control via MIDI keyboards or DAW, V-trig, or S-trig outputs
- 1x EURORACK GO case including PSU
Specification
Voltage Control (pitch)
| Source | Destination |
| External MIDI Keyboard – MIDI Out | CM1A MIDI Interface MIDI In |
| CM1A CV Output | 921A Oscillator Controller Frequency Input |
| 921A Frequency Output | 921B Frequency Link (in series) |
Audio
| Source | Destination |
| 921B Waveform outs (three of four) | CP3A-M Inputs |
| CP3A-M Output | 904A Signal Input |
| 904A Signal Output | 902 Signal Input |
| 902 Signal Output | Your mixer/amplifier/DAW |
Voltage Control (amplitude)
| Source | Destination |
| CM1A s-trigger Output | Multiple |
| Multiple Output (three of) | 3 x 911 s-trigger Input |
| 1st 911 Output | 1st 902 Control Input |
Voltage Control (modulation)
| Source | Destination |
| 2nd 911 Output | 904A Control Input |
| 921 Aux Sine Output | 2nd 902 Signal Input |
| 2nd 902 Signal Output | CP3A-O Input 4 |
| CP3A-O Outputs | 921B DC Mod Input (three of) |
| 3rd 911 Output | 2nd 902 Control Input |
