Behringer ADA8200 Microphone Preamp

8-channel Microphone Preamplifier and 24-bit 44.1/48kHz AD/DA Converter with ADAT Optical Out

Cek Harga
Share atau Bagikan :
Behringer Logo

Description

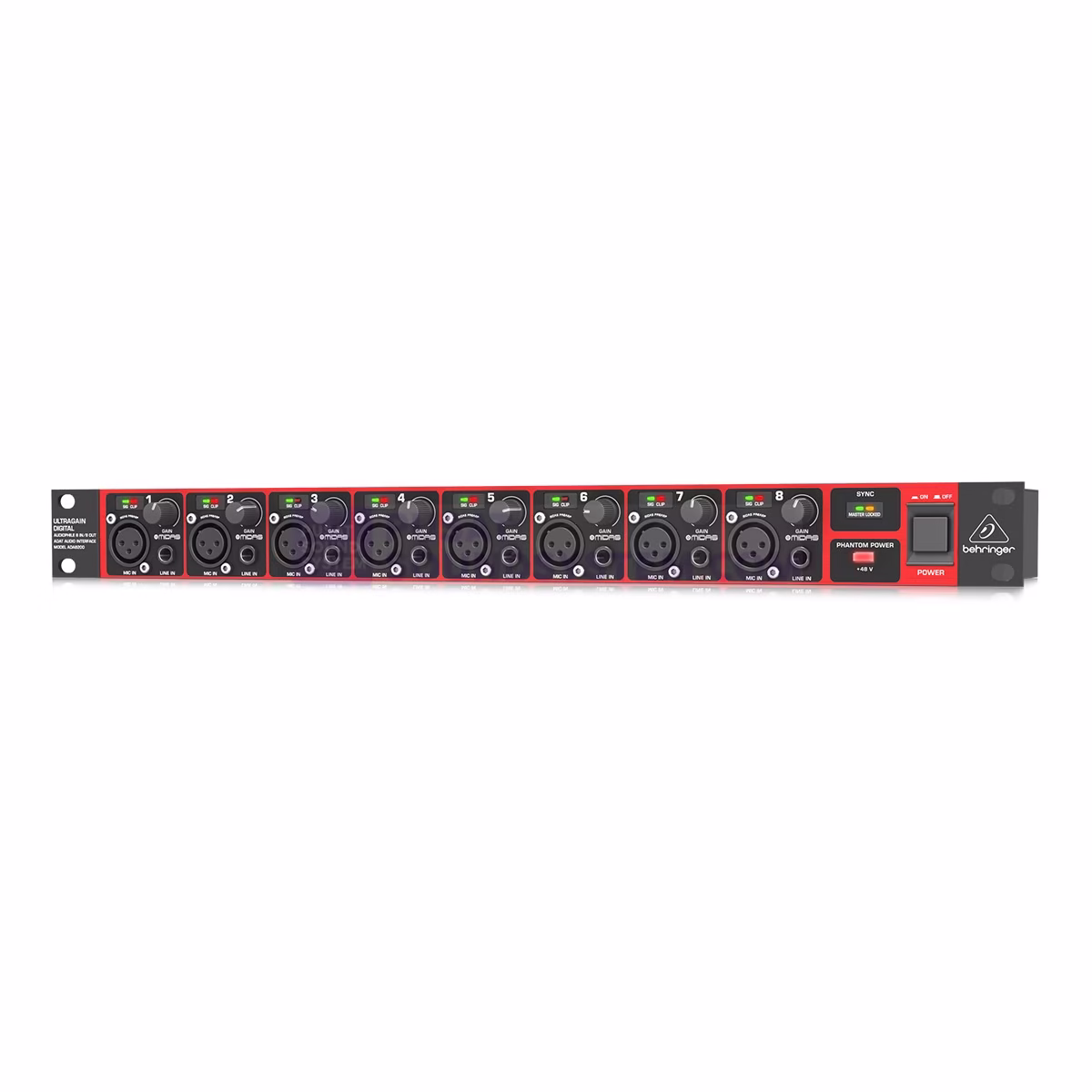

The ULTRAGAIN DIGITAL ADA8200 from Behringer is an analog to digital, and digital to analog converter that provides 8 analog inputs and outputs, and 8 digital ADAT inputs and outputs.

Each analog input features a MIDAS mic preamplifier and XLR and TRS jacks for connecting mics, keyboards, and more. Each analog output features an XLR jack for sending signals to analog mixing consoles, headphone amps and other devices. Housed in a single-space 19″ rack-mount enclosure, this unit can be used in your home or project studio to add I/O to your rig for recording and mixing by connecting into your ADAT equipped audio interface.

Eight MIDAS-designed mic pres for incredible sound

A good mic pre is an essential piece of gear in any signal path, and the Behringer ADA8200 is loaded with eight front-panel preamps designed by MIDAS. Plus, you can use the ADAT output to feed these MIDAS-designed pres into your main audio interface to expand your current system by eight channels.

Improved A/D conversion

Not only is the ADA8200 a formidable 8-channel mic pre, it serves dual purpose as a solid A/D converter. The ADA8200 features the same design as the popular ADA8000, but Behringer infused the upgraded ADA8200 with incredible reference-class Cirrus Logic converters to keep your tone intact. You’ll love the sound of the ADA8200, and with this kind of dual functionality, the ADA8200 is ideal for home and project studios where you need maximum versatility from your gear.

Flexible Sample Rate and Clocking

The ADA8200 gives you the choice of converting at 44.1kHz or 48kHz for compatibility with most digital gear. You can also use the ADA8200 as your studio’s master clock, or you can sync to ADAT or Word Clock from an external clock.

Behringer Ultragain Pro-8 Digital ADA8200 Microphone Preamplifier / A/D Converter Features:

  • 8 MIDAS-designed mic preamplifiers for incredible sound
  • Reference-class Cirrus Logic 24-bit converters for excellent A/D and D/A conversion
  • Digital I/O on ADAT optical for maximum compatibility
  • 60dB of available gain — works with any mic
  • Phantom power on all channels
  • Can be used as a master clock, or sync’d to ADAT or Word Clock

Spesifikasi

Microphone Inputs
Design MIDAS designed microphone preamp
Type XLR connector, electronically balanced, discrete input circuitry
Gain Range +10 to +60 dB
Maximum Input Level +6 dBu @ +10 dB gain for 0 dB FS
Impedance 2.7 kΩ balanced
Phantom Power +48 V, switchable
Line Inputs
Type ¼” TRS connector, electronically balanced, discrete input circuitry
Impedance appr. 20 kΩ balanced, appr. 10 kΩ unbalanced
Gain Range -10 to +40 dB
Maximum Input Level +26 dBu @ -10 dB gain for 0 dB FS
Line Outputs
Type XLR connector, electronically balanced
Impedance appr. 1 kΩ balanced, appr. 500 Ω unbalanced
Max. Output Level +16 dBu @ 0 dB FS
Digital Inputs
Type TOSLINK, optical connector
Format ADAT, 8 channels, 24-bit @ 44.1 / 48 kHz
Digital Outputs
Type TOSLINK, optical connector
Format ADAT, 8 channels, 24-bit @ 44.1 / 48 kHz
Sync
Source Internal 44.1 / 48 kHz, ADAT input, word clock input
Word Clock Type: BNC connector
Input level: 2 to 6 V peak-to-peak
Frequency range: 44.1 to 48 kHz
System
Frequency Range 10 Hz to 24 kHz @ 48 kHz sample rate
THD < 0.008%
Crosstalk < -87 dB
Power
Power Supply 100 ~ 240 V AC
Power Consumption 15 W
Fuse T 1A 250 V
Mains Standard IEC receptacle
Dimensions
Dimensions (H x W x D) 1.75 x 19.00 x 8.50″ (44.5 x 482.6 x 217.0 mm)
Weight 4.6 lb (2.1 kg)
Packaging Info
Package Weight 6.5 lb
Box Dimensions (LxWxH) 21 x 12.1 x 4.4″
