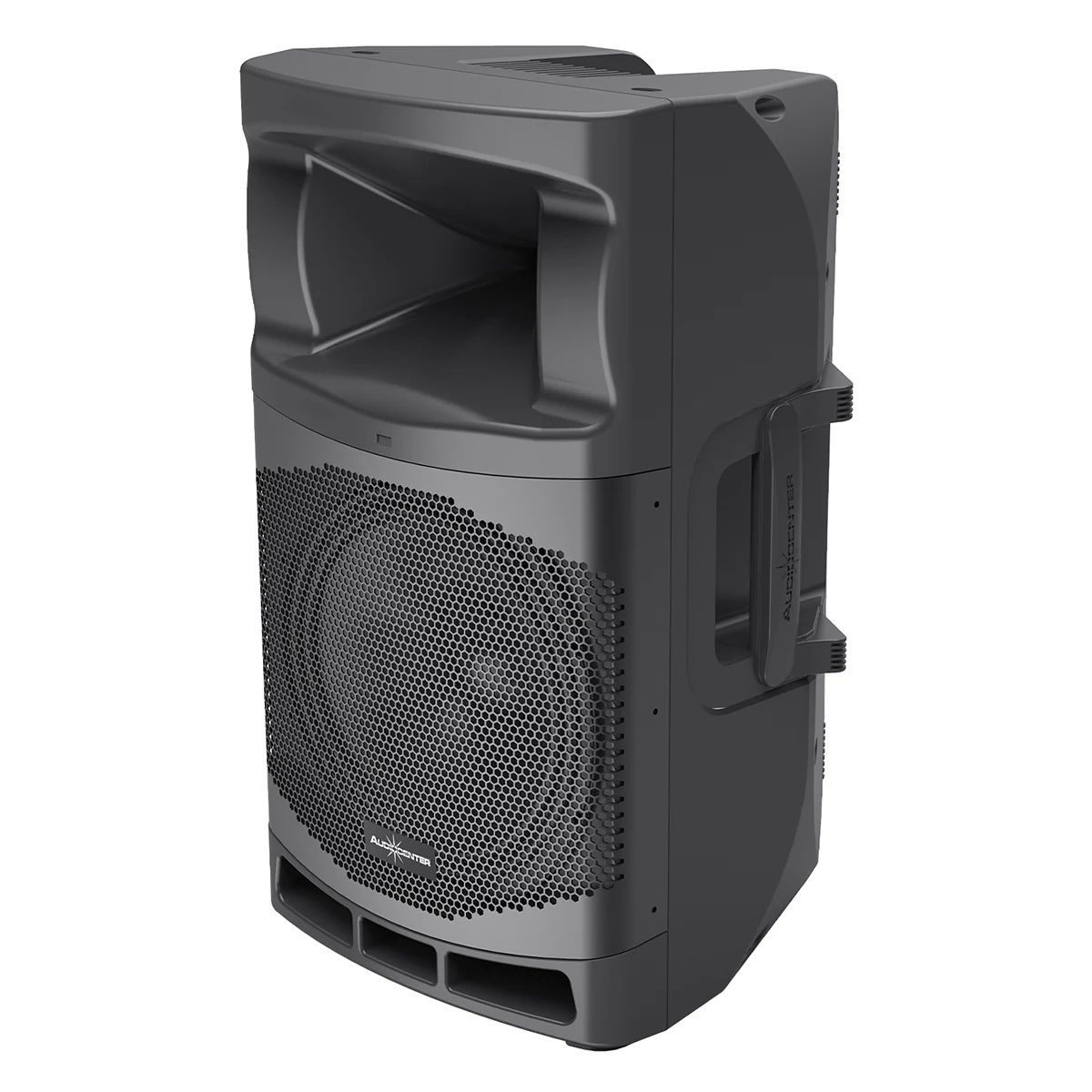

Audiocenter MA15 Speaker Aktif 15 Inch 2 Way 1600 Watt
Portable Active DSP-controlled Speaker
100% ORIGINAL
HARGA Kompetitif
GARANSI Resmi
AFTERSALES Service
Description
MA15 full range DSP-controlled speaker, is molded and made from new polypropylene composite material, with fashionable design, supreme performance. Audiocenter BrainCore™ Technology, provides the best sound quality by analyzing and processing input signal, integrated Class D amplifier and DSP module optimally, improving the audio performance of the system significantly. Built-in Bluetooth, link with various smart devices easily.
MA15 can be used as PA speakers and stage monitor. There are multiple ways of mounting and installation, for example, pole mount with a three-feet stand, or hanging installation.
Specifications
|
Type |
Portable Active DSP-controlled Speaker |
|
Frequency Response(-6dB anechoic chamber) |
45Hz-20kHz |
|
Maximum Calculated SPL/1M (Continuous/Peak) |
128dB/134dB |
|
LF Driver |
Customized 15” driver, 3” voice coil |
|
HF Driver |
Customized driver, 1.4” voice coil and 1.0”exit |
|
Horizontal Coverage Angle (Symmetrical) |
80° |
|
Vertical Coverage Angle (Symmetrical) |
50° |
|
AMPLIFIER |
|
|
Amplifier Circuitry |
Class D |
|
Power(Peak) |
1600W |
|
Frequency Response(1W 8Ω 2ch) |
20Hz-20kHz(±1dB) |
|
Intermodulation Distortion |
＜0.05% |
|
Total Harmonic Distortion |
＜0.05% |
|
Protection |
DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
|
Cooling System |
Air convection |
|
DSP |
|
|
Processor |
96kHz signal sampling frequency, 24bit precision |
|
Crossover |
Controlled by DSP |
|

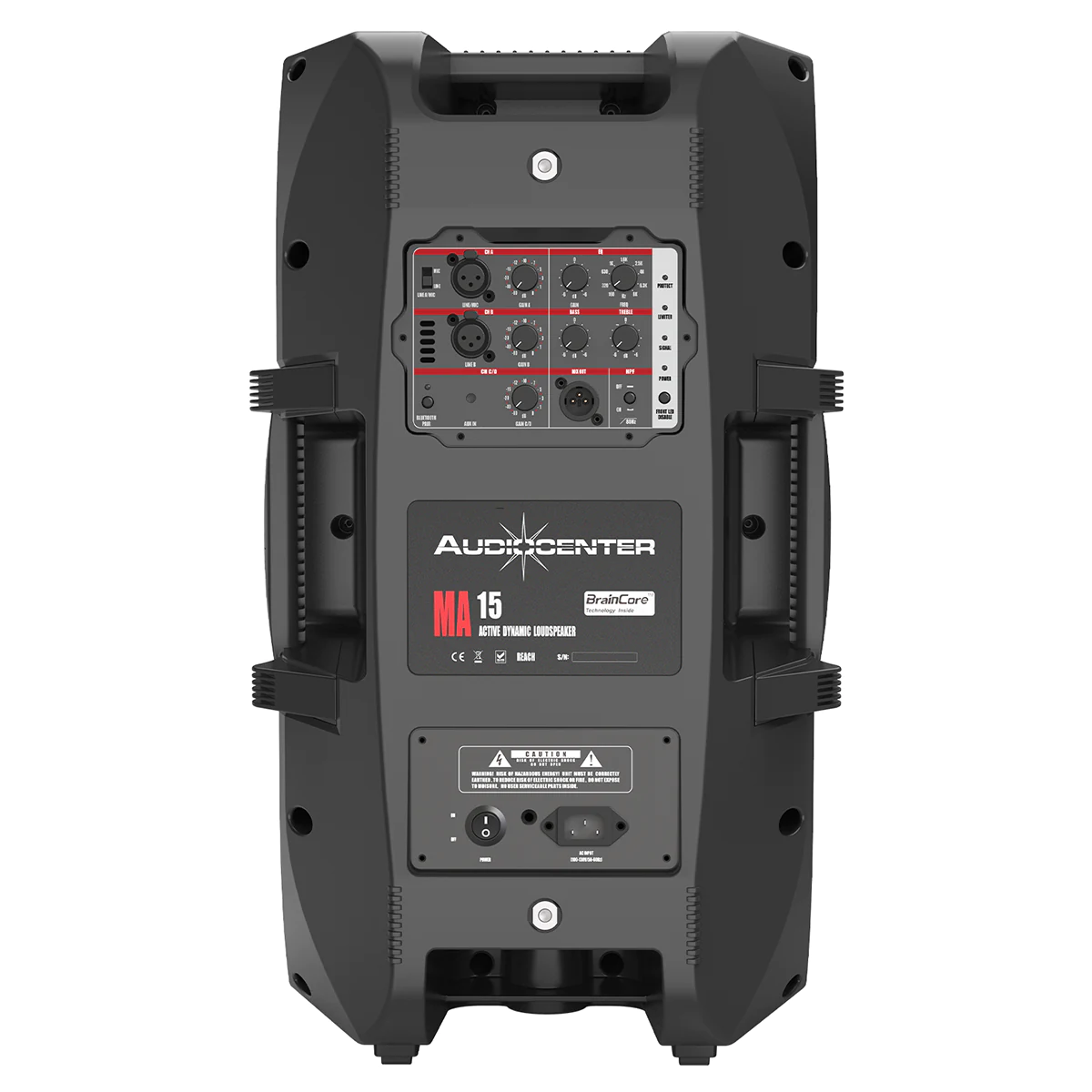

Output/Input |
|
|
Signal Input |
2×female XLR(Mono jack 6.35)、1×wireless bluetooth、1×Mini jack 3.5 |
|
Signal Output |
1× male XLR |
|
Power Input |
IEC power connector |
|
Working Voltage |
100-240V (±10%，50/60Hz） |
|
Cabinet |
|
|

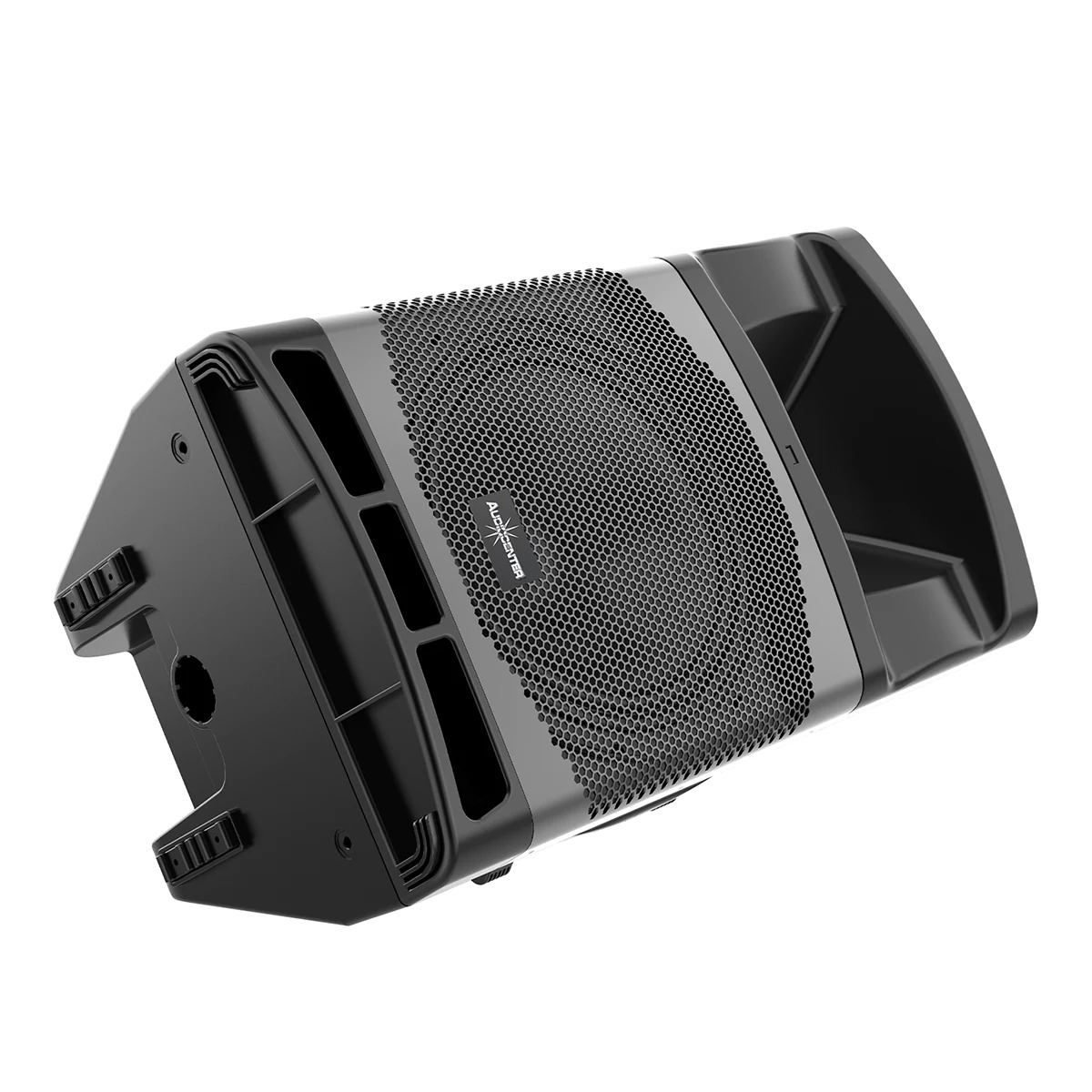

Monitor function |
Symmetrical 45° monitor angle |
|
Cabinet Material |
New polypropylene composite material |
|
Pole Mount |
Φ35mm |
|
Dimension(W×H×D) |
417×702×426mm |
|
Net Weight |
17.5Kg |
