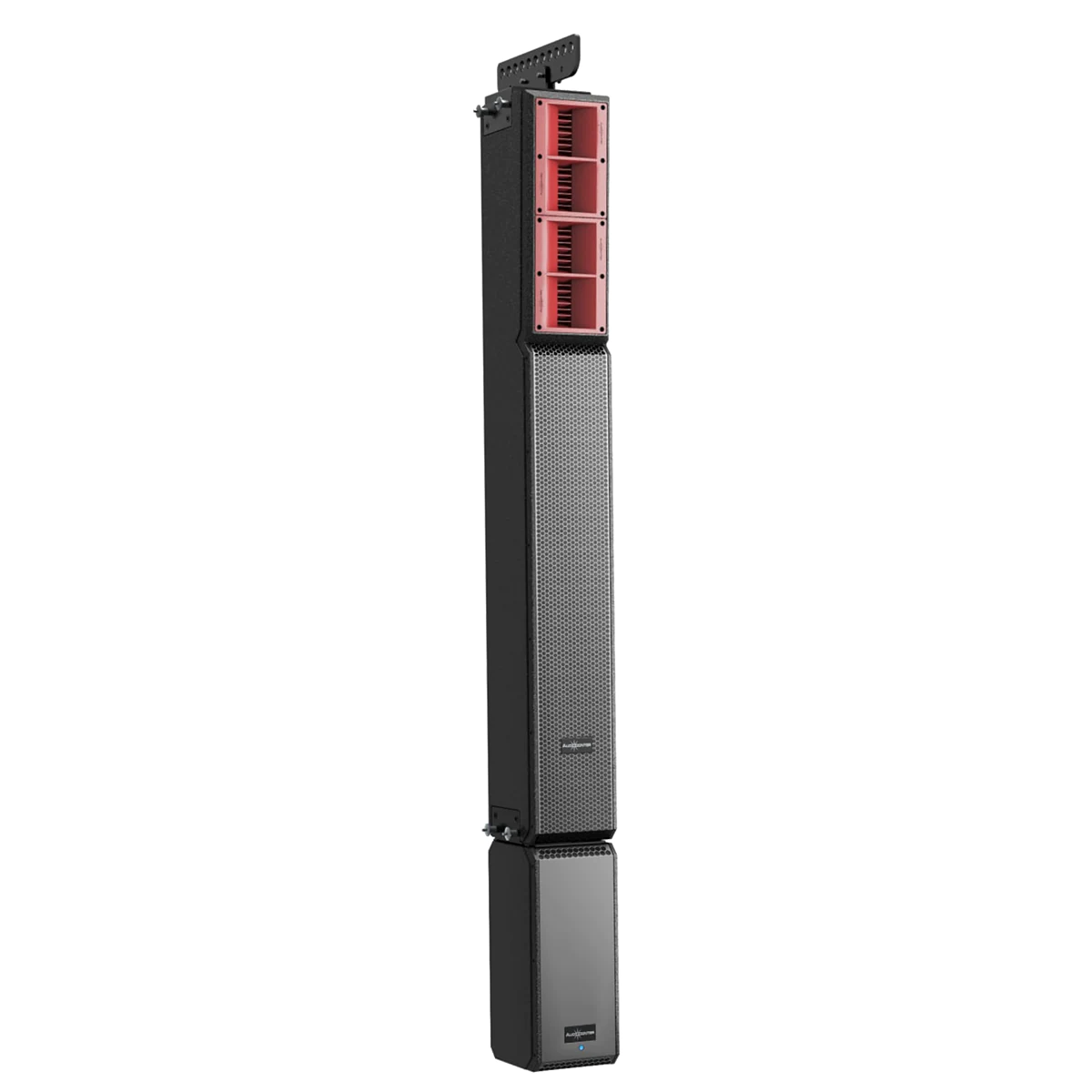

Audiocenter L65 MK2+L65A MK2 Speaker Portable Column PA System 18 Inch 3 Way 1400 Watt
Compact multi-purpose active DSP column system
100% ORIGINAL
HARGA Kompetitif
GARANSI Resmi
AFTERSALES Service
Description
L65+L65A is a compact multi-purpose active DSP column system, consisting of a passive full-range loudspeaker L65 and a multi-channel digital power amplifier L65A with DSP switching power supply.
L65 passive full-range speaker column consists of 6pcs 5″ customized AUDIOCENTER ferrite drivers and 4pcs 1″ customized BEYMA ferrite drivers. The driver design is arranged by sophisticated measurement and physical calibra-tion technology Phycal™ to improve vertical acoustic beam coverage. The ETE™ waveguide system developed by Audiocenter forms cylindrical wave, then couples continually, working together with customized horn design to realize the perfect joint of frequency response, which provides the accurate horizontal coverage and ensures the well-balanced, clean and clear sound. L65 can meet the reinforcement application in different venues and complex space.
L65A active DSP switching power supply with multi-channel digital power amplifier is built into the bottom of the column system and can be combined according to the requirements of the actual application scenario.
Features
- Innovative ETETM Waveguide Technology
- Innovative PhycalTM (Physical calibration)Technology
- Customized ProDriver
- Elegant Outlook
- Portable and easy installation
- Class D Amplifier
- Advanced Cooling System
- Built-in Bluetooth
- Plug-and-Play, quick setup and easy use
- Unique Physical Acoustics Design
Specifications
| Type | Active DSP-controlled Column Speaker System |
| Frequency Response(-6dB anechoic chamber) | 75Hz-20KHz |
| Maximum Calculated
SPL/1M |
134dB |
| LF Driver | Customized Audiocenter ferrite driver, 6pcs 5” drivers |
| HF Driver | Customized BEYMA ferrite driver, 4pcs 1” drivers |
| Horizontal Coverage Angle(Symmetrical) | 110° |
| Vertical Coverage Angle(Symmetrical) | 10° |
| DSP | |
| Processor
Crossover |
96KHz signal sampling frequency, 24bit precision controlled by DSP |
| Class D amplifier | |
| Power | 1400W |
| Frequency Response | 20Hz-20KHz(±0.5dB) |
| Intermodulation Distortion | ＜0.05% |
| Total Harmonic Distortion | ＜0.05% |
| Protection | DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
| Cooling System | Fans + air convection |
| Output/Input | |
| Signal Input | 2×Combo (NEUTRIK® female XLR & Mono jack 6.35), 1×RCA |
| Signal Output | 1×NEUTRIK®male XLR |
| Amplifier Output Link L65 | 1×NEUTRIK® NL4MP |
| Column Input Link L65-A | 1×NEUTRIK® NL4MP |
| Power Input | Power connector |
| Working Voltage | 100-130V/60Hz or 220-240V/50Hz |
| Cabinet | |
| Cabinet Material | CNC made of excellent wood |
| Base bracket hole | Φ35mm (0/10° adjustable) |
| Cabinet Color | Black is standard and default color. Consult with Audiocenter sales team for other customized colors |
| Dimension(W×H×D) | |
| L65 | 156×1224×177mm |
| L65A | 156×365×177mm |
| Height for 1pc L65+1pc L65A | 1596mm |
| Net Weight | |
| L65 | 18Kg |
| L65A | 5Kg |
