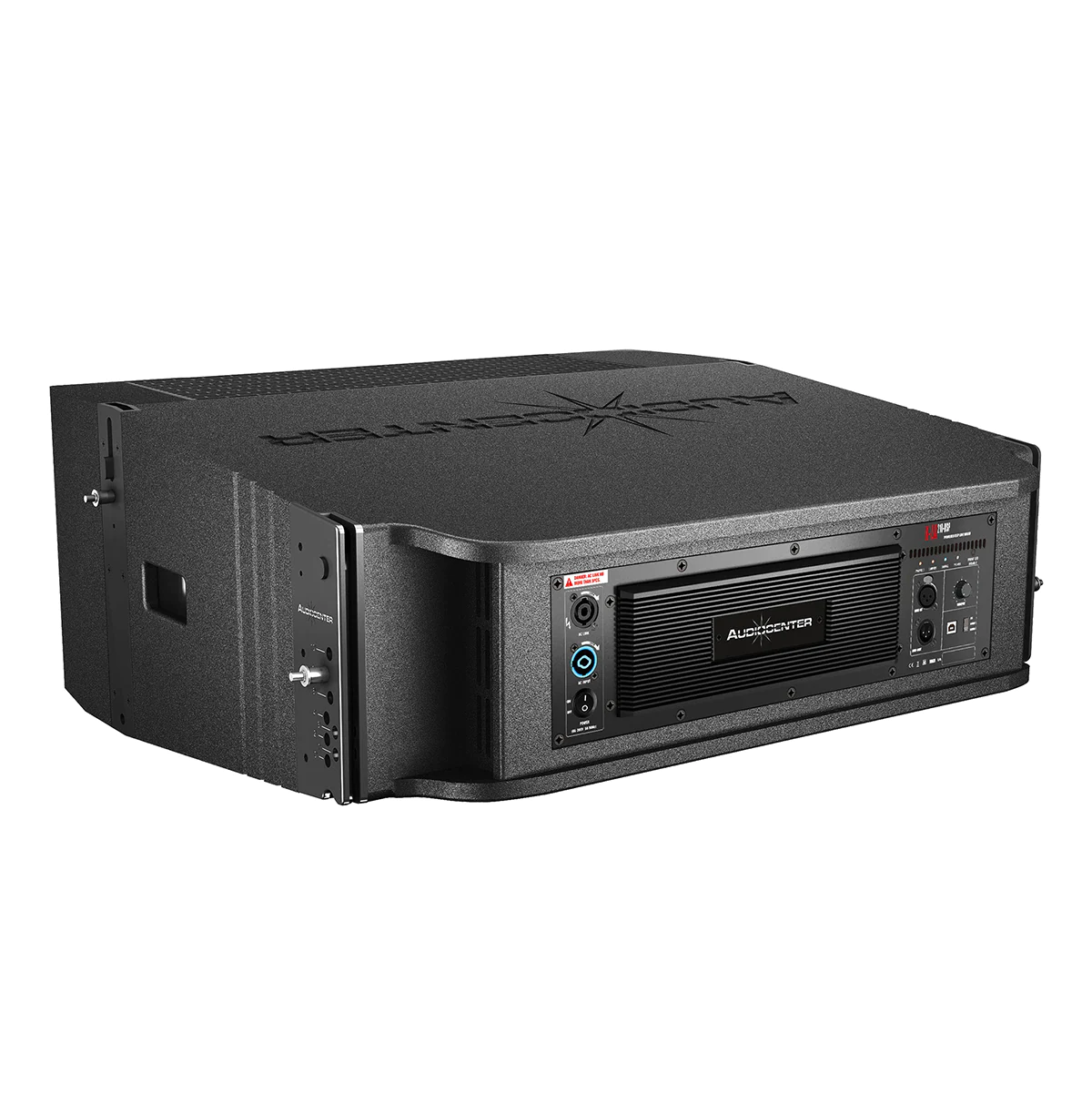

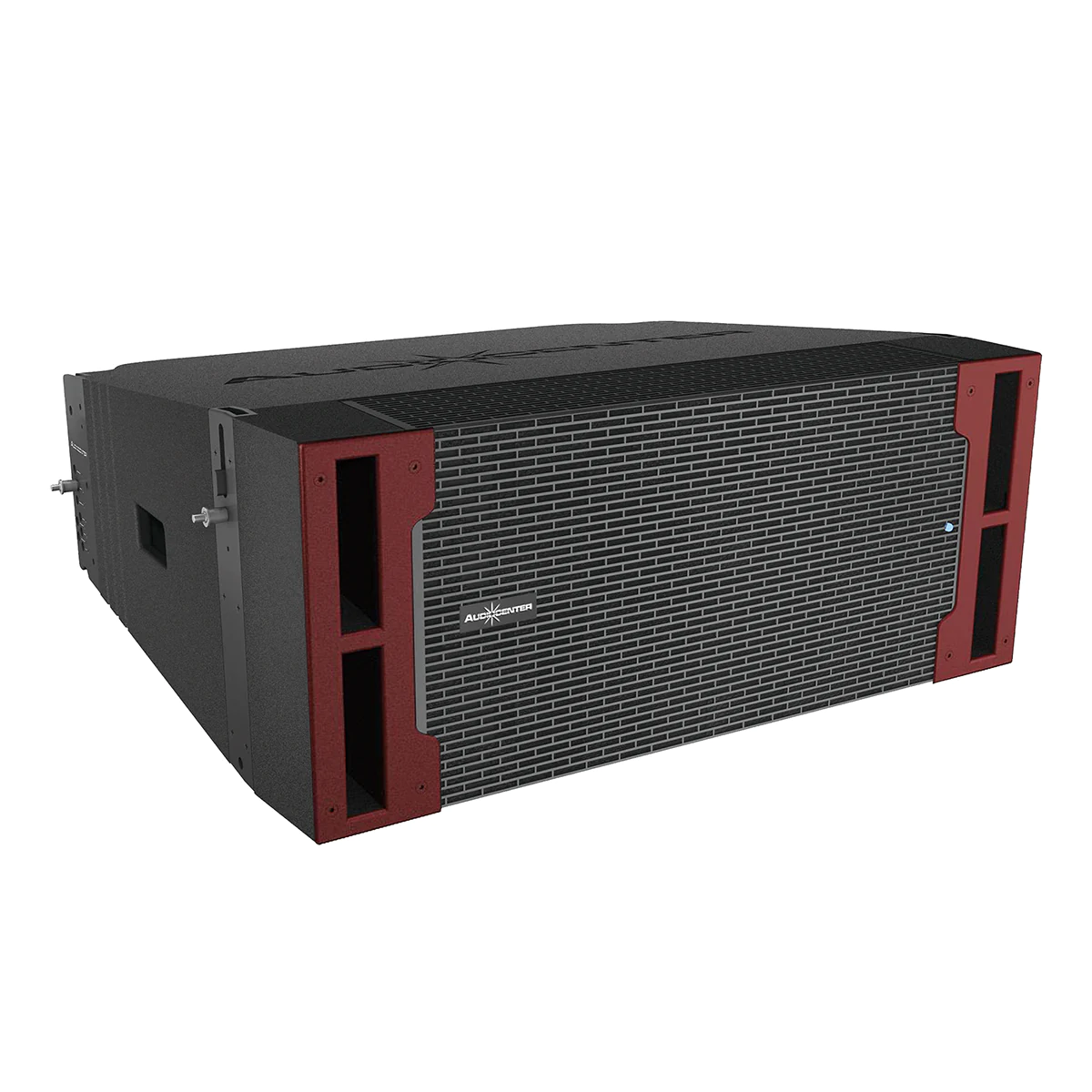

Audiocenter K-LA210-DSP Speaker Line Array Aktif 2×10 Inch 2 Way 3200 Watt
Dual 10” two-way active DSP controlled line array speaker
100% ORIGINAL
HARGA Kompetitif
GARANSI Resmi
AFTERSALES Service
Description
K-LA210-DSP, an active DSP-controlled line array speaker, is designed for high requirements of touring performance, rental and fixed installation.
The HF driver of K-LA210-DSP is customized driver with composite membrane (3”voice coil), and the LF driver are two customized 10” drivers (2.5”voice coil).
User Selectable 3 presets (Linear,HFX,W/SUB) in K-LA210-DSP are available for the users to choose according to different environments and music styles.
K-LA210-DSP system can be used as main PA system with 6 cabinets minimum and 16 cabinets maximum per array.
K-LA210-DSP can be suspended vertically. The integrated hardware with innovative fast lock mechanics built-in to the cabinet with high intensity 9.5mm pins make installation easy and convenient. The system can be combined in modularization according to the coverage angle of place, which can meet the requirements of different applications. For those places where the system can not be flied, there are customized frames suitable for ground stacking (maximum 4 cabinets) to meet different requirements of installation and reinforcement environment.
Features
- Customized driver
- PTV phase plug design for an extremely precise dispersion, HF horn design ensures even coverage and optimized for smooth frequency response
- Hi end digital controller on board (DSP) with 96KHz signal sampling frequency, 56bit precision
- Standby mode automatically if without signal input for 15mins
- Class D amplifier
- Advanced cooling system in the driver
- Optimized and compact elegant premium design cabinet
- Rock solid humidity free birch plywood CNC made cabinet
- Comprehensive accessories suitable for different applications
Specifications
|
Type |
Active DSP-controlled full range loudspeaker |
|
Frequency Response(-6dB anechoic chamber) |
57Hz-18kHz |
|
Maximum Calculated SPL/1M (Continuous/Peak) |
129dB/135dB |
|
LF Driver |
Customized 10” driver, 2.5” voice coil |
|
HF Driver |
Customized driver, 3” voice coil and 1.4”exit |
|
Horizontal Coverage Angle (Symmetrical) |
100° |
|
Vertical Coverage Angle (Symmetrical) |
Depend on the amount of the speaker and curvature of the line array |
|
AMPLIFIER |
|
|
Amplifier Circuitry |
Class D |
|
Power(Peak) |
1600W |
|
Frequency Response(1W 8Ω 2ch) |
20Hz-20kHz(±0.5dB) |
|
Intermodulation Distortion |
＜0.05% |
|
Total Harmonic Distortion |
＜0.05% |
|
Protection |
DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
|
Cooling System |
Cooling with fans |
|
DSP |
|
|
Processor |
96kHz signal sampling frequency, 56bit precision |
|
Presets |
Linear, HFX, W/SUB |
|
Output/Input |
|
|
Signal Input |
1× female XLR |
|
Signal Output |
1× male XLR |
|
Power Input |
Power connector |
|
Power Output |
Power connector |
|
Working Voltage |
100V~130V or 220V~240V(±10%,50/60Hz) |
|
Cabinet |
|
|
Angle Adjustment |
0°,1°, 2°,3°, 4°, 6°, 8°, 10° |
|
Cabinet Material |
Russian birch plywood CNC made |
|
Cabinet Color |
Black is standard and default color. Consult with Audiocenter sales team for other customized colors |
|
Dimension(W×H×D) |
742×302×695mm |
|
Net Weight |
38.5Kg |
