AUDIOCENTER Butterfly 4ca Speaker Line Array Pasif 4 Inch 2 Way 16 Ohm 240 Watt (High Impedance, Waterproof)
AUDIOCENTER Butterfly 4ca Speaker Line Array Pasif 4 Inch 2 Way 16 Ohm 240 Watt (High Impedance, Waterproof) - Image 2

AUDIOCENTER Butterfly 4ca Speaker Line Array Pasif 4 Inch 2 Way 16 Ohm 240 Watt (High Impedance, Waterproof)

Chat Penjual
Category: Tag: Brand:
Audiocenter
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

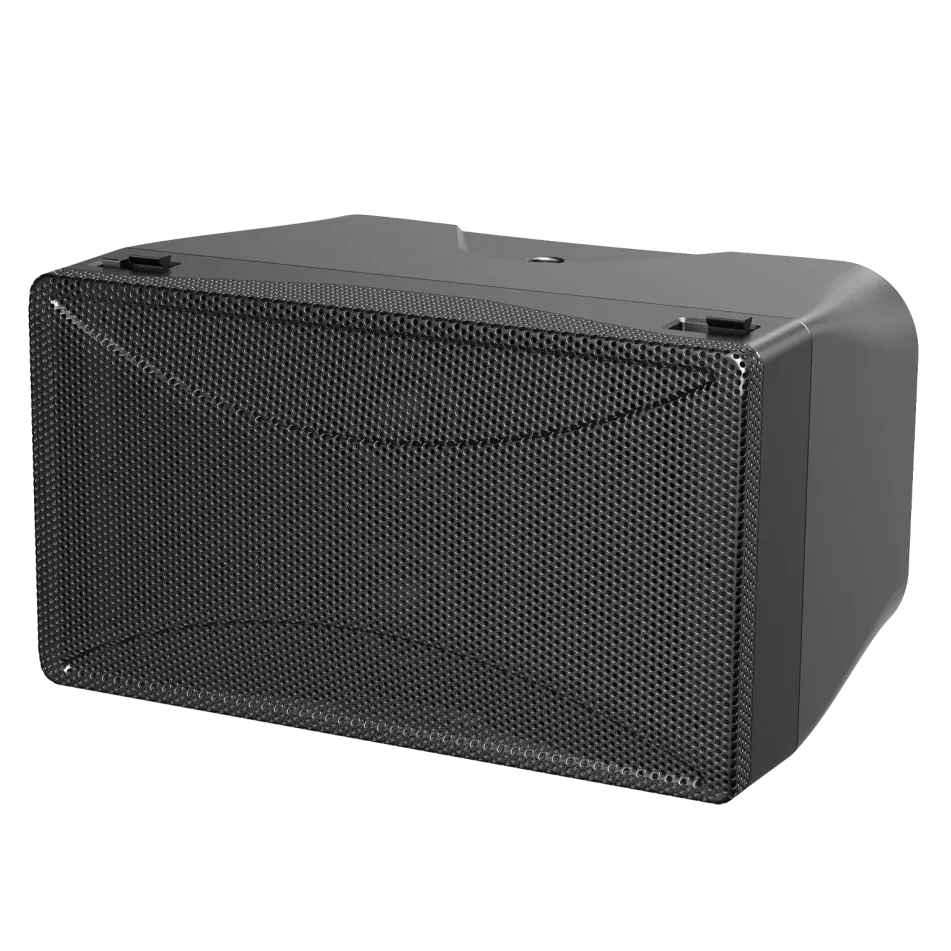

Butterfly 4ca consists of 1 pc 4” LF driver and 2 pcs soft dome tweeters. The HF adopts a unique T-eyeTM design, and the array layout is assembled in the center front of the speaker. The speaker has a wider frequency response and larger near-field coverage, and the sound is more delicate.

Butterfly 4ca adopts a modular design concept, which can be used individually or in combination with multiple speakers. It has good scalability and can flexibly adapt to various environments and occasions.

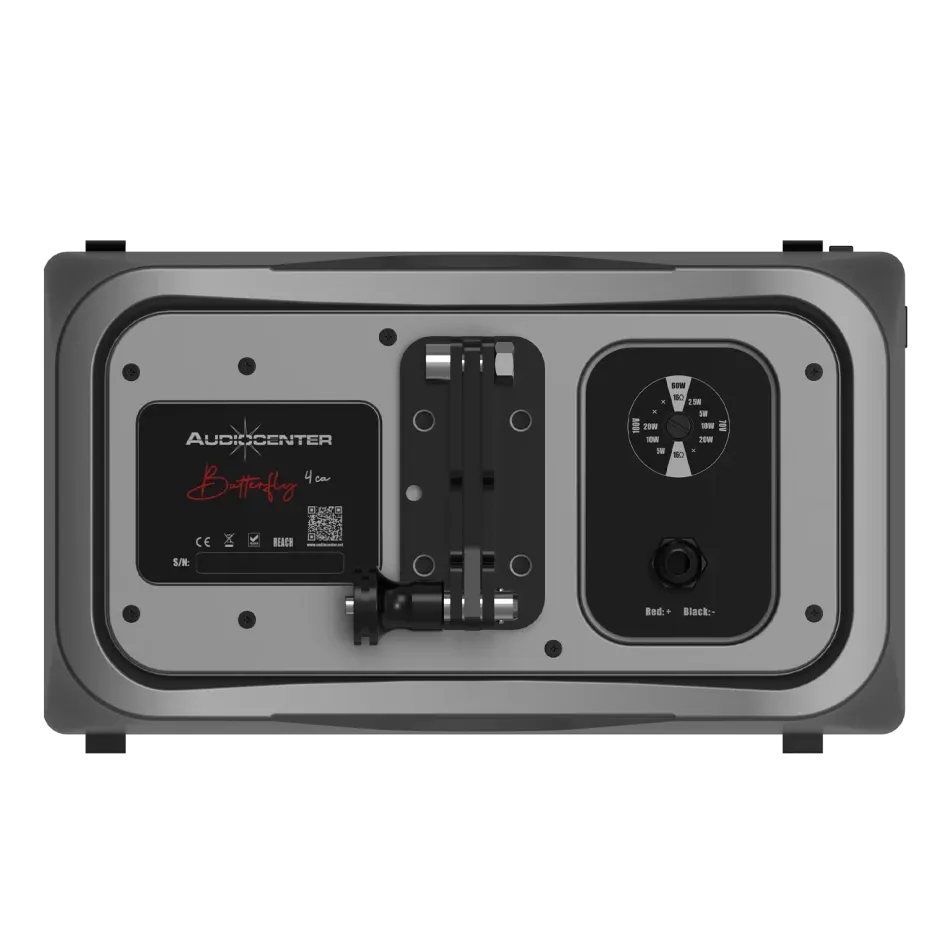

Butterfly is with both high Z (70V/100V) and low Z（16Ω）output.
70V: 2.5W/5W/10W/20W
100V:5W/10W/20W/x

Specifications

Type

Multipurpose Micro-Line Array Loudspeaker

Low Z Power

60W

High Z Power

70V:2.5W/5W/10W/20W

100V:5W/10W/20W/x

Frequency Response(-10dB)

100Hz-22kHz

Horizontal Coverage

100°

Vertical Coverage

20°

Maximum Calculated SPL/1M (Continuous/Peak)

111dB/117dB

HF Driver

2×1” driver

LF Driver

4” driver,1” voice coil

Impedance

16Ω

Crossover Mode

Passive Crossover

Input Connectors

All-weather protective connector

Cabinet Material

ABS plastic material

Angle adjustment

0°,4°

Cabinet Color

Metal gray

Grille

Aluminium mesh

Mesh Color

Metal gray is standard and default color,

Contact Audiocenter for customization

Pole Mount

M10

Optional accessories

Hanging Bracket, Wall Mount Bracket, Support Bracket

Speaker Dimensions(W×H×D)

215×122×165mm

Carton Dimensions(W×H×D)

253×160×247mm

Net Weight

2.5kg

Shipping Weight

2.9kg

Technical Support and After-sales Service

Global application support team,EASE GLL Files
