AUDIOCENTER Artist T45-DSP Speaker Line Array 4×5 Inch 2 Way 2000 Watt
Artist T45-DSP active DSP-controlled line array adopts front bass reflex design and elaborate driver layout, the cabinet is very small and lightweight.
100% ORIGINAL
HARGA Kompetitif
GARANSI Resmi
AFTERSALES Service
Description
Artist T45-DSP active DSP-controlled line array adopts front bass reflex design and elaborate driver layout, the cabinet is very small and lightweight. With innovative ETE™ wave guide technology, T45-DSP delivers supreme sound performance that no need too much correction while tuning. T45-DSP is very compact, but with very high SPL and long throw.

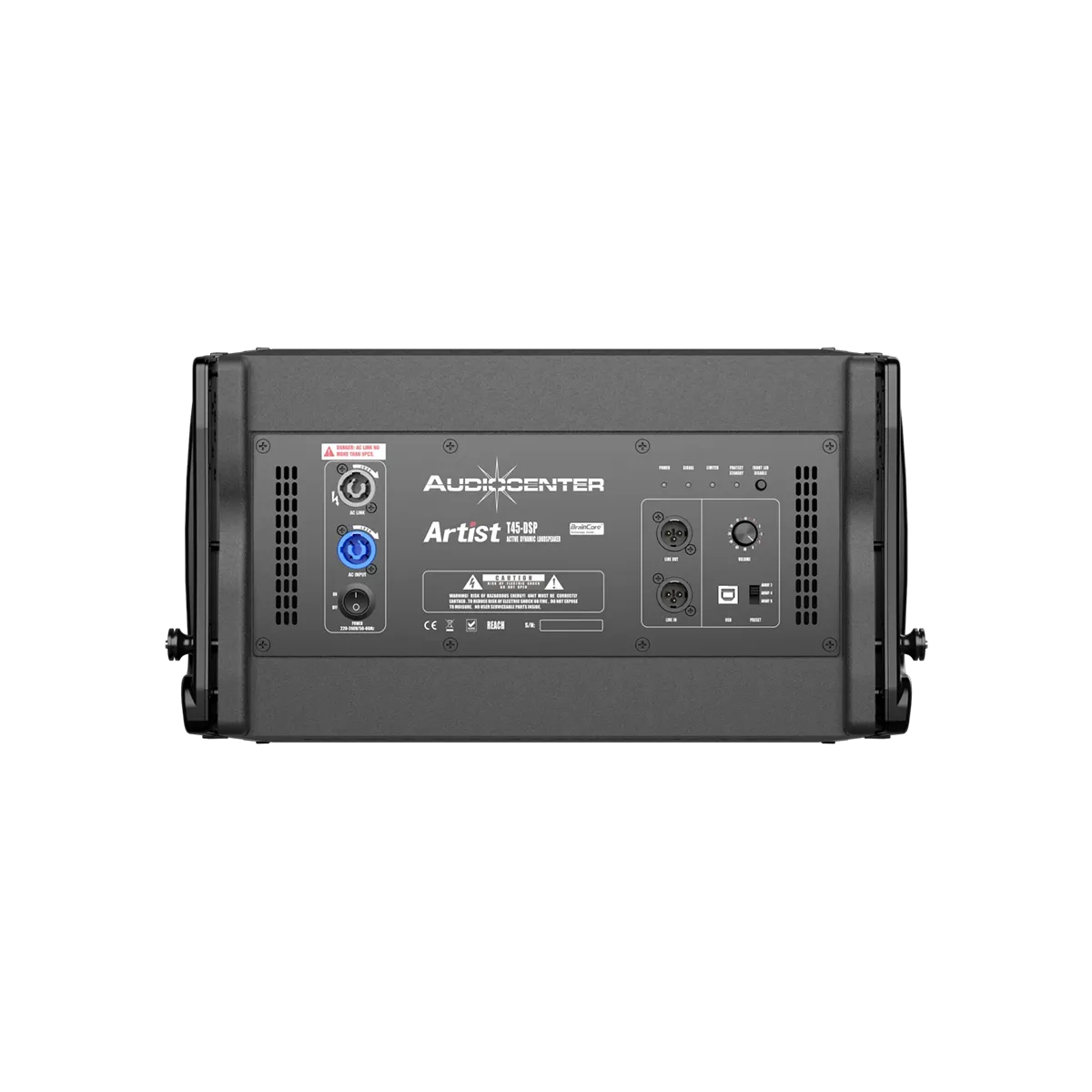

Artist T45-DSP is highly integrated with the BrainCore™ technology. 3 presets can be recalled easily by the switch on back panel. It is a plug and play system with user-friendly ergonomic design accessories to ensure easy and quick installation. The angle of the fly bar can be adjusted 0.5 °, 1.5 °, 3 °, 5 °, 7 °, 10° according to different venues.
Key Features
- Maximum SPL 136 dB
- Customized driver
- The innovative ETETM waveguide technology can ensure excellent frequency response, to achieve very smooth transitions between HF and LF, which provides precise horizontal coverage and ensures clear and balanced sound for the system.
- Built in DSP with 96kHz signal sampling frequency
- Class D amplifier
- Advanced cooling system in the driver
- Optimized, compact and light weight cabinet design for easy usage
- Comprehensive accessories for different applications
Specifications
|
Type |
Active DSP-controlled line array loudspeaker |
|
Frequency Response(-10dB) |
63Hz-20kHz |
|
Horizontal Coverage |
120° |
|
Vertical Coverage |
Splay angle dependent |
|
Maximum Calculated SPL/1M (Continuous/Peak) |
130dB/136dB |
|
HF |
Customized driver,1.0” voice coil,1.0” exit |
|
LF |
Customized 4X5” driver, 1.0” voice coil |
|
DSP |
DSP |
|
Processor |
96kHz signal sampling frequency |
|
Presets |
ARRAY2,ARRAY4,ARRAY6 |
|
AMPLIFIER |
AMPLIFIER |
|
Amplifier Circuitry |
Class D |
|
Power(RMS standards) |
1000W |
|
Peak Power |
2000W |
|
Frequency Response(1W 8Ω 2ch) |
20Hz-20kHz(±0.5dB) |
|
Intermodulation Distortion (20Hz-20kHz, half power) |
＜0.05% |
|
Total Harmonic Distortion (20Hz-20kHz,Rated power 8Ω) |
＜0.05% |
|
Cooling System |
Cooling with fans, air convection |
|
Protection |
DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
|
Signal Input Connectors |
Female XLR |
|
Signal Output Connectors |
Male XLR |
|
Power Input Connectors |
Power connector |
|
Power Output Connectors |
Power connector |
|
Working Voltage |
100V-130V~ or 220V-240V~(±10%,50/60Hz) |
|
Power consumption (1/8 output power) |
65W |
|
CABINET |
|
|
Cabinet |
CNC made of excellent wood |
|
Angle Adjustment |
0.5°, 1.5°, 3°, 5°, 7°, 10° |
|
Coating |
Durable Polyurea Coating |
|
Cabinet Color |
Black is the default color. Contact Audiocenter for customization |
|
Grille |
Iron mesh |
|
Handles |
2 side |
|
Optional Accessories |
Flightcase with 100mm wheels / Durable rain bag/ Frame for flying and ground stacking |
|
Speaker Dimension(W×H×D) |
458×293×381mm |
|
Carton Dimension(W×H×D) |
389×553×476mm |
|
Net Weight |
18.0kg |
|
Shipping Weight |
20.5kg |
|
Technical Support and After-sales Service |
Global application support team，EASE GLL files available |
