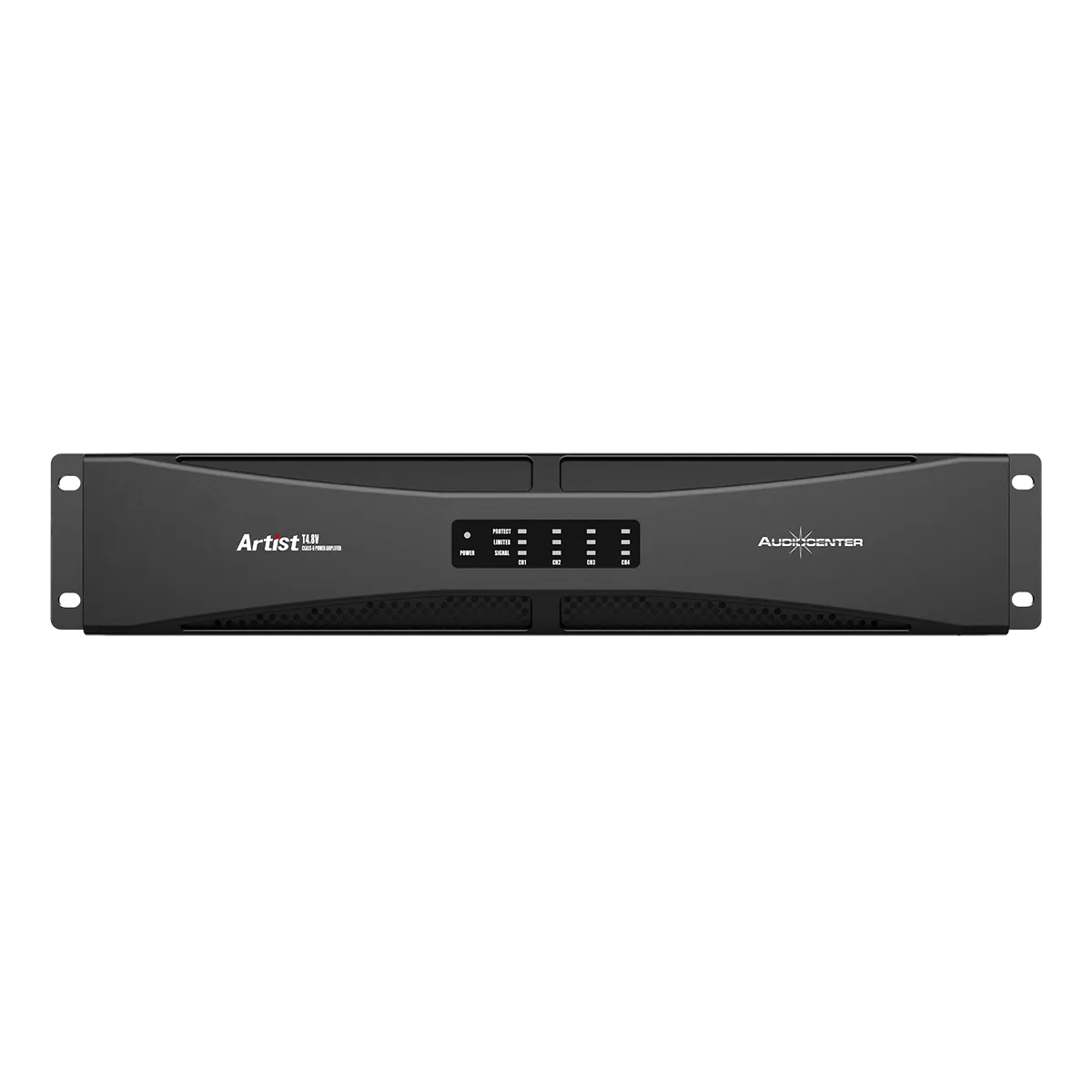

AUDIOCENTER Artist T4.8V
Class D amplifier
100% ORIGINAL
HARGA Kompetitif
GARANSI Resmi
AFTERSALES Service
Description
Artist T4.8V is with switch mode power supply and Class D circuit design, with high working efficiency, light weight and good reliability.
Artist T4.8V multi channel Class D amps are with low impedance output and 70/100V output. For low impedance output, output power is 400W@8ohm each channel. Each channel can work at 4ohm. For 70/100V output, it’s 100V/1000W or 70V/ 800W.
Artist T4.8V is with modular design. Every two channels share one separate power supply and amplifier system.
With elaborately selected components and state-of-the-art craftwork, Artist T4.8V have very good fidelity and high damping factor. It’s good choice for music reproduction, speech and AV system integration.
Specifications
|
Output Power（1kHz 20ms Burst THD+N=1%） |
8Ω Stereo |
4x400W |
|
4Ω Stereo |
4x800W |
|
|
Hi-Z(70V) |
2x800W |
|
|
Hi-Z(100V) |
2x1000W |
|
|
Protection System |
DC protection / Short circuit protection / Smart overheat management / Overheat protection / Input overload protection /Output overload protection / Soft startup protection / Limiter protection |
|
|
Working mode |
Stereo,Parallel,70V/100V |
|
|

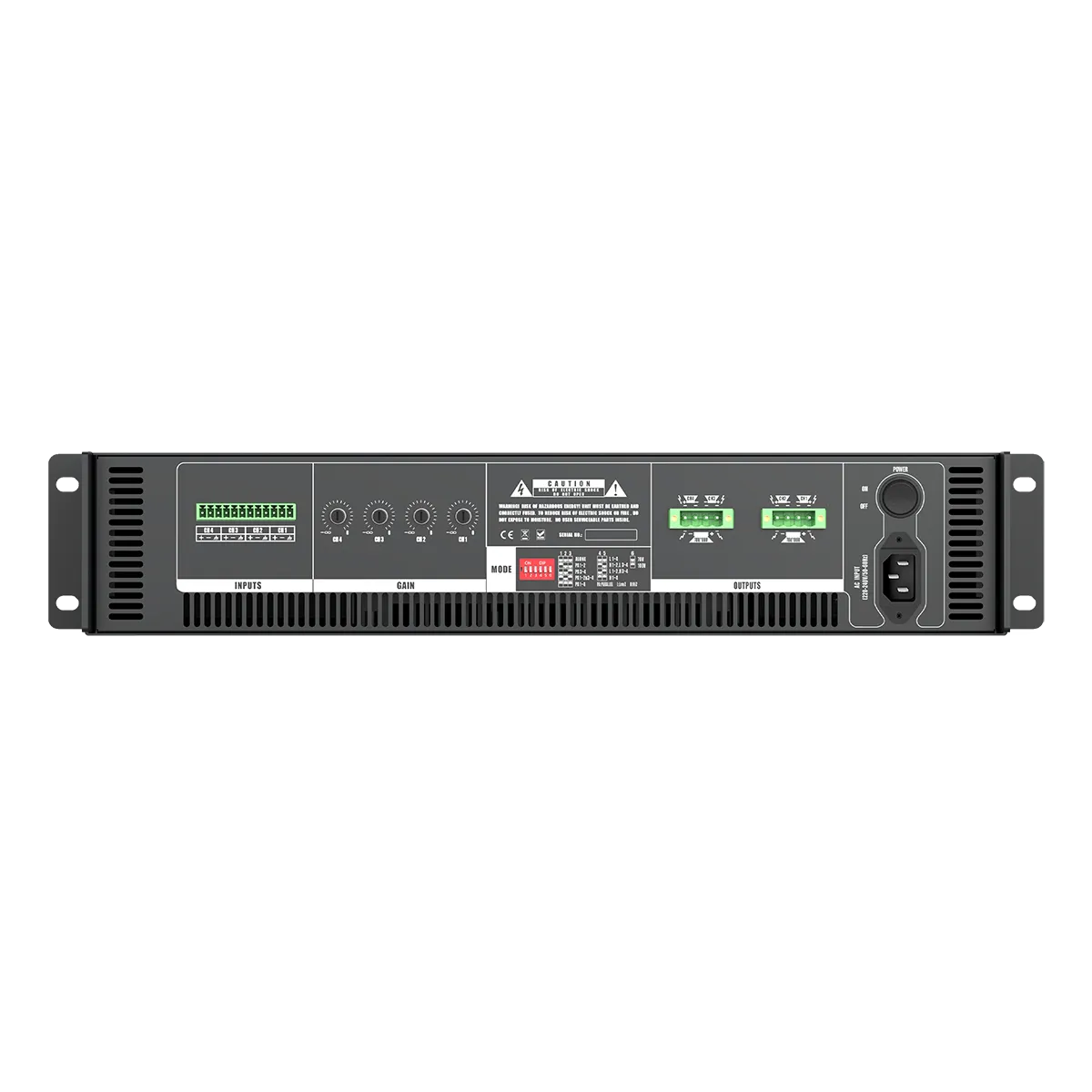

Input Connectors |
1×12-pin Euroblock（3.81mm） |
|
|
Output Connectors |
2×4-pin Euroblock（5.08mm） |
|
|
Input Impedance |
Balanced ≥20kΩ/ Unbalanced ≥10 kΩ |
|
|
Maximum input voltage |
≥20dBu |
|
|
Gain |
Stereo/Parallel：32dB； 70V/100V：38dB |
|
|
Frequency response(1W 8Ω stereo) |
20Hz-20kHz（±0.5dB） |
|
|
Crosstalk(1kHz, Rated power 8Ω, A weighted) |
≥60dB |
|
|
S/N Ratio(Rated power 8Ω, A weighted) |
≥108dB |
|
|
Damping Factor (1kHz&8Ω) |
≥500 |
|
|
Intermodulation Distortion(60Hz:7kHz=4:1, half power) |
≤0.05% |
|
|
Total Harmonic Distortion(1kHz, half power 8Ω, A weighted) |
≤0.05% |
|
|
Amplifier Type (Output Circuitry) |
Class D |
|
|
AC Power |
100-130V/220-240V(±10%,50-60Hz) |
|
|
Power consumption（1/8 output power） |
350W |
|
|
Rack space |
2U |
|
|
Cooling |
Fan cooling, blowing from front to back |
|
|
Dimension(W×H×D) |
483×88×410mm |
|
|
Net Weight |
8.5kg |
|
