AUDIOCENTER Artist T4.4V
Class D amplifier
100% ORIGINAL
HARGA Kompetitif
GARANSI Resmi
AFTERSALES Service
Description
Artist T4.4V is 4 channel Class D amplifier for commercial audio installation.

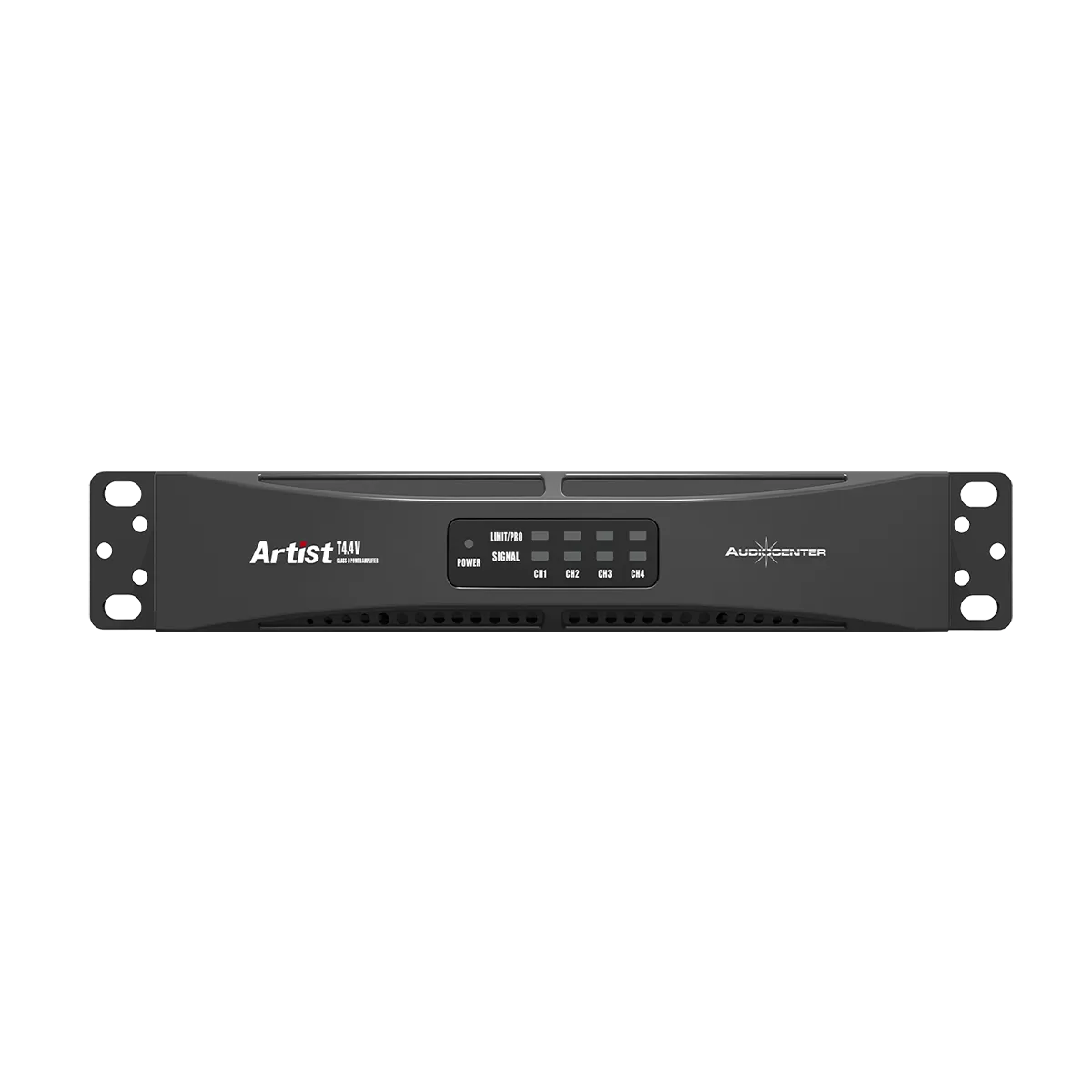

Artist T4.4V carries the renowned high reliability and outstanding sound performance delivered by AUDIOCENTER system. Both two models are with low impedance output and 70/100V outputs. T4.4V is with ultra compact 1U design and half 19″ rack space enclosure. With customized rack adapter, it allows for single installation or side-by-side (two devices) in a 19” equipment rack. Also can be mounted one table or wall.
Features
- Class-D amplifier technology with SMPS, high efficiency
- Built-in IC chip to control the input/output channels routing and the output
- power accurately
- With both low impedance output and 70/100V outputs
- Excellent reproduction clarity and outstanding high-definition sound
- Optimal cooling system and premium protection system makes extremely high reliability.
- Ultra compact 1U design and half 19″ rack space enclosure. Support AUDIOCENTER BrainCore CU processor.
- When input signal is lower than the set value for 45 mins, T2.4V/T4.4V will go into energy-saving standby mode.
- When input signal is bigger than the set value, it will wake up automatically.
Specifications
|
Output Power（1kHz 20ms Burst THD+N=1%） |
8Ω Stereo |
4x130W |
|
4Ω Stereo |
4x260W |
|
|
8Ω Bridge |
2x520W |
|
|
Hi-Z(70V) |
2x520W |
|
|
Hi-Z(100V) |
2x520W |
|
|
Protection System |
DC protection / Short circuit protection / Smart overheat management / Overheat protection / Input overload protection /Output overload protection / Soft startup protection / Limiter protection |
|
|
Working mode |
Stereo,Parallel,Bridge,70V/100V |
|
|

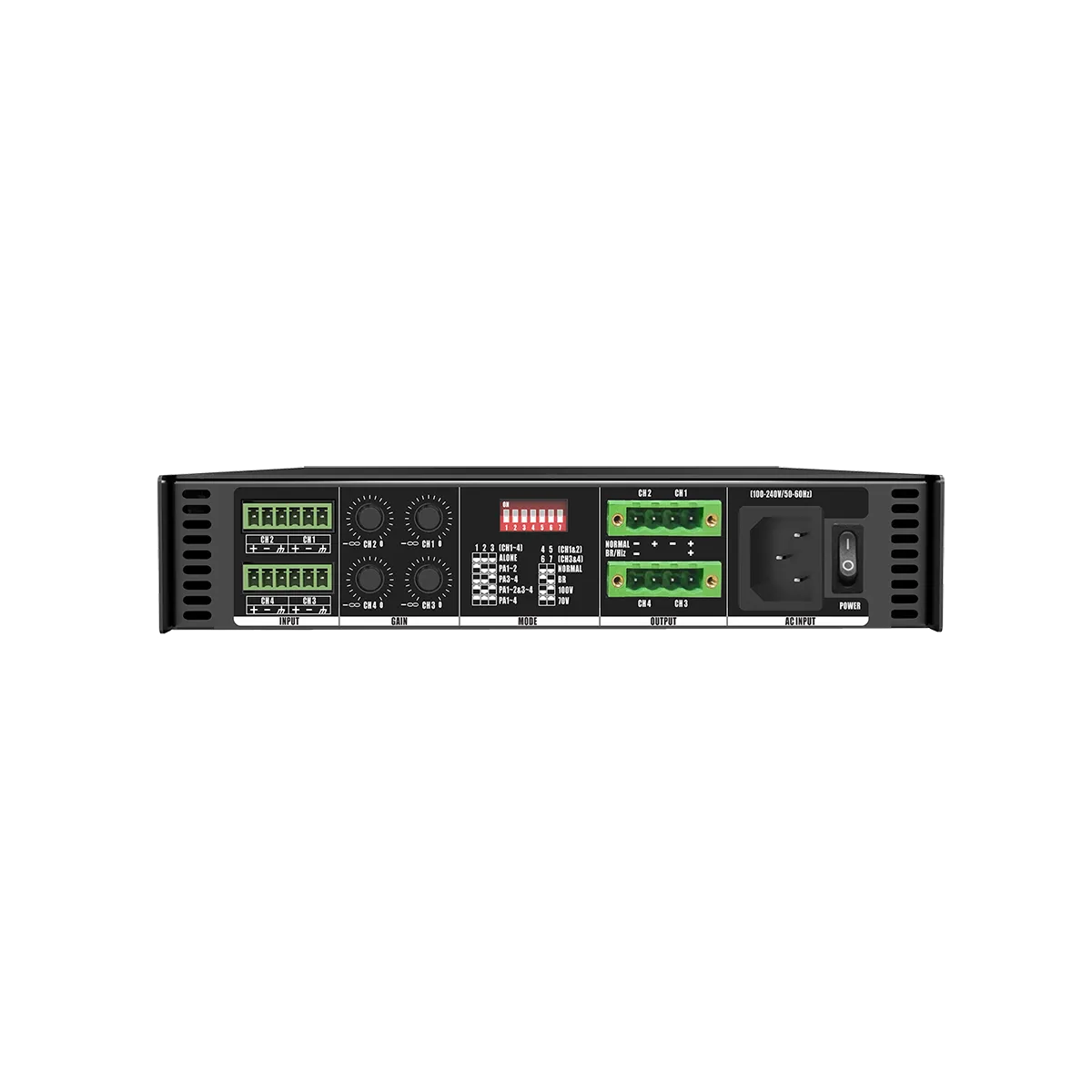

Input Connectors |
2×6-pin Euroblock（3.81mm） |
|
|
Output Connectors |
2×4-pin Euroblock（5.08mm） |
|
|
Input Impedance |
≥20kΩ（Balanced），≥10kΩ（Unbalanced） |
|
|
Maximum input voltage |
≥15dBu |
|
|
Gain |
Stereo：26dB； Bridge：32dB； 70V：34dB； 100V：37dB |
|
|
Frequency response(1W 8Ω stereo) |
20Hz-20kHz（±0.5dB） |
|
|
Crosstalk(1kHz, Rated power 8Ω, A weighted) |
≥70dB |
|
|
S/N Ratio(Rated power 8Ω, A weighted) |
≥100dB |
|
|
Damping Factor (1kHz&8Ω) |
≥200 |
|
|
Intermodulation Distortion(60Hz:7kHz=4:1, half power) |
≤0.05% |
|
|
Total Harmonic Distortion(1kHz, half power 8Ω, A weighted) |
≤0.05% |
|
|
Amplifier Type (Output Circuitry) |
Class-D |
|
|
AC Power |
100-240V(±10%，50-60Hz) |
|
|
Power consumption（1/8 output power） |
160W |
|
|
Rack space |
1U design and half 19” rack space enclosure |
|
|
Cooling |
Back to front venting,mandatory cooling |
|
|
Dimension(W×H×D) |
218×44×314mm |
|
|
Net Weight |
3.2kg |
|
