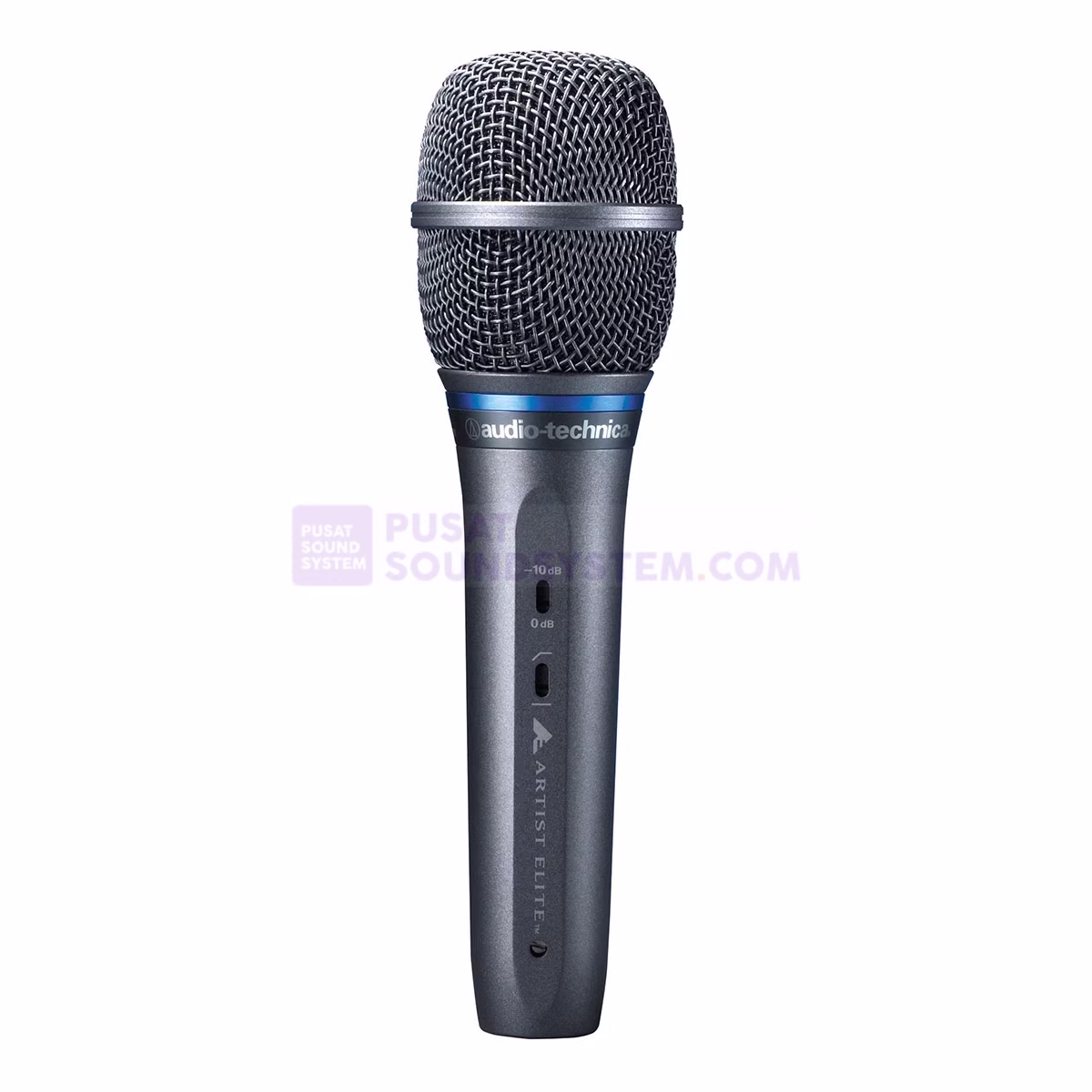

Audio Technica AE5400 Mic Vocal Handheld Handheld Cardioid

Description

The AE5400 is intended for use in professional applications where remote power is available. It requires 11V to 52V DC phantom power, which may be provided by a mixer or console, or by a separate, in-line source such as the Audio-Technica AT8801 single-channel or CP8506 four-channel phantom power supplies.

Output from the microphone’s XLRM-type connector is low impedance (Lo-Z) balanced. The signal appears across Pins 2 and 3; Pin 1 is ground (shield). Output phase is “Pin 2 hot” – positive acoustic pressure produces positive voltage at Pin 2. To avoid phase cancellation and poor sound, all mic cables must be wired consistently: Pin 1-to-Pin 1, etc.

When using the AE5400 in settings with a stage monitor speaker, the speaker should be located 180 off axis (at rear of the microphone). This placement, in conjunction with the microphone’s uniform cardioid pickup pattern, will virtually eliminate the possibility of undesired audio feedback.

An integral 80 Hz hi-pass filter provides easy switching from a flat frequency response to a low-end roll-off. The roll-off position reduces the microphone’s sensitivity to popping in close vocal use. It also reduces the pickup of low-frequency ambient noise (such as traffic, air-handling systems, etc.), room reverberation and mechanically-coupled vibrations. Avoid leaving the microphone in the open sun or in areas where temperatures exceed 110 F (43 C) for extended periods. Extremely high humidity should also be avoided.

Audio Technica AE5400 Features

• The ultimate vocal performance instrument
• Pristine sound quality demanded by the most discriminating microphone user
• Same large-diaphragm element as the renowned AT4050 studio microphone; true condenser design
• Superior anti-shock engineering ensures low handling noise and quiet performance
• High-quality double-sided PCB uses surface-mount components. Extensive grounding plane and attention to best-practice grounding methods minimize electrical noise
• Multi-stage grille design offers excellent protection against plosives and sibilance without compromising high-frequency clarity
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
• Custom transformer improves performance specifications by isolating against noise and RF interference, and providing excellent saturation characteristics that contribute to smooth linear sound quality
• Robust design for enduring dependability on the road
• Quiet-Flex™ stand clamp provides silent, flexible microphone positioning
• Integral 80 Hz HPF switch and 10 dB pad
