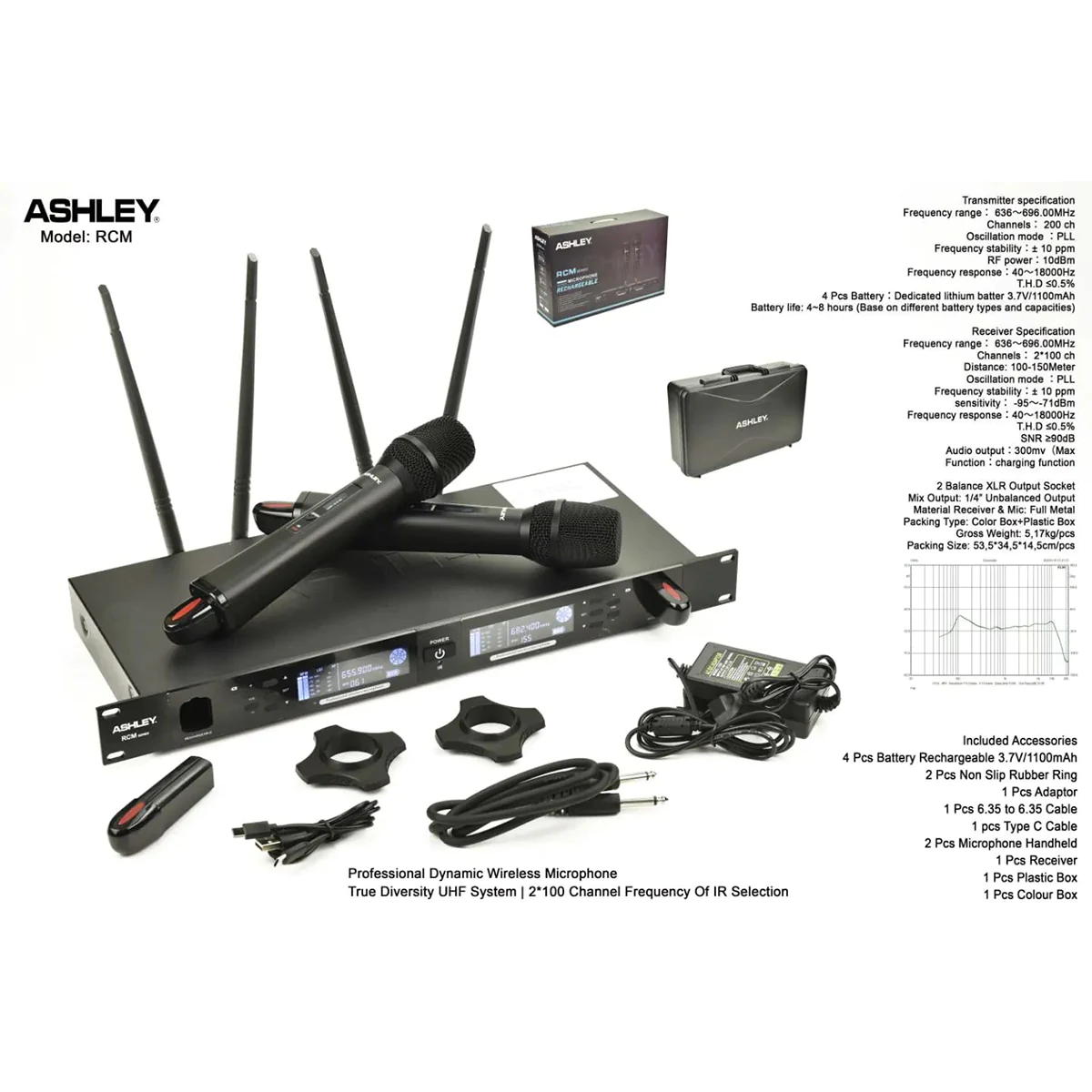

Description
Transmitter specification
Frequency range : 636~696.00MHz
Channels : 200 ch
Oscillation mode : PLL
Frequency stability : + 10 ppm
RF power : 10dBm
Frequency response : 40~18000Hz
TH.D ≤0.5%
4 Pcs Battery : Dedicated lithium batter 3.7V/1100mAh
Battery life: 4~8 hours (Base on different battery types and capacities)
Receiver Specification
Frequency range : 636~696.00MHz
Channels : 2*100 ch
Distance: 100-150Meter
Oscillation mode : PLL
Frequency stability : ± 10 ppm
sensitivity © -85~-71dBm
Frequency response : 40~18000Hz
TH.D 50.5%
SNR 290dB
Audio output : 300mv (Max
Function : charging function
2 Balance XLR Output Socket
Mix Output: 1/4″ Unbalanced Output
Material Receiver & Mic: Full Metal
Packing Type: Color Box+Plastic Box
Gross Weight: 5,17kg/pcs
Packing Size: 53,5*34,5*14,5/pcs
Included Accessories
4 Pcs Battery Rechargeable 3.7V/1100mAh
2 Pcs Non Slip Rubber Ring
1 Pcs Adaptor
1 Pcs 6.35 to 6.35 Cable
1 pes Type C Cable
2 Pcs Microphone Handheld
1 Pcs Receiver
1 Pcs Plastic Box
1 Pcs Colour Box
