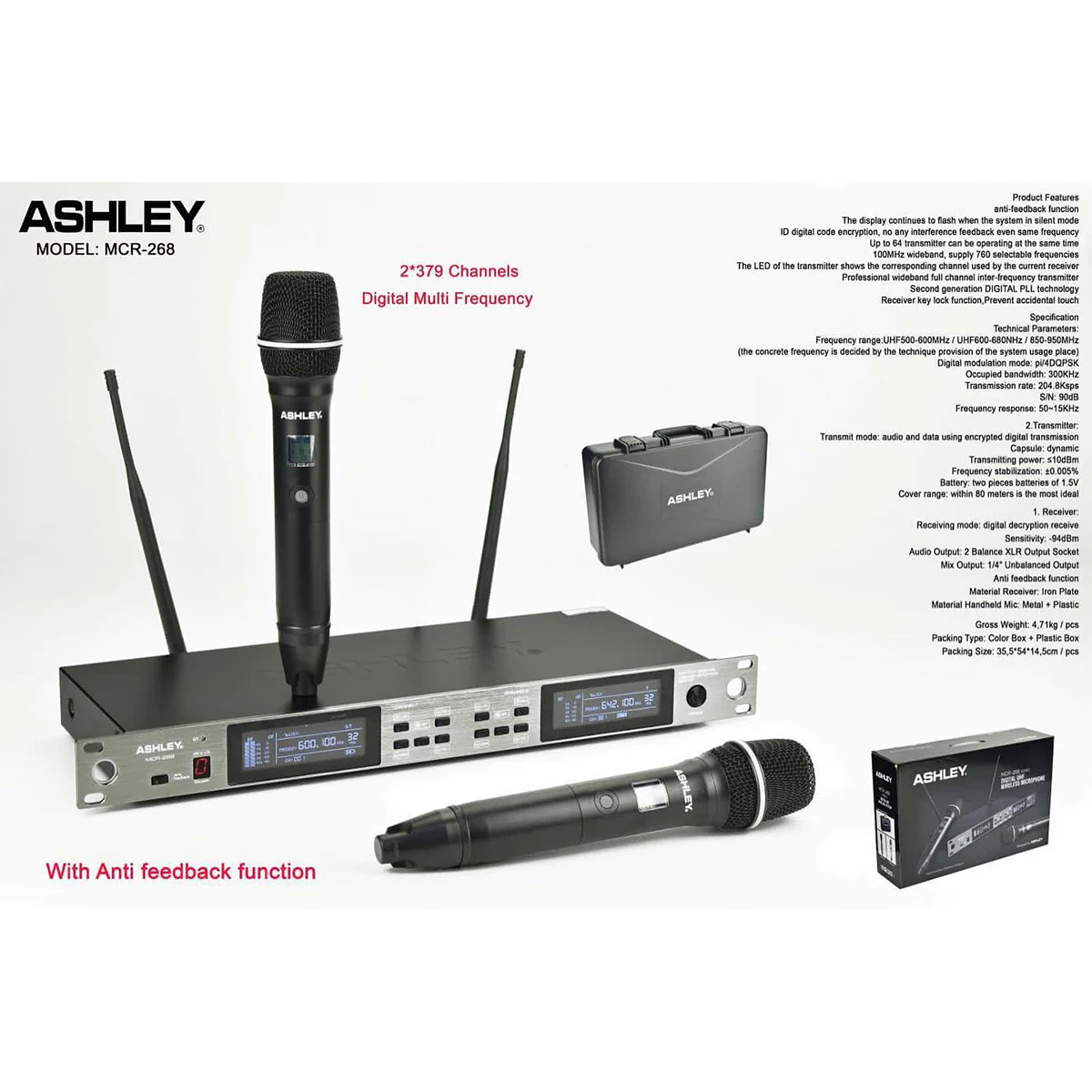

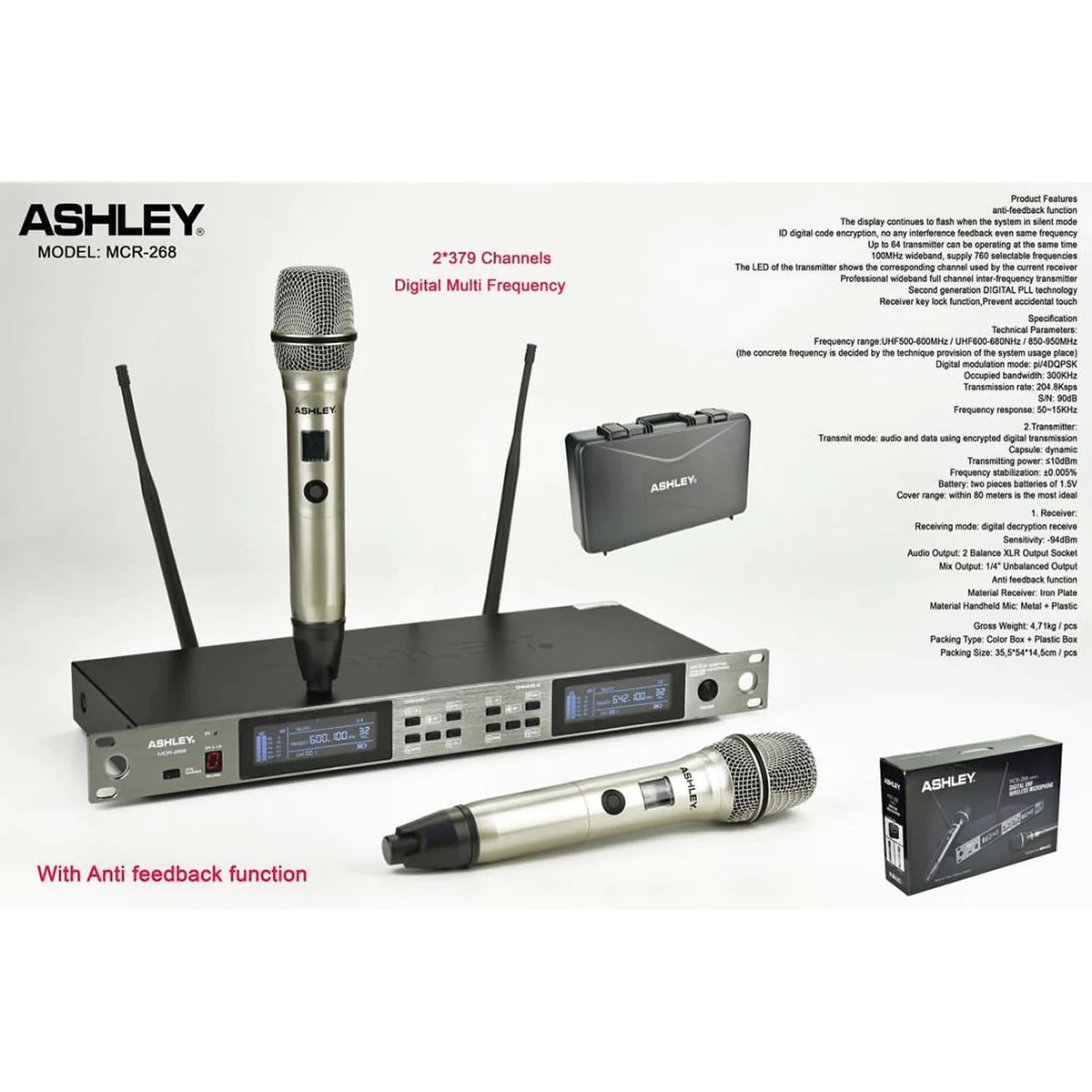

Description
Product Features:
✓Multi level anti Feedback function
✓The display continues to flash when the system in silent mode.
✓ID digital code encryption , no any interference Feedback even same frequency
✓Up to 64 transmitter can be operating at the same time
✓100MHz wideband supply 800 selectable frequencies
✓The LCD of the transmitter shows the corresponding chanel used by the current receiver
✓Professional wideband full chanel inter frequency transmitter
✓Broadband automatic selection
✓Second generation DIGITAL PLL technology
✓Receiver key Lock function, prevent accidental touch
Specification :
1. Technical Parameter
Frequency range: UHF 500-600MHz/UHF 600-680NHz/850-950MHz (the concret frequency is decided by the technique provision of the system usage place)
Digital modulation mode: pi/4DQPSK
Number of frequency 800
Occupied bandwidh 300KHz
Transmission rate 204.8ksps
S/N 90dB
Freqquency 50-15KHz
2. Transmitter
Transmit mode audio and data using encrypted digital transmission
Capsule dynamic
Transmitting power <- 10DBm
Frequency stabilization +-0.005%
Battery two pieces 1.5V
Cover range 80 meter is the most ideal
3. Receiver
Receiving mode digital decryption receive
Sensitivity -94dBm
Number of frequency 800
Anti Feedback function
2 balance XLR output port
Mix output 1/4 unbalance ouput DC power input
Material receiver iron plate
Handhel Mic Metal + Plastik
