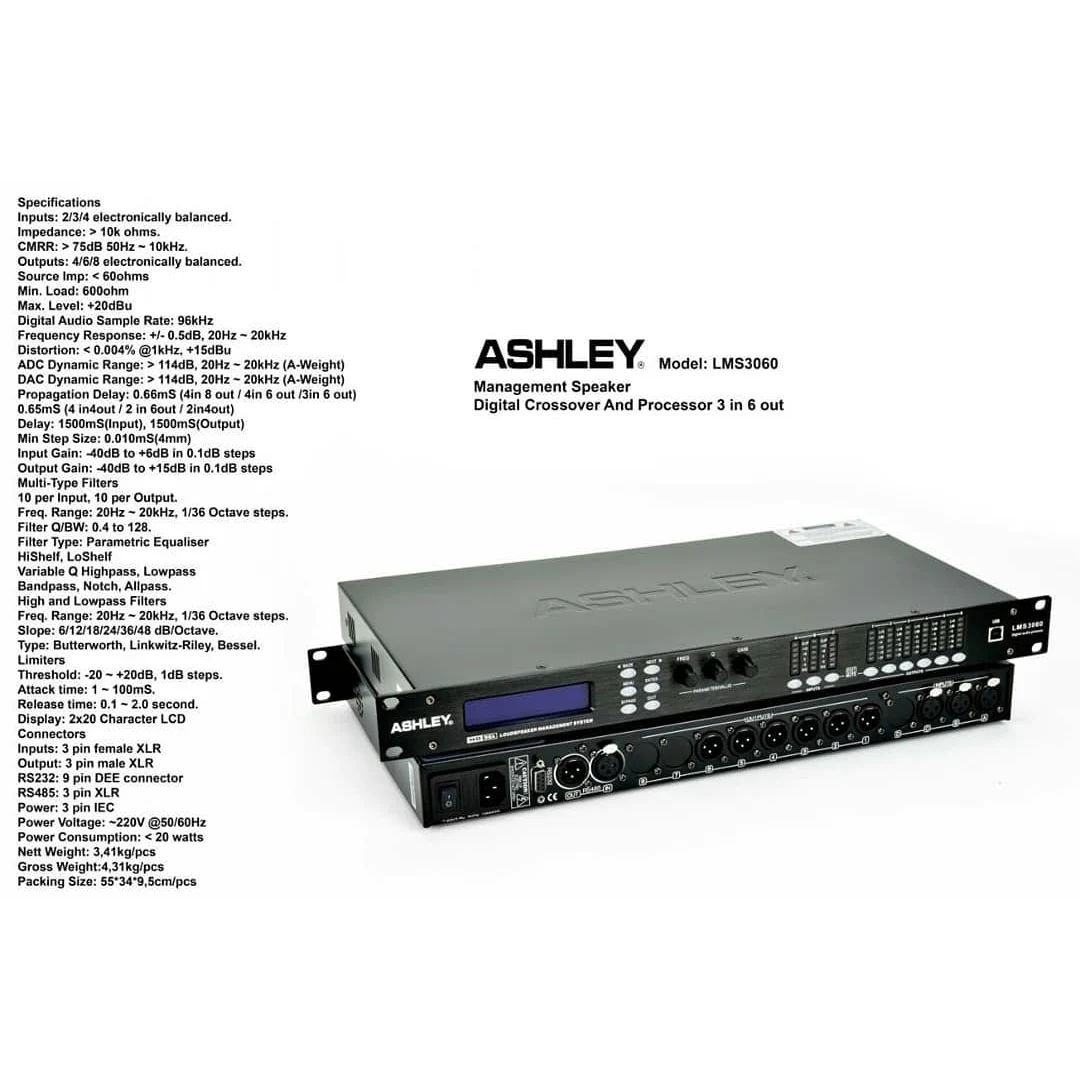

Ashley LMS3060 DLMS Speaker Management 3×6 (3 Input 6 Output)
Chat Penjual
100% ORIGINAL
HARGA Kompetitif
GARANSI Resmi
AFTERSALES Service
Description
Specifications
Inputs: 2/3/4 electronically balanced.
Impedance:> 10k ohms.
CMRR:> 75dB 50Hz – 10kHz.
Outputs: 4/6/8 electronically balanced. Source Imp: Min. Load: 600ohm
Max. Level: + 20dBu
Digital Audio Sample Rate: 96kHz
Frequency Response: +/- 0.5dB, 20HZ – 20kHz
Distortion: ADC Dynamic Range:> 114dB, 20HZ – 20kHz (A-Weight)
DAC Dynamic Range :> 114dB, 20HZ – 20kHz (A-Weight)
Propagation Delay: 0.66ms (4in 8 out / 4in 6 out / 3in 6 out) 0.65ms (4 in4out / 2 in 6out / 2in4out)
Delay: 1500mS (Input), 1500mS (Output)
Min Step Size: 0.010mS (4mm)
Input Gain: -40DB to + 6dB in 0.1dB steps
Output Gain: -40dB to + 15dB in 0.1dB steps 10
Multi-Type Filters
10 per Input, 10 per Output.
Freq. Range: 20HZ – 20kHz, 1/36 Octave steps.
Filter Q / BW: 0.4 to 128.
Filter Type: Parametric Equalizer
HIShelf, LoShelf
Variable Q Highpass, Lowpass
Bandpass, Notch, Allpass.
High and Lowpass Filters
Freq. Range: 20HZ – 20kHz, 1/36 Octave steps.
Slope: 6/12/18/24/36/48 dB / Octave.
Type: Butterworth, Linkwitz-Riley, Bessel.
Threshold Limiters: -20 – + 20DB, 1dB steps.
Attack time: 1-100mS.
Release time: 0.1 – 2.0 second.
Display: 2×20 Character LCD
Connectors Inputs: 3 pin Female XLR
Output: 3 pin Male XLR
RS232: 9 pin DEE
RS485 connector: 3 pin XLR
Power: 3 pin IEC
Power Voltage: -220V @ 50 / 60HZ
Power Consumption:
