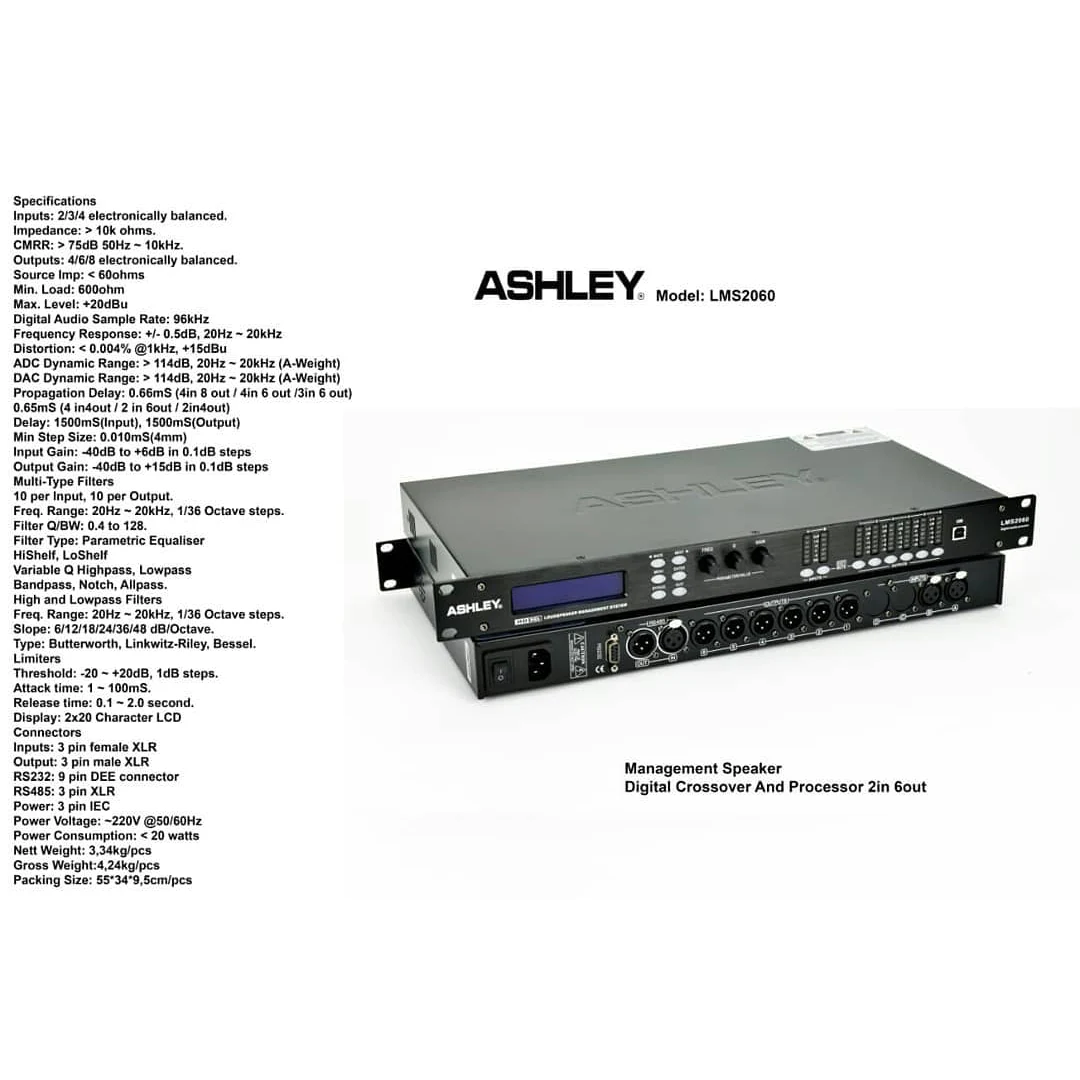

Ashley LMS2060 DLMS Speaker Management 2x6 (2 Input 6 Output)

Ashley LMS2060 DLMS Speaker Management 2×6 (2 Input 6 Output)

Chat Penjual
Category: Tags: , , , Brand:
Ashley Audio
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

  • CMRR: > 75dB 50Hz ~ 10kHz.
  • Outputs: 4/6/8 electronically balanced.
  • Source Imp: < 60ohms
  • Min. Load: 6000hm
  • Max. Level: +20dBu
  • Digital Audio Sample Rate: 96kHz
  • Frequency Response: +/- 0.5dB, 20Hz ~ 20kHz
  • Distortion: < 0.004% @1kHz, +15dBu
  • ADC Dynamic Range: > 114dB, 20Hz ~ 20kHz (A-Weight)
  • DAC Dynamic Range: > 114dB, 20Hz ~ 20kHz (A-Weight)
  • Propagation Delay: 0.66mS (4in 8 out / 4in 6 out /3in 6 out) 0.65mS (4 indout / 2 in Gout / 2indout)
  • Delay: 1500mS(Input), 1500mS(Output)
  • Min Step Size: 0.010mS(4mm)
  • Input Gain: -40dB to +6dB in 0.1dB steps
  • Output Gain: -40dB to +15dB in 0.1dB steps
  • Multi-Type Filters
  • 10 per Input, 10 per Output.
  • Freq. Range: 20Hz ~ 20kHz, 1/36 Octave steps.
  • Filter Q/BW: 0.4 to 128.
  • Filter Type: Parametric Equaliser
  • HiShelf, LoShelf
  • Variable Q Highpass, Lowpass
  • Bandpass, Notch, Allpass.
  • High and Lowpass Filters
  • Freq. Range: 20Hz ~ 20kHz, 1/36 Octave steps.
  • Slope: 6/12/18/24/36/48 dB/Octave.
  • Type: Butterworth, Linkwitz-Riley, Bessel,Limiters
  • Threshold: -20 ~ +20dB, 1dB steps.
  • Attack time: 1 ~100mS
  • Release time: 0.1 ~ 2.0 second.
  • Display: 2×20 Character LCD
  • Connectors
  • Inputs: 3 pin female XLR
  • Output: 3 pin male XLR
  • RS232: 9 pin DEE connector
  • RS485: 3 pin XLR
  • Power: 3 pin IEC
  • Power Voltage: ~220V @50/60Hz
  • Power Consumption: < 20 watts
