Ashley DSP4.8 DLSM Speaker Management 4×8 (4 Input 8 Output)
Chat PenjualDescription

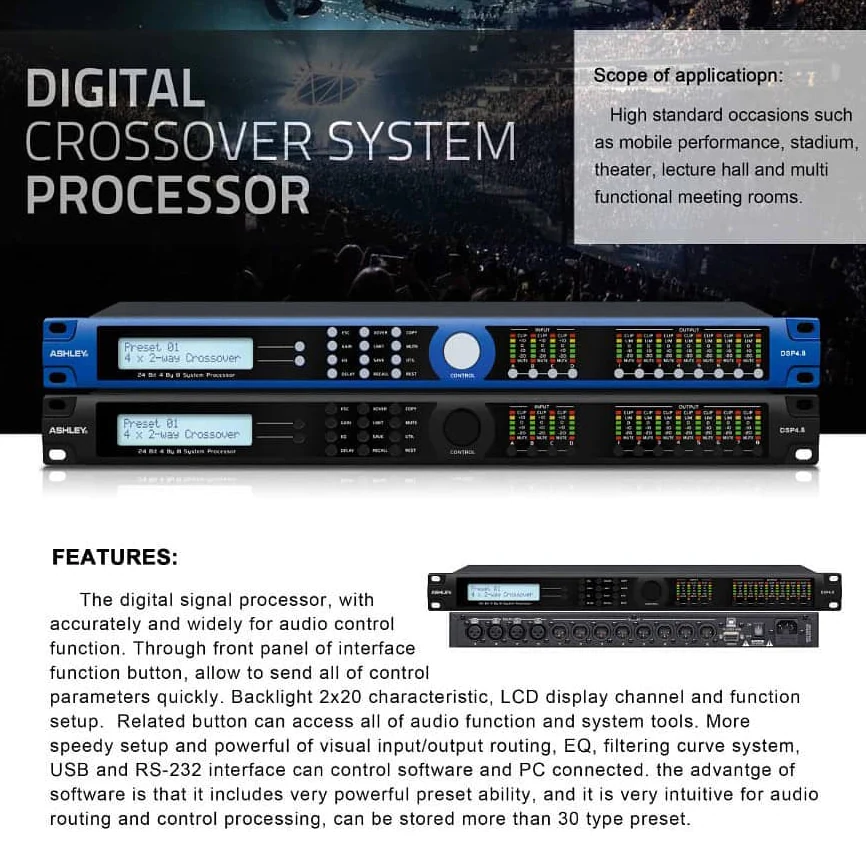

Feature
The processor uses the most advanced DSP technology and uses 24bit, 96K A/D and D/A converters with 96k sampling rate. Digital processing includes gain, inverting, noise gate, equalizer, slope filter, frequency division, delay, compression, limiting and signal routing functions, all of which are performed by high-performance DSP processors. All inputs and outputs use balanced output and RF protection while using XLR connectors.
SPECIFICATIONS:
- 24 bit high-end converter with 48Hz frequency for excellent sound quality performance with 96K sampling rate.
- 4 input + 8 output perfect hybrid matrix speaker processor.
- Each input channel has 30 equalization filters.
- Each output channel has 7 equalization filters.
- Each equalization filter can be selected as a Bell, high’low Shelving high/low pass, bandpass, trap and ail-pass filter
- The slope of the filter ranges from 6dB/Oct to 48dB/Oct, and can be selected as Butterworth, Bessel, and Linquez-Rayleigh filters.
- Each output has a high precision peak limiter.
- Adjustable delay up to 420.938ms per input channel and up to 128.998ms per output channel
- Each output channel can be directly connected to the computerinetwork, and the USB interface on the front panel can also be directly connected to the computer for communication
- RS485 can also be used to connect the computer, through the remote PC software to set up, monitor and control the device.
