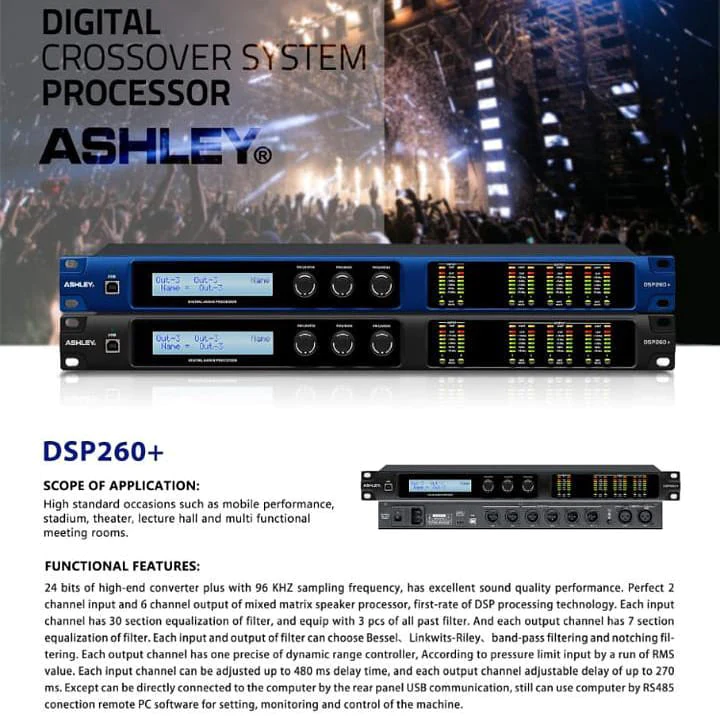

Ashley DSP260+ DLMS Speaker Mangement 2×6 (2 Input 6 Output)
Chat PenjualDescription
SCOPE OF APPLICATION:
High standard occasions such as mobile performance, stadium, theater, lecture hall and multi functional meeting rooms.
FUNCTIONAL FEATURES:
24 bits of high-end converter plus with 96 KHZ sampling frequency, has excellent sound quality performance. Perfect 2 channel input and 6 channel output of mixed matrix speaker processor, first-rate of DSP processing technology. Each input channel has 30 section equalization of filter, and equip with 3 pcs of all past filter. And each output channel has 7 section equalization of filter. Each input and output of filter can choose Bessel. Linkwits-Riley. band-pass filtering and notching filtering. Each output channel has one precise of dynamic range controller, According to pressure limit input by a run of RMS value. Each input channel can be adjusted up to 480 ms delay time, and each output channel adjustable delay of up to 270 ms. Except can be directly connected to the computer by the rear panel USB communication, still can use computer by RS485 conection remote PC software for setting, monitoring and control of the machine.
SPECIFICATIONS:
- Front panel: 2 X 24 character of LCD display
- Digital input: 1 digital audio; input sensitivity 0dB
- Minimum load: 150 ohm
- THD+N distortion: 0.001% at 1kHz 0dBu
- S/N: >110dBA
- Frequency Response: 20Hz – 20kHz; -0.5dBu @ 20Hz ~20kHz
- AD/DA transform: AK5388 24bit / AK4396 24bit
