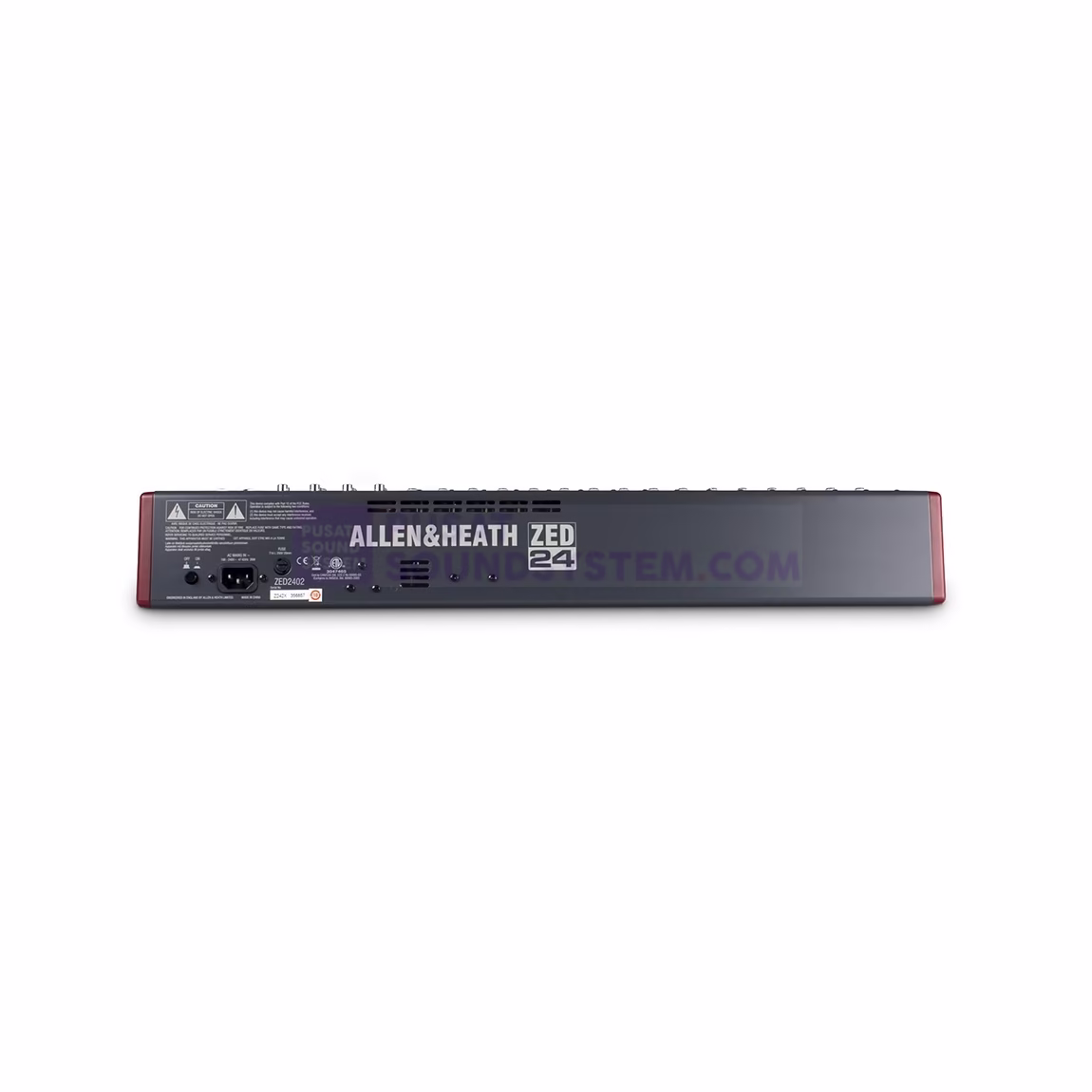

Allen & Heath ZED-24 24-Channel Analog Mixer With USB
24-channel Multipurpose Live Mixer with 16 Microphone Preamps, 3-band EQ, and USB
Description
The Allen & Heath ZED 24 audio mixer has a fantastic pedigree: nearly 40 years of making mixing desks for professional sound engineers. The ZED 24 mixer’s audio circuitry is based on years of continual development and refinement. All the elements within the mixer have been perfected to insure the very best sound quality possible.
This is a mixer with broad appeal, from entry-level to professionals. You get fantastic sound, rugged build quality, and imaginative features. The ZED 24 mixer is equally happy running your gig on stage, recording live, or mixing down in your studio at home.
The features are incredibly advanced for a mixer at this level. The ZED 24 has 23 independent sources to the mix, 10 independent outputs, 4 aux sends (2 pre and 2 post fade), a USB send and return for PC or Mac recording, playback and effects, a unique dual stereo input capability and some very advanced monitoring facilities.
In fact, the ZED 24 mixer is so packed with great features that you’d think it would cost much, much more! In addition to 16 mono channels there are 4 stereo channels, each with a main stereo input on jack sockets and the ability to take additional stereo inputs from phono sockets or from the USB audio input, enabling you to control and route any source.
The ZED 24 mixer features a responsive 3-band swept-mid EQ, with an optimized slope for equalizing individual instruments. The ZED 24 also features high quality DuoPre pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage, offering lots of headroom. Allen & Heath includes the excellent SONAR LE digital audio workstation software for Windows with the ZED 24 multipurpose mixer. With audio and MIDI multitrack recording and mixing capability, effects plug-ins and editing features, SONAR LE enables the ZED 24 audio mixer to become a live sound, recording, or home recording mixer.
- Multipurpose mixer with USB for live sound, recording and production
- 16 mono mic/line inputs
- 4 stereo line inputs
- DuoPre mic preamplifiers
- Insert points
- High pass filter
- Responsive 3-band swept mid-channel EQ
- 4 aux sends (2 pre-, 2 post-fade)
- Stereo imaging control on every channel
- Channel mute switches
- Professional 100mm faders
- Stereo return
- 2-track return
- USB send and return for PC/MAC with controls for recording playback and effects
- USB Audio In/Out: USB 1.1 compliant 16bit
- Sample Rate: 32, 44.1, or 48kHz
- Advanced monitoring facilities
- 1/4 inch and 3.5mm headphones outputs
- Stereo record out
- Alternative stereo out
- Mono sum of LR output
- Main LR
- 12-bar LR meters
- Master controls for aux1&2
- Cakewalk SONAR LE bundled with mixer
Spesifikasi
| Total # Of Inputs | 24 |
| Mic/Line Inputs | 3-pin XLR Balanced Microphone x16 1/4″ Phone Balanced Line x24 |
| Stereo Line Inputs | ST1 – ST4 1/4″ Phone L/R Stereo |
| In-Line Inputs/Returns | No |
| AUX Sends | 1/4″ TRS Phone x4 |
| AUX Returns | 1/4″ TRS Phone x4 |
| Inserts | 1/4 TRS Phone x18 (Mono chs and Main Stereo Out) |
| BUS (Group) Outputs | No |
| 2 Trk Master I/O | Main Output: Balanced 3-pin XLR |
| ALT I/O | USB Connector 1/4″ Phone Mono Out |
| Monitor Outputs | RCA Stereo Phono – ALT Out RCA Stereo Phono – REC Out |
| EQ Section | 3-Band with Mid Sweep On all Mono Channels 2-Band On Stereo Channels |
| Solo/Mute | Mute and PFL Solo |
| Channel Level Control | 100mm Fader |
| Trim/Gain Control | Rotary Control |
| Phantom Power | +48V Switched Globally |
| Metering | 12 Segment Peak LEDs |
| Frequency Response | 20Hz to 20kHz |
| Dynamic Range | Not Specified By Manufacturer |
| Signal-to-Noise Ratio | -88dBu |
| Total Harmonic Distortion (THD) | 0.004% |
| Power Supply | 100-240V 47-63Hz 40W Max |
| Dimensions (WxHxD) | 25.4 x 4.35 x 18.3″ (645.19 x 110.69 x 465mm) |
| Weight | 23 lb (10.5 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 31.4 lb |
| Box Dimensions (LxWxH) | 31.0 x 25.0 x 10.0″ |
