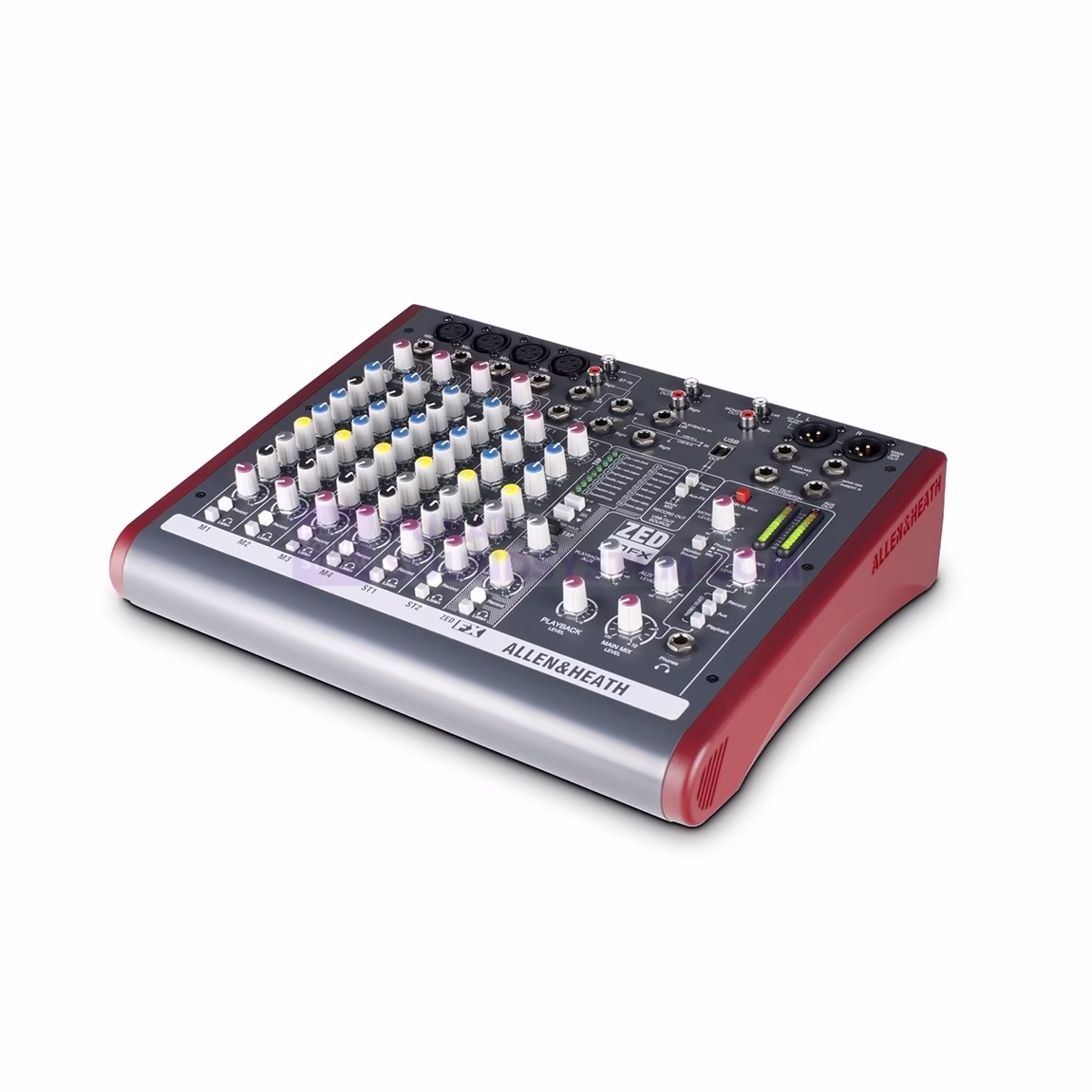

Allen & Heath ZED10 FX Analog Mixer Angled
Allen & Heath ZED10 FX Analog Mixer Top Angle

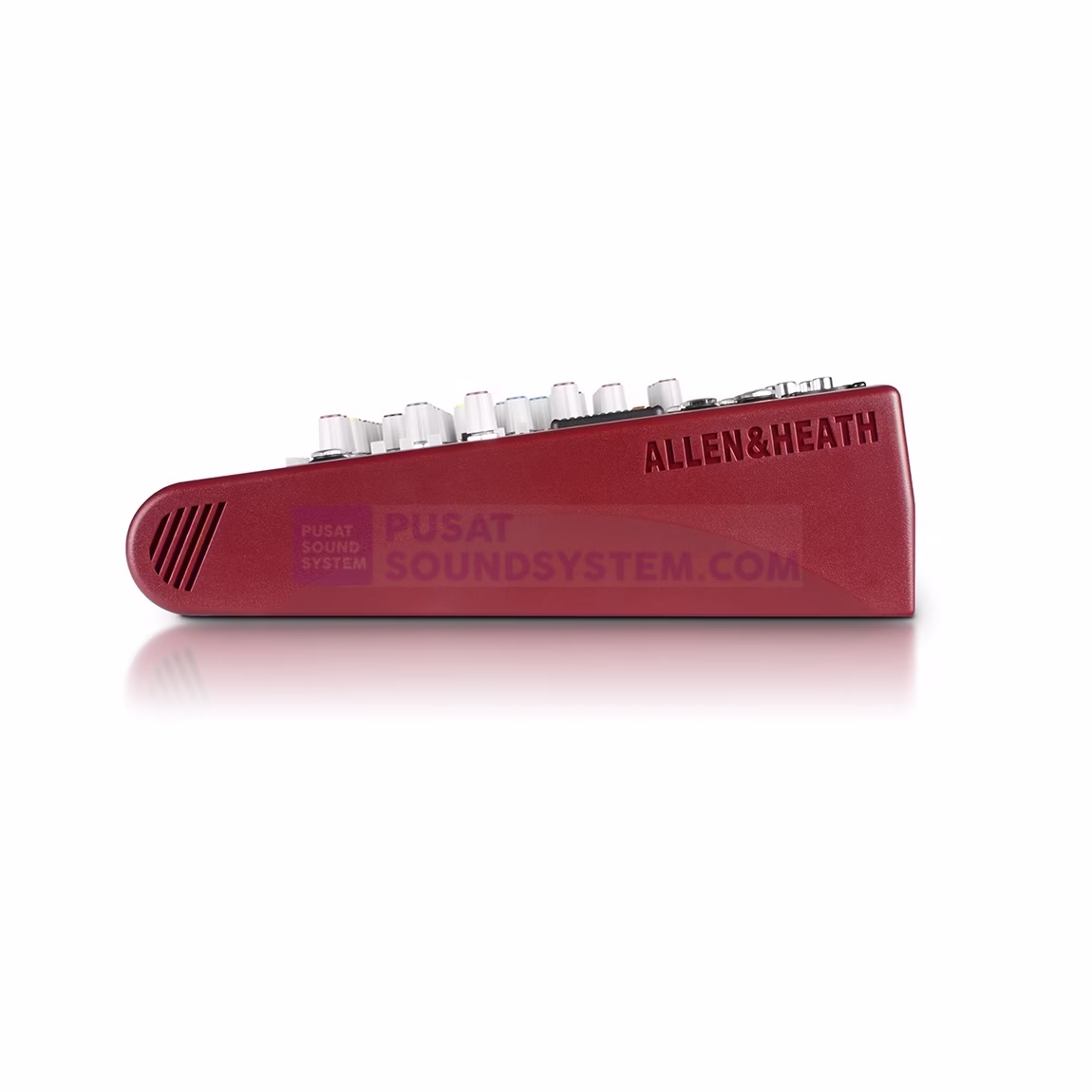

Allen & Heath ZED10 FX Analog Mixer Side Angle
Allen & Heath ZED10FX Analog Mixer Rear Angle

Allen & Heath ZED-10FX 10-Channel Mini Analog Mixer (USB+FX)

10-channel Mixer with 4 Mic/Line Channels, 3 Stereo Channels, 16 Built-in Effects, and USB – Mac/PC

Category: Tags: , ,
Cek Harga

Description

The ZED-10FX is an amazing, compact desktop mixer, ideal for small band mixing. It is ultra portable for carrying to the gig, and can be used for recording live or in the studio. Guitars can be plugged in directly to the mixer using the specially designed high-impedance inputs, while the mixer has two stereo inputs for MP3/CD players or keyboards. It is also equipped with professional XLR main stereo outputs and a flexible monitoring section with headphone and speaker feed outputs. Unlike it’s sibling, the ZED-10, the ZED-10FX also boasts a set of fabulous effects to give shimmering reverbs and enhance your sound.

The ZED-10FX is great for live mixing. The layout makes it very simple to use and easy to achieve a great sound. It can be used for recording a live show, and can also be used for an audio project at home that you can build up track by track using the USB digital audio interface.

The flexibility, quality, and price-point of this mixer makes it stand out from the crowd. You can plug your guitars or instruments straight into the class A discrete FET high impedance inputs, it can accommodate up to four microphones, two stereo sources with MP3 player compatibility, and separate 2-track record outputs. It also has a stereo playback input for 2-track replay or perhaps interval music from a CD player, XLR main stereo outputs with inserts, comprehensive monitoring with headphones, and separate monitor speaker outputs, 48V microphone phantom power, DI level switching for sub mixing, and last but not least, the same digital effects algorithms as those used on Allen & Heath’s flagship digital consoles costing 150 times as much.

Allen & Heath ZED-10FX Features
  • 4 mic/line, 2 with Class A FET high impedance
  • Neutrik mic XLR
  • Neutrik 1/4″ jacks
  • 3-band EQ with MusiQ
  • 2 Auxes
  • Sound image pan
  • Illuminated PFL indicator
  • Stereo returns & playback
  • All inputs with level control
  • 12-bar meters
  • Professional FX
  • Responsive 3-band, swept mid EQ with MusiQ
  • 2 stereo sources with MP3 player compatibility
  • Separate 2-track record outputs
  • Stereo playback input for 2-track replay
  • XLR main stereo outputs with inserts
  • Comprehensive monitoring
  • Configurable USB stereo audio in/out
  • Stereo monitor outs
  • 48V microphone phantom power
  • DI level switching for sub mixing

Spesifikasi

Inputs & Outputs
Mic Input 4 x XLR, balanced
Line In Channels 1 & 2: 2 x 1/4″ / 6.3 mm, balanced or unbalanced (mono)

Stereo Input 1: 2 x 1/4″ / 6.3 mm (balanced) or RCA (unbalanced) (L/R)
Stereo Input 2: 2 x 1/4″ / 6.3 mm, balanced or unbalanced (L/R)
Instrument Input 2 x 1/4″ / 6.3 mm, Hi-Z
Inserts Stereo Bus, Send/Return: 2 x 1/4″ / 6.3 mm
Main Output 2 x XLR, balanced (L/R)
Effect Sends 1 x 1/4″ / 6.3 mm FX output (post-fade send)
1 x 1/4″ / 6.3 mm Aux output (pre-fade send)
Headphone 1 x 1/4″ / 6.3 mm, stereo
Record Output 2 x RCA
Monitor Output 2 x RCA
USB USB stereo I/O
Effects
DSP 48 kHZ / 24-bit
Controls Tap button

Up/down button
Operating Levels
Input Mono Channel (XLR) Input: -10 to -60 dBu (nominal), +11 dBu (maximum)

Mono Channel Line Input (1/4″ Jack): +10 to -40 dBu, +31 dBu (maximum)

Stereo Input (1/4″ Jack or RCA): 0 dBu (nominal), control = Off to +15 dB
Output L/R XLR Outputs, Normal/DI Output: 0 dBu / -30 dBu, +21 dBu / -9 dBu (maximum)

Aux and FX Outputs (1/4″ Jacks): 0 dBu (nominal), +21 dBu (maximum)

Record and Monitor Outputs (RCA Jacks): 0 dBu (nominal), +21 dBu (maximum)
Frequency Response
Mic Input Mic In to Mix L/R Out, 30 dB Gain: +0.5/-1 dB, 10 Hz to 30 kHz
Line Input Line In to Mix L/R Out, 0 dB Gain: +0.5/-1 dB, 10 Hz to 25 kHz
Stereo Input Stereo In to Mix L/R Out: +0.5/-1 dB, 10 Hz to 30 kHz
THD + N
Mic Input Mic In to Mix L/R Out, 10 dB Gain, 1 kHz, +10 dBu Out: 0.002%

Mic In to Mix L/R Out, 30 dB Gain, 1 kHz: 0.01%
Line Input Line In to Mix L/R Out, 0 dB Gain, 0 dBu, 1 kHz: 0.003%
Stereo Input Stereo In to Mix L/R Out, 0 dB Gain, +10 dBu, 1 kHz: 0.002%
Guitar Input Guitar In to Mix L/R Out, 0 dBu, Boost Out: 0.015%

Guitar In to Mix L/R Out, 0 dBu, Boost In: 2% second harmonic
Headroom
Analog Analog Headroom from Nominal (0 Vu): 21 dB
USB USB I/O Headroom from Nominal (0 Vu): 14 dB
Noise
Microphone Mic Pre EIN at Maximum Gain, 150 Ohm Source Impedance, 22 Hz to 22 kHz: -127 dBu
Mix L/R Mix L/R Out, L/R Faders = 0, Levels Minimum, 22 Hz to 22 kHz: -96 dBu

Mix L/R Out, L/R Faders = 0, Levels Minimum, 22 Hz to 22 kHz: -96 dBu
USB Audio Codec
USB Compliance USB Audio In/Out: USB 1.1-compliant, 16-bit
Sample Rate 32, 44.1, 48 kHz
General
Phantom Power 48 V
Dimensions (W × H × D) 13.2 x 3.7 x 10.8″ / 336 x 95 x 275 mm
Weight 7.3 lb / 3.3 kg
Packaging Info
Package Weight 10.4 lb
Box Dimensions (LxWxH) 15.8 x 13.0 x 6.9″
