Allen & Heath AB168 16×8 Digital Stage Box For GLD And Qu Series

16×8 AudioRack Remote Unit for Allen & Heath GLD and Qu Digital Mixing System

Cek Harga
Share atau Bagikan :

Description

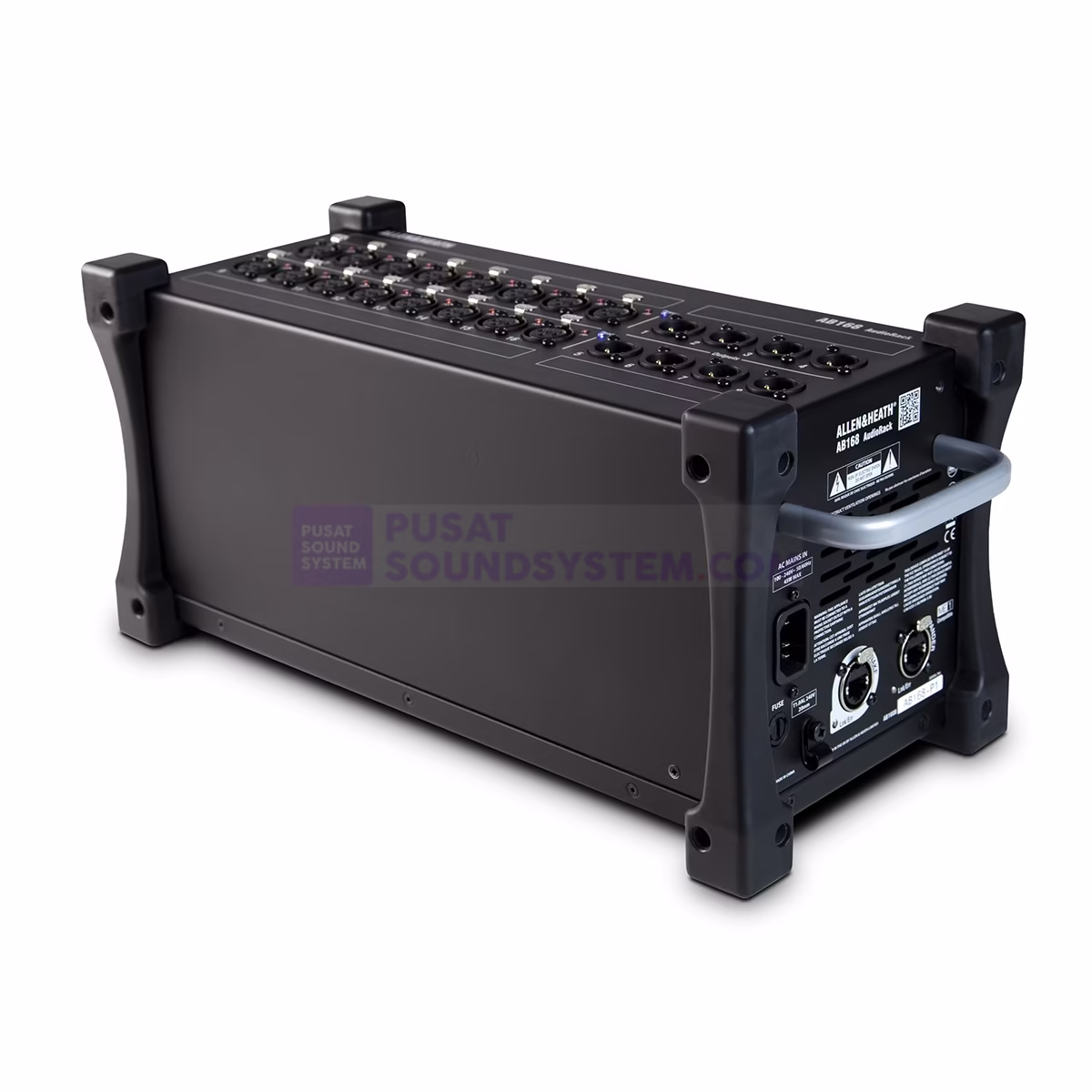

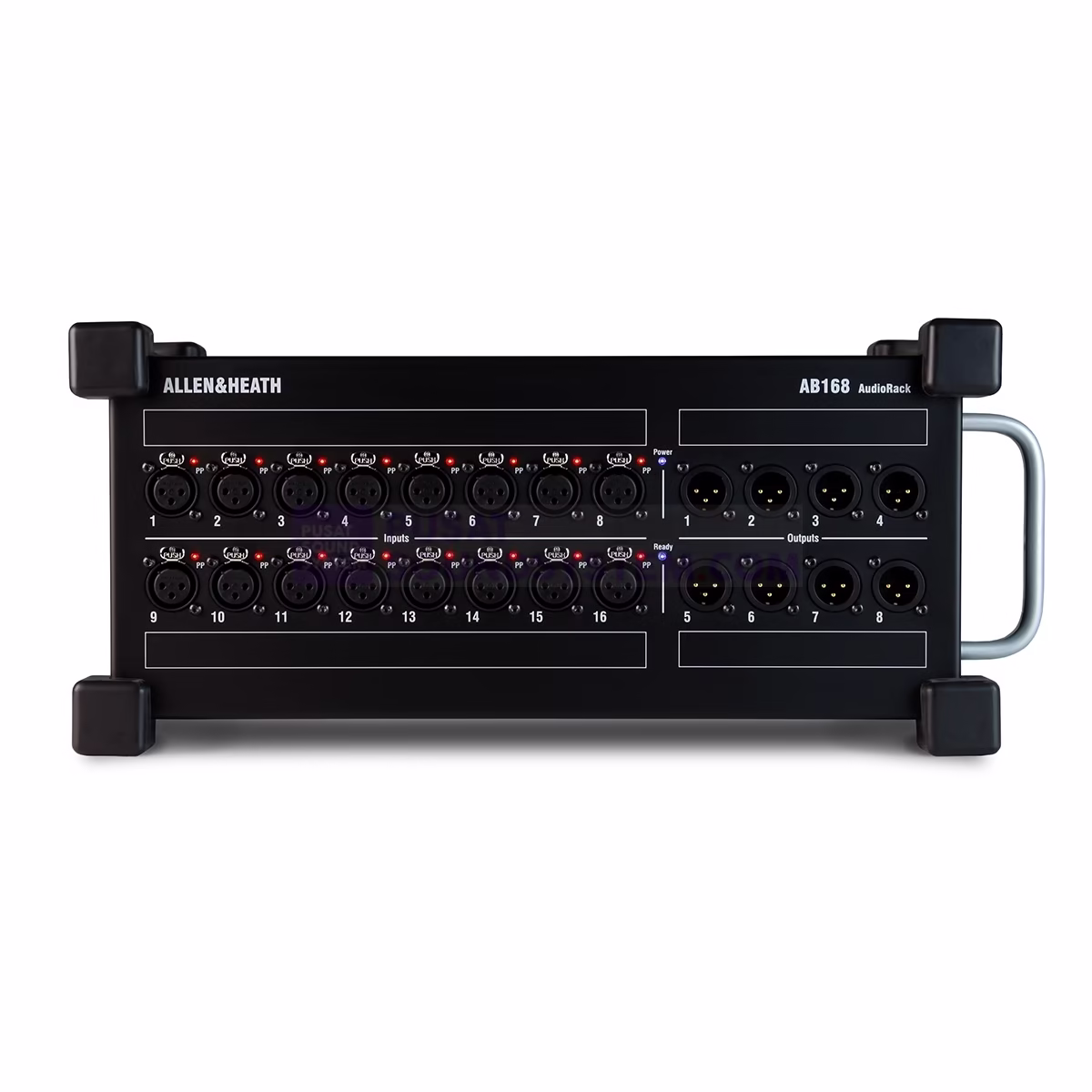

AB168 is a portable remote AudioRack for use with the Allen & Heath GLD and Qu series, providing 16 XLR inputs and 8 XLR outputs when connected to a GLD-80 or GLD-112 mixer, or to an AR2412 AudioRack. Featuring 16 mic preamps with Phantom Power indicators and 8 XLR line outs, AB168 runs on Allen & Heath’s proprietary dSNAKE protocol. The AB168 unit connects over a single Cat5 cable to the GLD mixer or to an AR2412 AudioRack via a secure dSNAKE EtherCon port. A second EtherCon port is provided for daisy-chaining to another AB168 box or connection of a ME personal mixing system. AB168 auto updates its firmware to synchronise with the GLD system.



Allen & Heath AB168 Features

  • 16 high-quality mic preamps give you plenty of great sounding inputs
  • Phantom power indicator on each channel lets you keep an eye on your input status
  • 8 XLR sends give you plenty of outputs to get your sound where you need it
  • dSNAKE protocol gets your audio where you need with convenient Cat 5 connectivity
  • Expander port lets you expand your system or connect your ME personal mixing system
  • Rubber bumpers protect from disastrous dings and drops
  • Convenient carry handle makes loadins quick and easy on your back
  • Rackmountable with optional kit

Spesifikasi

Inputs
XLR Mic/Line Inputs Mic/Line Preamp: Balanced, fully recallable
Input Sensitivity: -60 to +15 dBu
Analog Gain: +5 to +60 dB, 1 dB steps
Pad: -20 dB
Maximum Input Level: +32 dBu
Input Impedance: > 4 kOhms (pad out), > 10 kOhms (pad in)
Mic/Line Channel Noise (20 Hz to 20 kHz, direct out at unbalanced out)
Mic EIN: -127 dB with 150 Ohms source
Unity Gain, Pad In: -90 dBu
Low Gain, 5 dB, Pad Out: -93 dBu
Mid Gain, 30 dB, Pad Out: -89 dBu
Mic/Line Channel THD+N (20 Hz to 20 kHz, direct out at unbalanced out)
Unity Gain, Pad In: 0.005%, -86 dBu at 1 kHz, 0 dBu output
Low Gain, 5 dB, Pad Out: 0.003%, -89 dBu at 1 kHz, 0 dBu output
Mid Gain, 30 dB, Pad Out: 0.004%, -88 dBu at 1 kHz, 0 dBu output
Outputs
XLR Outputs (Balanced, relay-protected)
Output Impedance: < 75 Ohms
Nominal Output: +4 dBu = 0 dB meter reading
Maximum Output Level: +22 dBu
Residual Output Noise: -91 dBu (muted, 20 Hz to 20 kHz)
General
Compatibility GLD, Qu digital mixing systems
AR2412 AudioRack
Ports 1 x dSNAKE port for CAT5 cable link to mixer or AR2412 rack
1 x Expander port for CAT5 cable link to connect additional AB168 rack
Power 100-240 V, 50/60 Hz, 20 W maximum
Operating Temperature 32 to 95° F / 0 to 35° C
Dimensions (W x H x D) 16.2 x 6.1 x 7.4″ / 41.1 x 15.4 x 18.9 cm
Weight 10.6 lb / 4.8 kg
Packaging Info
Package Weight 15.55 lb
Box Dimensions (LxWxH) 23.228 x 13.465 x 13.15″
