Description

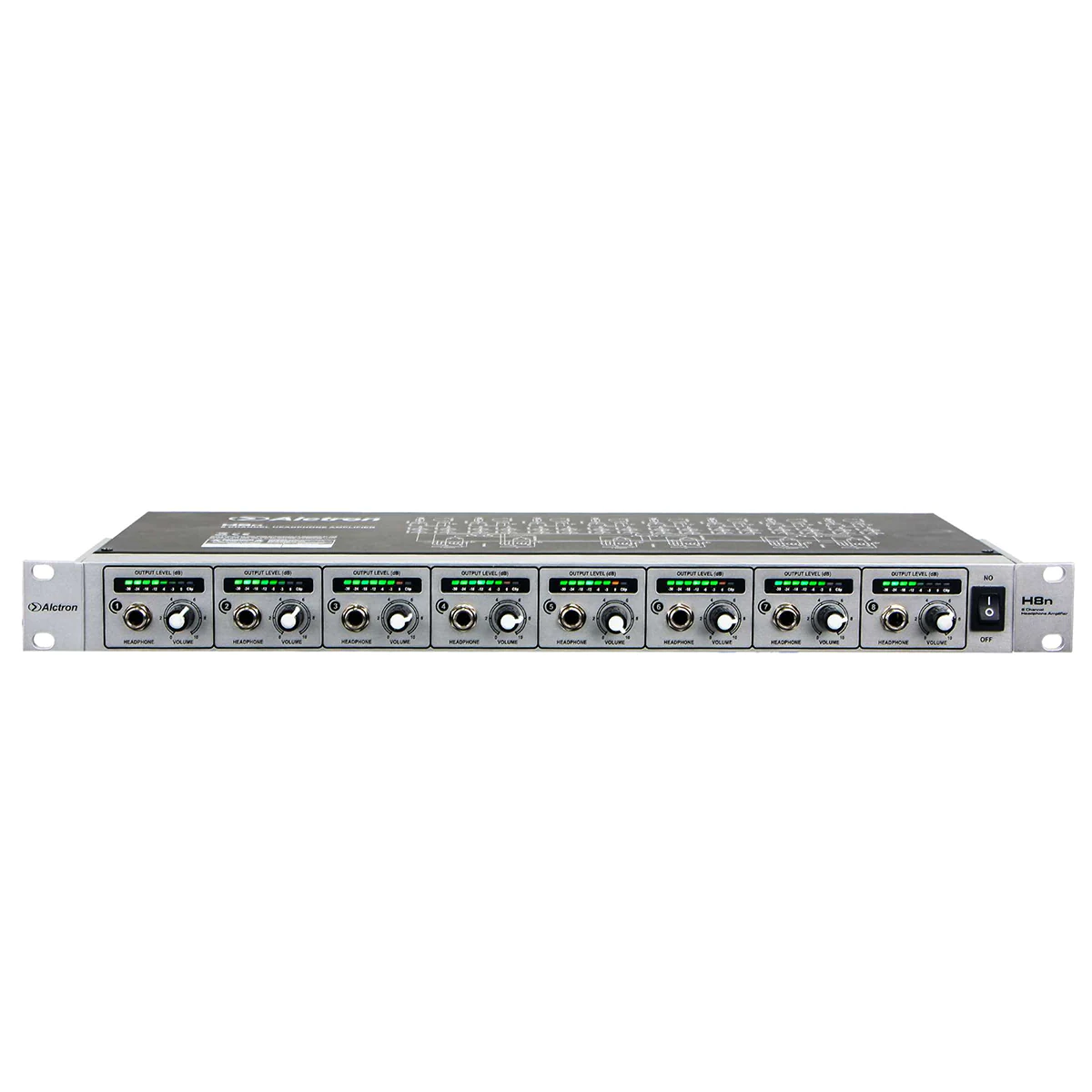

H8n is an ultra-versatile 8 channels headphone amplifier. It has A, B and C 3 sets of balanced stereo signal inputs. Each channel has the selector switch of MONO or STEREO. And it has 8 channels headphone output, each channel has the separate volume control and level peak LED indicator, which adjust the level to both headphone and parallel line outputs. Three balanced, line-level input channels with capacity to distribute one input signal to all headphones or group the headphone outputs (depending upon input configuration) for monitoring flexibility. By virtue of the MONO/STEREO selector switches, one headphone can monitor 2 different MONO signal sources. It will meet all kind of monitor requirement. So it is an useful equipment for stage or studio.
Fitur
- 1U rack shell helps headphone amplifier fixed on rack easily
- Highest sonic quality with virtually all types of headphones even at maximum volume
- 8 totally independent stereo high-power amplifier sections in one rack space
- 8 independent Direct inputs provide up to 8 individual stereo mixes
- Output level control and accurate 8-digit LED output meter per channel avoids sound distortion
- Independent amplify circuit rejects interference and mix of each channel and makes each channel input purity signal
- Adopts JRC performance chip to amplify the signal, also ensures low distortion and low noise
- Owns 3 sets stereo balanced input, 8-channel stereo output, each channel featuring independent volume control
Spesifikasi
| * Connectors: | 1/4’’TS |
| * Type: | unbalanced |
| * Impedance: | 47KΩ |
| * Max output level: | +25dB |
| * Output impedance: | 22Ω |
| * Gain: | 12.5dB |
| * Distortion: | 0.02% |
| * Frequency response: | 20hz-20khz |
| * S/N ratio: | >80dB |
| * Crosstalk rejection: | >68dB@1khz; 20dB input |
| * Volume: | per channel, variable |
| * Signal selector: | per channel, variable |
| * AC requirements: | selectable, 100-120V AC, 200-240V AC, 50-60HZ |
| * Fuse: | 100-120V AC:1000mA;200-240V AC:500mA |
| * Power cord connector: | standard IEC receptacle with built-in fuse holder |
| * Size: | 44.5mm * 482.6mm * 217mm |
