Description

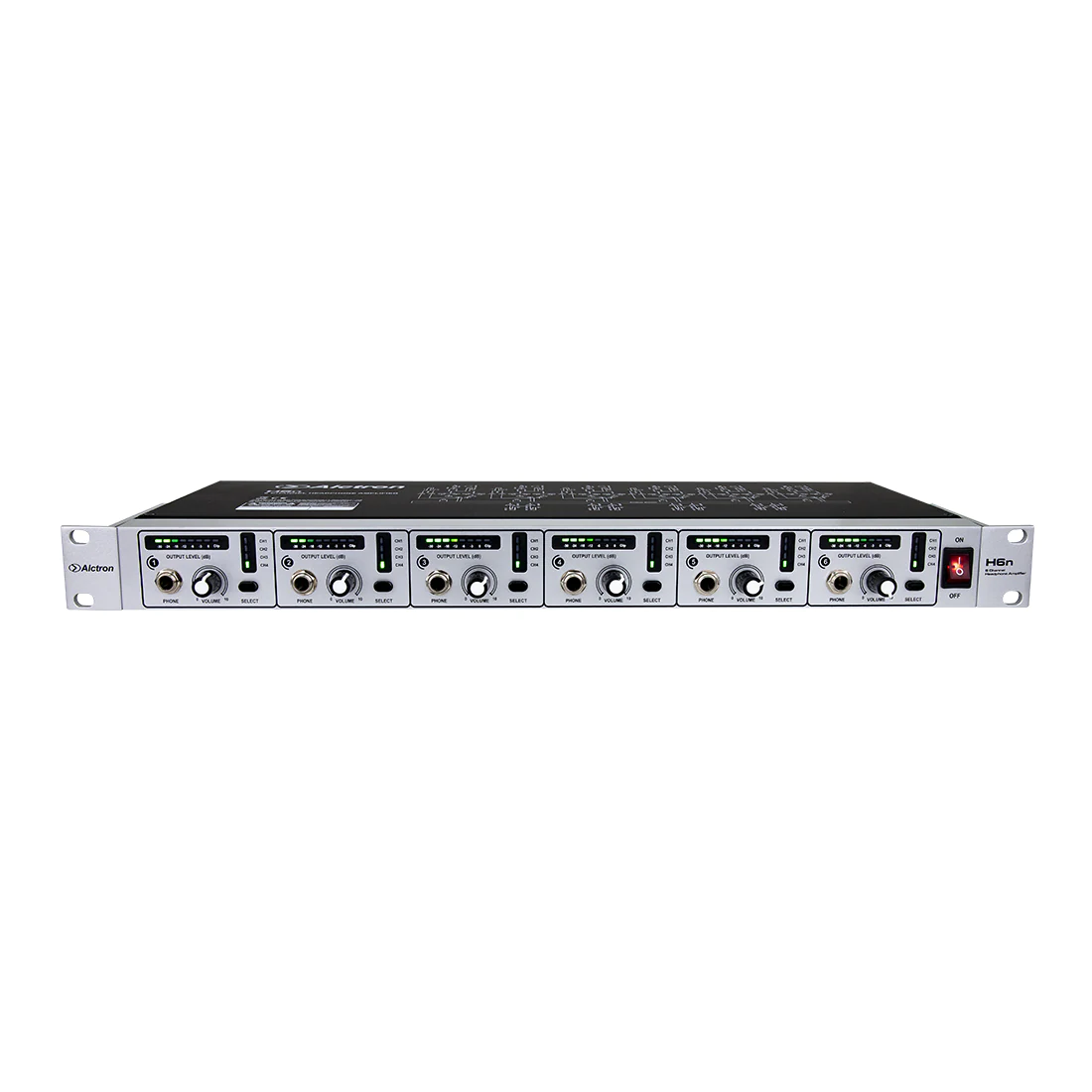

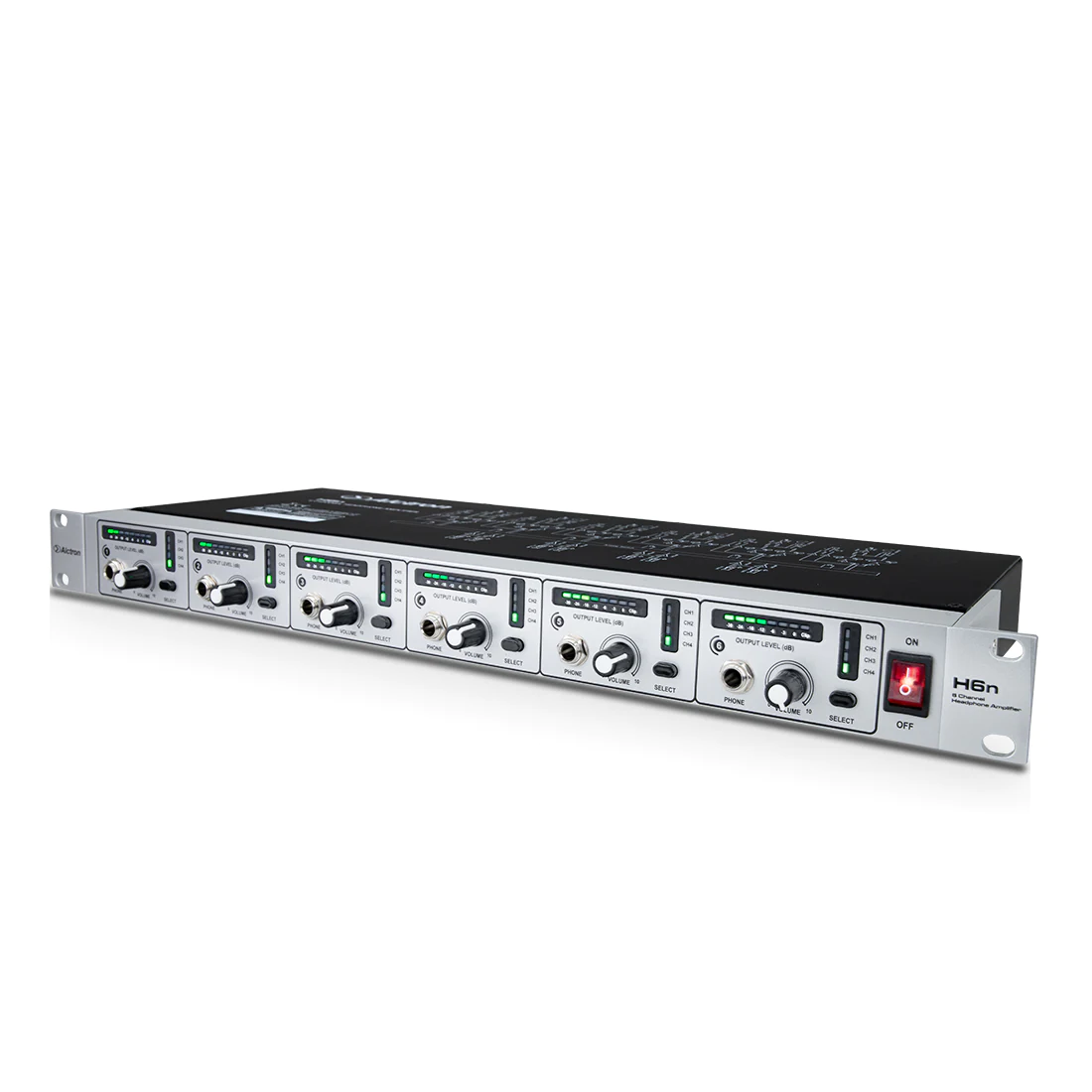

Alctron H6n is a professional high power 6-channel headphone amplifierthat’s perfect for the most demanding professional stage and studio applications, it is suitable for almost all the headphones in the markets. It features 7-level indicator of the output volume, 6 channels stereo input, 6 channels stereo output and 6 channels line output. Separate volume control for each channel adjusts the level to both headphone and parallel line outputs. Each channel has a select switch, you can monitor the signal of a separate channel via the select switch. The switch also has the function of mute. It can turn off the signal of the headphone at any condition. Perfect circuit design and extremely low noise component adopted make the sound transparent and clear. Anyway, it is perfect device for stage or studio.
Fitur
- 1U rack shell helps headphone amplifier fixed on rack easily
- Independent amplify circuit rejects interference and mix of each channel and makes each channel input purity signal
- Output level control and accurate 8-digit LED output meter per channel avoids sound distortion
- Adopts JRC performance chip to amplify the signal, also ensures low distortion and low noise
- Shell made of high quality steel panel pressed processing makes product smooth and full
- Features 6-channel stereo input, 6-channel stereo output each channel owning independent colume control
Spesifikasi
| Audio inputs | |
| * Connectors: | 1/4’’TS |
| * Type: unbalanced Impedance: | 47KΩ |
| * Max output: | 12dB |
| Headphone power amplifier outputs | |
| * Max output level: | 350mV@47Ω |
| * Output impedance: | 22Ω |
| * Gain: | 12.5dB |
| Distortion, frequency response, S/N ratio & crosstalk | |
| * Distortion: | 0.02% |
| * Frequency response: | 20hz-20khz |
| * S/N ratio: | >80dB |
| * Crosstalk rejection: | >68dB@1khz; 20dB inpu |
| Function control | |
| * Volume: | per channel, variable |
| * Signal selector: | per channel, variable |
| Power supply | |
| * AC requirements: | selectable, 100-120V AC, 200-240V AC, 50-60HZ |
| * Fuse: 100-120V AC: | 1000mA;200-240V AC:500mA |
| * Power cord connector: | standard IEC receptacle with built-in fuse holder |
| * Size: | 44.5mm * 482.6mm * 217mm |
